Briggs & Stratton 8919-0 - 4W108, 4,000 Watt Dayton

Model: 8919-0 - 4W108, 4,000 Watt Dayton

Save
 Part Not Listed?Part Not Listed?
product name

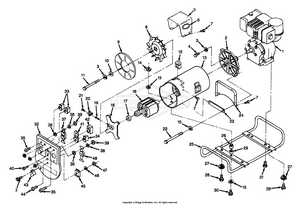

Replacement Parts For Model 4W108

...
...
2
Adapter casting BS-43873
...
3
WASHER, Lock BS-22129GS
...
4
Screw, 5/16"-24 x 3/4" long BS-22336
...
5
(C) WELD SHAFT BRAK BS-7043875YP
...
6
Dayton decal BS-70715
...
7
Screw (Taptite), No. 10-32 x 3/8" long BS-24489
...
8
Cooling fan BS-44331
...
9
CVR, FAN, PLSTC BS-44357GS
...
10
Washer, .34 x 1 x 10 BS-50190GS
...
11
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS
...
12
Bridge rectifier assembly BS-28293
...
13
Stator assembly BS-70720
...
14
Hex nut, 1/4"-20 BS-22127
...
15
CAP BS-5022097SM
...
16
Rotor assembly BS-68397
...
17
Rotor bearing BS-24049
...
18
Bearing carrier BS-44943
...
19
ASSY, BRUSH BS-A24044AGS
...
20
HLDR, BRUSH, UNIV BS-23877DGS
...
21
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
22
Stator bolt, 1/4"-20 x 9.75" long BS-44395H
...
23
Stator bolt bar BS-44338
...
24
(C) WELD PIVOT ARM BS-7043874YP
...
25
Cradle assembly BS-68395A
...
26
Vibration dampener BS-40479
...
27
Spring (plain) BS-23594
...
28
Screw (Taptite), 5/16"-18 x 1/2" long BS-24910
...
29
Spacer, 1/2" long BS-50396
...
30
SCREW BS-36955GS
...
31
Screw (Taptite) 3/8"-17 x 3/4" long BS-59637
...
32
Receptacle panel (silkscreened) BS-70732
...
33
Circuit breaker, 20 amp BS-66819
...
34
Circuit breaker, 10 amp BS-66820
...
35
Screw, No. 10-32 x 3/4" BS-36935
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
37
OUTLET, 20A,120V BS-68759GS
...
38
VALVE, FUEL SHUT OFF BS-84010414
...
39
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
40
Screw, M3-0.050 x 5mm long BS-70728
...
41
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
42
OUTLET, 12 V DC BS-66821GS
...
43
Grounding lug BS-25433
...
44
SCREW BS-797483
...
45
RECTIFIER, BATTERY CHARGE BS-65795GS
...
46
Lockwasher, No. 8 BS-22264
...
47
NUT, #8-32 BS-22471GS
...
48
Receptacle, 240VAC, 20 amp BS-68735
...
Battery charge cable BS-65787
...
Connector plug, 240 volts, 20 amperes. (for Ref. No. 48) BS-71744

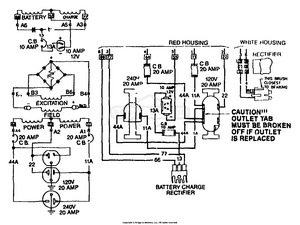

Wiring Diagram For Model 4W108

...

No Parts Available for this Schematic

...
...
...
