Briggs & Stratton 883243 - Murray, 26cc Leaf Blower Vac

Model: 883243 - Murray, 26cc Leaf Blower Vac

Save
 Part Not Listed?Part Not Listed?
product name

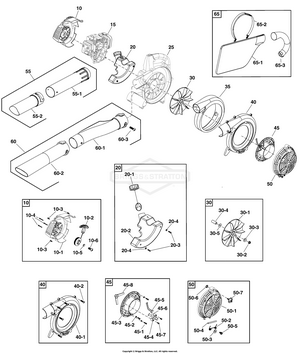

Blower Group (883243)

...
...
10
FAN COVER ASSEMBLY (Includes Ref. Nos. 10-1 through 10-6) BS-771939
...
20
FUEL TANK ASSEMBLY (Includes Ref. Nos. 20-1 through 20-4 BS-771943
...
30
IMPELLER ASSEMBLY (Includes Ref. Nos. 30-1 through 30-5) BS-771941
...
35
INNER INVOLUTE LINER ASSEMBLY BS-771947
...
40
BLOWER HOUSING ASSEMBLY, Rear (Includes Ref. Nos. 40-1 & 40-2) BS-771940
...
45
SAFETY WIRING ASSEMBLY (Includes Ref. Nos. 45-1 through 45-9) BS-771944
...
50
FAN COVER ASSEMBLY (Includes Ref. Nos. 50-1 through 50-7) BS-771939
...
50-7
KNOB, Air Filter (Not a serviceable part. Oder Ref. 50) BS-CM-HT00097G
...
55
MULCHING INTAKE ASSEMBLY (Includes Ref. Nos. 55-1 & 55-2) BS-771946
...
60
TUBE ASSEMBLY, Blower Outlet (Includes Ref. Nos. 60-1 through 60-3 BS-771942
...
65
MULCH BAG ASSEMBLY, Single Pack (Includes Ref. Nos. 65-1 through 65-3) BS-771945

Engine Group (883243)

...
...
10
COVER ASSEMBLY, Carburetor (Includes Ref. Nos. 10-1 through 10-5 BS-771949
...
10-1
KNOB BS-771950
...
10-2
COVER, Air Filter BS-771951
...
10-3
AIR CLEANER ELEMENT BS-771952
...
30
IGNITION UNIT (Includes Ref. Nos. 30-1 through 30-5 BS-771953
...
40
SPARK PLUG, NGK BPMR7A BS-771954
...
80
CARBURETOR BS-771955
...
110
INTAKE MANIFOLD ASSEMBLY (Includes Ref. Nos. 110-1 through 110-4 BS-771956
...
180
MUFFLER ASSEMBLY (Includes Ref. Nos. 180-1 through 180-3 BS-771957
...
430
STARTER PULLEY ASSEMBLY (Includes Ref. Nos. 430-1 through 430-4 BS-771958
...
...
...
