Briggs & Stratton 8801-0 - Pulley Dr. 5,000 Watt Niagara

Model: 8801-0 - Pulley Dr. 5,000 Watt Niagara

Save
 Part Not Listed?Part Not Listed?
product name

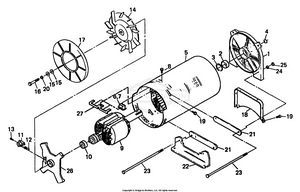

AC Generator No. 65718 - Repair Parts

...
...
1
SPACER 1.14 X 2.00 X .31 BS-5045088
...
2
BEARING BS-31971
...
3
GROMMET BS-5022816YP
...
4
RING, Snap - External BS-22122
...
5
STATOR ASSEMBLY BS-44961L
...
6
HOUSING, Receptacle BS-22694GS
...
7
RECEPTACLE - Red BS-43994
...
8
SCREW (Taptite) - No. 10-32 x 1/2" BS-24413
...
9
WELD, 48 SPINDLE BS-7045092YP
...
10
BEARING BS-24049
...
11
HLDR, BRUSH, UNIV BS-23877DGS
...
12
ASSY, BRUSH BS-A24044AGS
...
13
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
14
FAN, Cooling (Aluminum) BS-45660
...
16
MODULE BS-84009650
...
17
CVR, FAN, PLSTC BS-44357GS
...
18
(C) WELD PIVOT ARM BS-7043874YP
...
19
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
20
WASHER, Lock BS-22129GS
...
21
BAR, Stator Bolt BS-44338
...
22
SUPPORT, Rear Generator BS-45050
...
23
BOLT, Stator - 11-7/8" Long BS-44395B
...
24
CAP BS-5022097SM
...
25
NUT, Hex - 1/4"-20 BS-22127
...
26
CARRIER, Rear Bearing BS-44943
...
27
RETAINER, Receptacle BS-46079

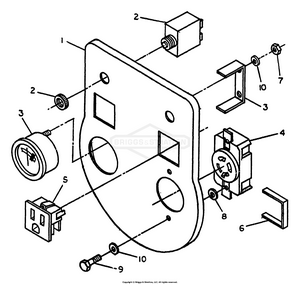

Control Panel No. 65717

...
...
1
PANEL, Front (Silkscreened) BS-65120E
...
2
BREAKER, Circuit - 15 Amp BS-56286
...
3
VOLTMETER - 0 to 150 VAC BS-45049
...
4
PLUG-120/240V TL20A BS-100522GS
...
5
SWITCH, PTO, DPDT BS-7022693YP
...
6
RETAINER, Parallel Blade Receptacle BS-27272
...
7
NUT, Hex - No. 6-32 BS-22188
...
8
WASHER (Nylon) BS-45805
...
9
SCREW, Pan Head Machine - No. 6-32 x 3/8" BS-36901
...
10
PULLEY, PUMP DRIVE BS-5022155SM

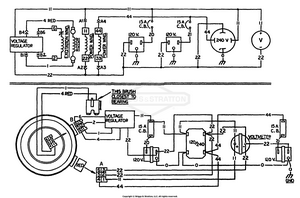

Electrical Schematic/Wiring Diagram No. 65721

...

No Parts Available for this Schematic

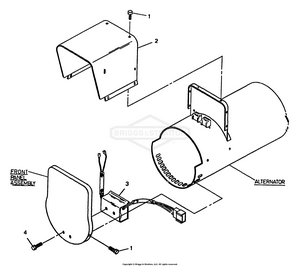

Shroud And Panel No. 42479

...
...
1
No. 10-32 x 3/8 Taptites BS-24489
...
2
(C) WELD SHAFT BRAK BS-7043875YP
...
3
REGULATOR, Voltage BS-42541
...
4
No. 10-32 x .25 Lg. Taptite BS-46852
...
...
...
