Briggs & Stratton 8796-0 - 5,000 Watt Niagara

Model: 8796-0 - 5,000 Watt Niagara

Save
 Part Not Listed?Part Not Listed?
product name

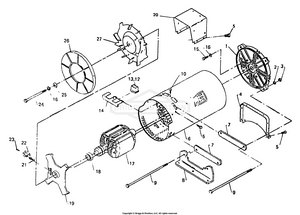

AC Generator No. 65703

...
...
1
HOUSING, Engine Adapter BS-43873
...
2
CAP BS-5022097SM
...
3
NUT, Hex - 1/4"-20 BS-22127
...
4
(C) WELD PIVOT ARM BS-7043874YP
...
5
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSEMBLY BS-64889
...
7
BAR, Stator Bolt BS-44338
...
8
SUPPORT, Rear Generator BS-44392B
...
9
BOLT, Stator BS-44395B
...
10
SCREW (Taptite) - No. 10-32 x 1/2" BS-24413
...
12
HOUSING, Receptacle BS-22694GS
...
13
HOUSING, Receptacle (Red) BS-43994
...
14
RETAINER, Receptacle Housing BS-46079
...
15
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
16
WASHER, Lock BS-22129GS
...
17
ROTOR ASSEMBLY BS-64888
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
20
(C) WELD SHAFT BRAK BS-7043875YP
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
NUT BS-5025254FS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN BS-44331

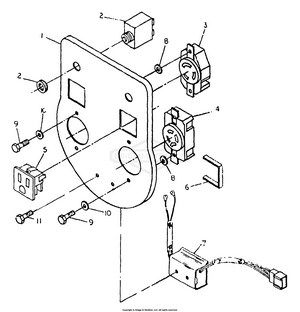

Control Panel No. 65704

...
...
1
PANEL, Front (Silkscreened) BS-65120C
...
2
BREAKER, Circuit - 15 Ampere BS-56286
...
3
RECEPTACLE - 120 VAC, 30 Ampere BS-37807
...
4
PLUG-120/240V TL20A BS-100522GS
...
5
SWITCH, PTO, DPDT BS-7022693YP
...
6
RETAINER, 120 VAC Receptacle BS-27272
...
7
ASSY, RGLTR, VOLT, PORTABLE BS-53440GS
...
8
WASHER - Nylon BS-45805
...
9
SCREW, Pan Head Machine - No. 6-32 x 3/8" BS-36901
...
10
PULLEY, PUMP DRIVE BS-5022155SM
...
11
SCREW (Taptite) - No. 10-32 x 1/4" BS-46852

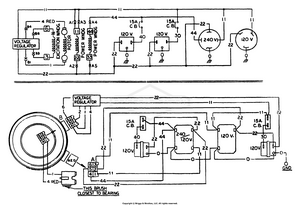

Electrical Schematic/Wiring Diagram No. 64899

...

No Parts Available for this Schematic

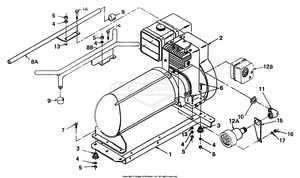

Mounting Base And Handle No. 65151

...
...
1
BASE, Mounting (Models 8796) BS-51967
...
2
ENGINE - Briggs & Stratton 11 HP (Models 8796) BS-64895
...
3
SPRING, Mounting BS-23594
...
4
WASHER, Lock BS-22129GS
...
5
NUT, 5/16 - 18 BS-22259GS
...
6
DECAL HYDROWALK (DD61) BS-5022531
...
7
CAPSCREW, Hex Head - 5/16"-18 x 1" BS-22125
...
8B
Brake Lever Weldment (Model 8796) BS-5043985
...
9
CAP, Plastic Not used on this model BS-27794
...
12B
MUFFLER, Exhaust - Briggs & Stratton 11 HP Engine (Model 8796) BS-65154
...
16
NUT, Hex - 1/4"-20 BS-22127
...
17
CAP BS-5022097SM
...
...
...
