product name

Briggs & Stratton 1920-0 - 3,400 PSI Craftsman

Model: 1920-0 - 3,400 PSI

Save
 Part Not Listed?Part Not Listed?
product name

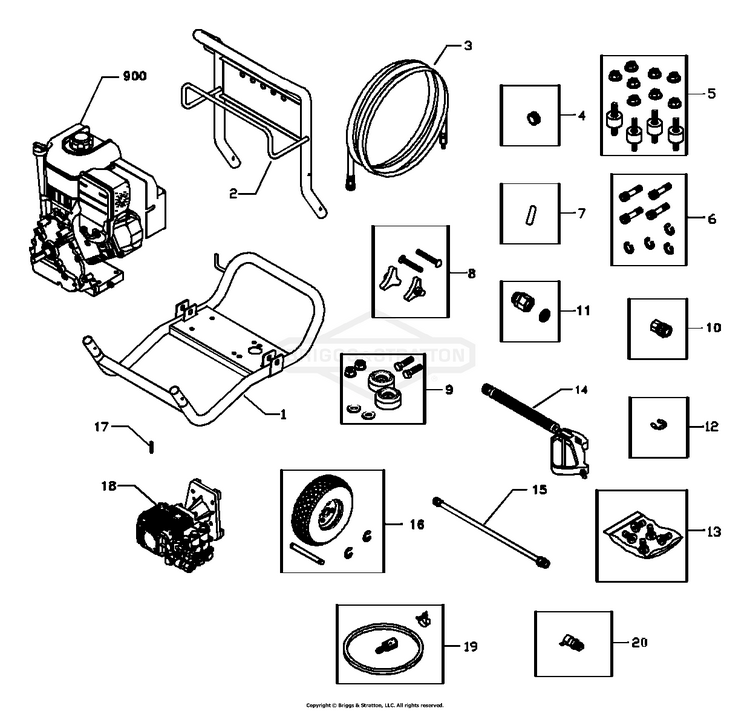

Main Unit

...
...
1
BASE BS-B193075GS
...
2
HANDLE BS-B196133GS
...
3
Hose BS-205734GS
...
4
GROMMET BS-30809GS
...
5
KIT, Engine Mounting Hardware BS-192134GS
...
6
KIT, Pump Mounting Hardware BS-192132GS
...
7
VINYL CAP BS-B2516GS
...
8
KIT, Handle Fastening BS-B2203GS
...
9
KIT, Vibration Mount BS-192310GS
...
10
FITTING BS-703824
...
11
KIT, Garden Hose Inlet BS-192135GS
...
12
E-RING BS-703977
...
13
KIT, Nozzle BS-B4847GS
...
14
GUN BS-704311
...
15
EXTENSION BS-190779GS
...
16
KIT, Wheel BS-192317GS
...
17
KEYSTOCK, 1/4X2 BS-703890
...
18
PUMP (See "Pump" and "Unloader") BS-318207GS
...
19
KIT, Chemical Hose/Filter BS-192796GS
...
20
THERMAL RELIEF BS-195016GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not Illustrated BS-192736GS
...
KIT, Decals Not Illustrated BS-192918GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
Garden Hose Quick Connect Optional Accessory Not Illustrated BS-7175187GS
...
KIT,QC,METRIC Optional Accessory Not Illustrated BS-312981GS
...
Rotating Brush Kit Optional Accessory Not Illustrated BS-7175199GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessory Not Illustrated BS-7175115GS
...
O Ring Repair Kit Optional Accessory Not Illustrated BS-7175116GS
...
Turbo Nozzle Optional Accessory Not Illustrated BS-7174400GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessory Not Illustrated BS-7174401GS
...
KIT, Hose Reel Optional Accessory Not Illustrated BS-192648GS
...
ACC, KIT, PUMP SAVER, 10.7-OZ B&S, EN/FR Optional Accessory Not Illustrated BS-6151
...
Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner Optional Accessory Not Illustrated BS-6159
...
CHEM-WASH DECK Optional Accessory Not Illustrated BS-100524GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessory Not Illustrated BS-6160
...
CHEM, WASH, DEGREASER, HD, 32 OZ Optional Accessory Not Illustrated BS-100526GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessory Not Illustrated BS-6160

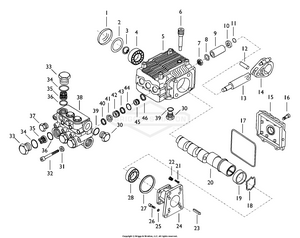

Pump

...
...
1
Cap BS-110B2126GS
...
2
Circlip BS-10887628PGS
...
3
Snap Ring BS-112B2126GS
...
4
Bearing BS-113B2126GS
...
5
Pump Body BS-109B2126GS
...
6
Oil Cap/Dipstick BS-11287628PGS
...
7
Nut BS-11087822PGS
...
8
Piston Washer BS-11187822PGS
...
9
Piston BS-123B2126GS
...
10
Spacer Disc BS-11687628PGS
...
11
KIT-PISTON BS-201B2126GS
...
12
Piston Pin BS-115B2126GS
...
13
Guiding Piston BS-120B2126GS
...
14
Con Rod BS-119B2126GS
...
15
Complete Rear Cover BS-118B2126GS
...
16
Screw BS-117B2126GS
...
17
O-Ring BS-116B2126GS
...
18
Snap Ring BS-12687628PGS
...
19
Bearing BS-12587628PGS
...
21
Screw BS-155B2327GS
...
22
Grub Screw BS-152B2126GS
...
23
KEYSTOCK, 1/4X2 BS-703890
...
24
Gas Engine Flange BS-150B2126GS
...
25
LOCKWASHER, SPLIT 3/8 BS-703454
...
26
Screw BS-23645GS
...
27
Bushing BS-151B2126GS
...
28
Seal BS-12187822PGS
...
30
Plug BS-10487628PGS
...
31
Washer BS-137B2126GS
...
32
Screw BS-10087822PGS
...
33
PLUG BS-190641GS
...
34
O-Ring BS-100B2327GS
...
35
Complete Valve BS-10287822PGS
...
36
O-Ring BS-10387822PGS
...
37
Plug BS-11193360PGS
...
38
Head BS-136B2126GS
...
39
O-Ring BS-10387628PGS
...
40
Support Ring BS-106B2126GS
...
41
Gasket BS-10587822PGS
...
42
Piston Guide BS-108B2126GS
...
43
Gasket BS-10393360PGS
...
44
O-Ring BS-10493360PGS
...
45
Rear Piston Guide BS-131B2126GS
...
46
Seal BS-16593360PGS
...
KIT,Valve Includes 6 of items 35 & 36 BS-193955GS
...
KIT-PISTON Includes 3 of item 8 BS-201B2126GS
...
KIT-OIL SEAL Includes 1 of items 1 & 17; 3 of item 46 BS-202B2126GS
...
KIT-WATER SEAL Includes 3 of items 41 & 44 BS-203B2126GS
...
KIT-SUPPORT RING Includes 3 of item 40 BS-204B2126GS

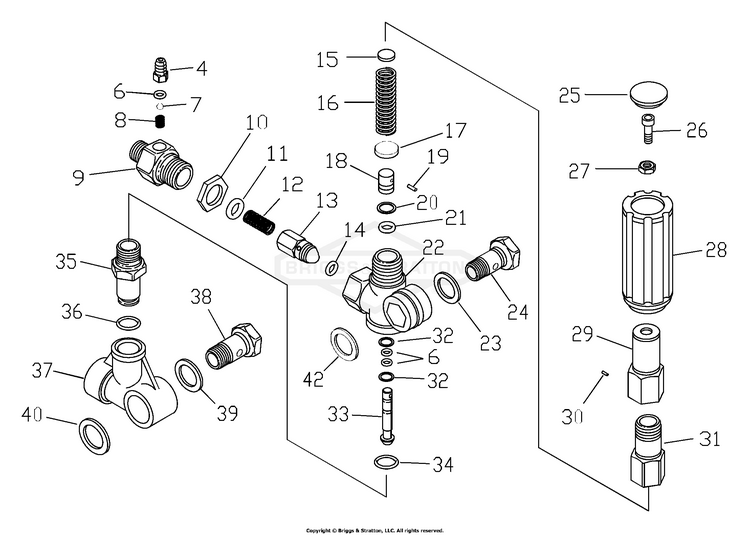

Unloader

...
...
0
Complete Unloader BS-153B2126GS
...
4
HOSE TAIL BS-190642GS
...
5
FITTING BS-703824
...
6
KIT, Chemical Injection BS-192914GS
...
7
BALL BS-211B2327GS
...
8
Spring BS-212B2327GS
...
9
Injector Body BS-213B2126GS
...
10
Injector Nut BS-215B2327GS
...
11
O-Ring BS-137B2327GS
...
12
Spring BS-216B2327GS
...
13
Plunger BS-217B2327GS
...
14
O-Ring BS-218B2327GS
...
15
Spacer Plate BS-220B2327GS
...
16
Spring BS-221B2327GS
...
17
Spring, Spacer Plate BS-222B2327GS
...
18
Upper Piston BS-219B2327GS
...
19
Pin BS-223B2327GS
...
20
Ring BS-224B2327GS
...
21
O-Ring BS-225B2327GS
...
22
Valve Housing BS-228B2327GS
...
23
Washer BS-227B2327GS
...
24
Inlet Bolt BS-226B2327GS
...
25
Plug BS-248B2327GS
...
26
Screw BS-155B2327GS
...
27
Nut BS-246B2327GS
...
28
Knob BS-245B2327GS
...
29
Housing BS-243B2327GS
...
30
Pin BS-244B2327GS
...
31
Spring Guide BS-242B2327GS
...
32
Ring BS-229B2327GS
...
33
Lower Piston BS-232B2327GS
...
34
O-Ring BS-234B2327GS
...
35
Piston Guide BS-233B2327GS
...
36
O-Ring BS-235B2327GS
...
37
Bypass Fitting BS-238B2327GS
...
38
Inlet Bolt BS-236B2327GS
...
39
Washer BS-237B2327GS
...
40
Washer BS-239B2327GS
...
42
Washer BS-230B2327GS
...
KIT, REPAIR, UNLDR Includes 1 of items 8,15,20,21,23,34,36,39,40,42; 3 of item 6; 2 of item 32 BS-250B2327GS
...
...
...
