Briggs & Stratton 1904-0 - 2,800 PSI Troy-Bilt

Model: 1904-0 - 2,800 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

Main Unit

...
...
1
BASE BS-P190156GS
...
2
HANDLE BS-P187602GS
...
3
ASSY, Billboard BS-192096GS
...
4
HOSE-PRESSURE BS-206192GS
...
5
KIT, Engine Mounting Hardware BS-192134GS
...
6
KIT, Pump Mounting Hardware BS-192131GS
...
7
GUN BS-190049GS
...
8
KIT, HNDL, FSTNNG, SRV BS-191429GS
...
9
KIT,Vibration Mount BS-192553GS
...
10
KIT,QC,METRIC BS-312981GS
...
11
KIT,QC,METRIC BS-312981GS
...
12
PUSHNUT BS-194062GS
...
13
KIT, NZZL, QC, SRV BS-191430GS
...
14
EXTENSION BS-190779GS
...
15
KIT,Wheel BS-192526GS
...
16
KEY BS-23139BGS
...
17
Assy, Pump (See "Pump") BS-202005GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not Illustrated BS-192097GS
...
KIT, Decals Not Illustrated BS-192554GS
...
BOTTLE, Oil Not Illustrated BS-100005

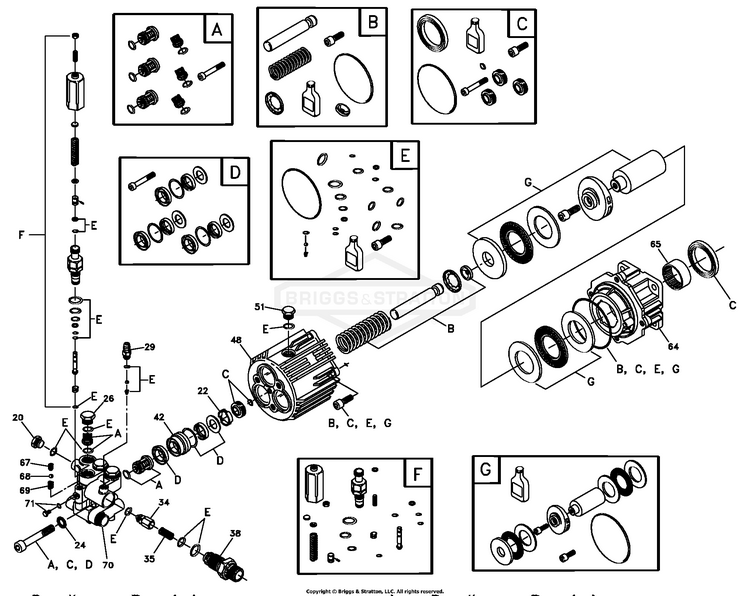

Pump

...
...
20
PLUG BS-190638GS
...
22
SPACER BS-190639GS
...
24
WASHER BS-190640GS
...
26
PLUG BS-190641GS
...
29
HOSE TAIL BS-190642GS
...
34
JET BS-190643GS
...
35
SPRING BS-190644GS
...
38
INJECTOR, Detergent BS-190645GS
...
42
PISTON, Guide BS-190646GS
...
48
HOUSING BS-190647GS
...
51
PLUG-DRAIN BS-203034GS
...
64
FLANGE BS-190649GS
...
65
ROLLER BEARING BS-190650GS
...
67
GRUB SCREW BS-190651GS
...
68
BALL BS-190652GS
...
69
SPRING BS-190653GS
...
70
PUMP HEAD BS-190654GS
...
71
GRUB SCREW & WASHER BS-190655GS
...
72
OIL BOTTLE BS-190656GS
...
A
KIT, CHECK VALVE Service kit, includes all parts shown within the box. BS-190657GS
...
B
KIT, PISTON SET Service kit, includes all parts shown within the box. BS-190658GS
...
C
KIT, SEAL OIL Service kit, includes all parts shown within the box. BS-190659GS
...
D
KIT, SEAL HIGH PRESSURE Service kit, includes all parts shown within the box. BS-190660GS
...
E
KIT, O-RINGS Service kit, includes all parts shown within the box. BS-190677GS
...
F
KIT, UNLOADER Service kit, includes all parts shown within the box. BS-190661GS
...
G
KIT, CAM & BEARING Service kit, includes all parts shown within the box. BS-190662GS
...
...
...
