Briggs & Stratton 1903-0 - 2,450 PSI Troy-Bilt

Model: 1903-0 - 2,450 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

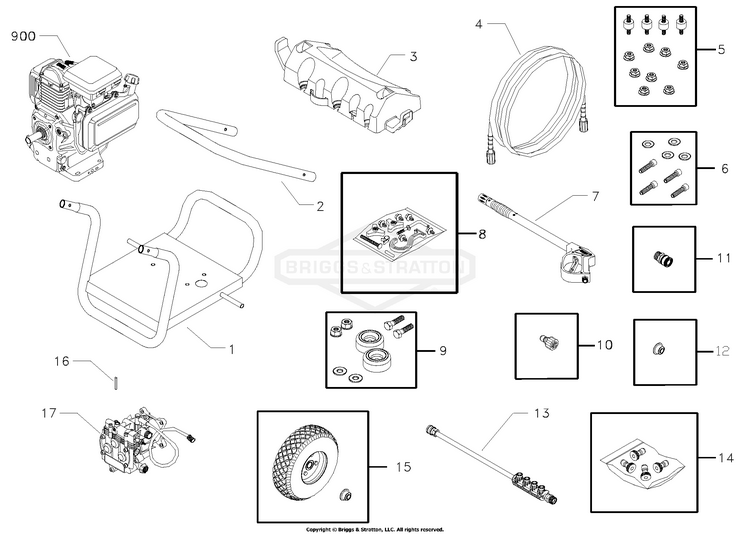

Main Unit

...
...
1
BASE BS-B190156GS
...
2
HANDLE BS-B187602GS
...
3
ASSY, Billboard BS-192088GS
...
4
HOSE BS-190249GS
...
5
KIT, Engine Mounting Hardware BS-192134GS
...
6
KIT, Pump Mounting Hardware BS-192131GS
...
7
GUN BS-190049GS
...
8
KIT, HNDL, FSTNNG, SRV BS-191429GS
...
9
KIT, Vibration Mount BS-192553GS
...
10
KIT,QC,METRIC BS-312981GS
...
11
KIT,QC,METRIC BS-312981GS
...
12
PUSHNUT BS-194062GS
...
13
EXTENSION BS-192199GS
...
14
KIT, Nozzle BS-197291GS
...
15
KIT, Wheel BS-192526GS
...
16
KEY BS-23139DGS
...
17
ASSY, Pump (see "Pump") BS-189943GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not Illustrated BS-192089GS
...
KIT, Tag, Safety Not Illustrated BS-192527GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
KIT, O-RING MAINT & NZZL CLNNG Not Illustrated BS-191922GS

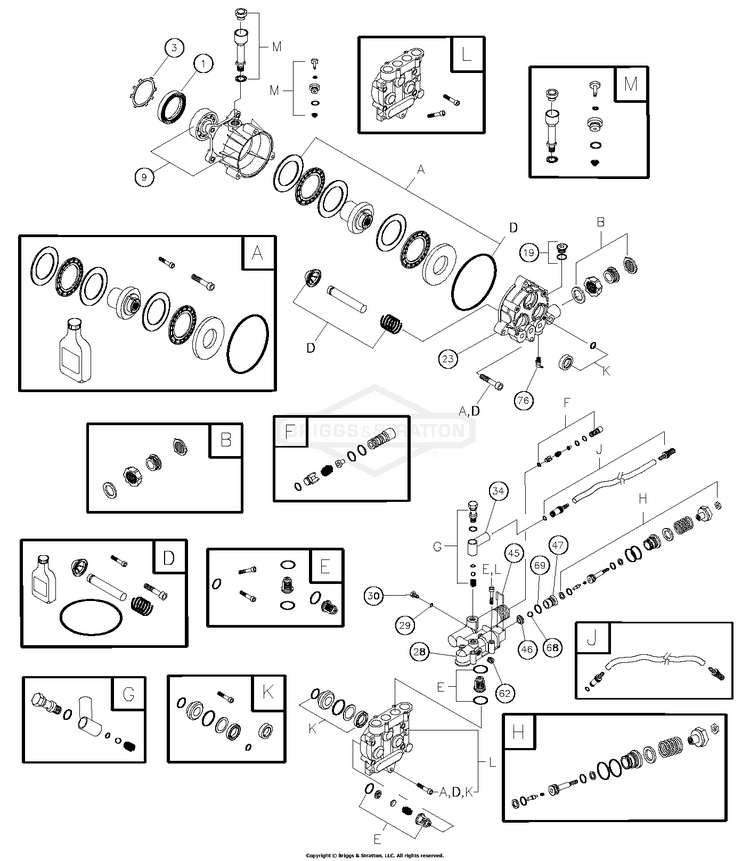

Pump

...
...
1
SEAL BS-190568GS
...
3
RETAINER RING BS-190569GS
...
9
ENGINE ADAPTER & BEARING BS-190671GS
...
19
CAP, Oil BS-190571GS
...
23
PISTON HOUSING BS-190573GS
...
28
MANIFOLD BS-190673GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
KIT, UNLOADER SEAT BS-193972GS
...
47
KIT, UNLOADER SEAT BS-193972GS
...
62
CAP BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE BS-190585GS
...
A
KIT, WOBBLE PLATE BEARING Service kit includes all parts shown within the box. BS-190672GS
...
B
KIT, WATER INLET Service kit includes all parts shown within the box. BS-190670GS
...
D
KIT, PISTON Service kit includes all parts shown within the box. BS-190590GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER Service kit includes all parts shown within the box. BS-190594GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit includes all parts shown within the box. BS-190595GS
...
L
KIT, HEAD BRASS Service kit includes all parts shown within the box. BS-190596GS
...
M
KIT, BREATHER TUBE Service kit includes all parts shown within the box. BS-190669GS
...
...
...
