Briggs & Stratton 1900-1 - 2,600 PSI Craftsman

Model: 1900-1 - 2,600 PSI

Save
 Part Not Listed?Part Not Listed?
product name

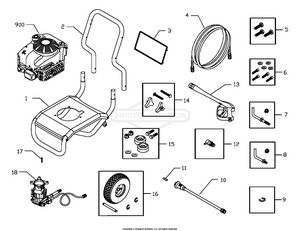

Main Unit

...
...
1
BASE BS-192393GS
...
2
HANDLE BS-E194719GS
...
3
ASSY, Billboard/Decal BS-192205GS
...
4
HOSE BS-190246GS
...
5
KIT, Engine Mounting Hardware BS-192133GS
...
6
KIT, Pump Mounting Hardware BS-192131GS
...
7
KIT, Hook BS-192309GS
...
8
KIT, Hook, Handle BS-194264GS
...
9
E-RING BS-703977
...
10
ASSY, Wand, Adjustable Nozzle BS-188792AGS
...
11
ORIFICE BS-94804GS
...
12
VALVE, Thermal Relief BS-208673GS
...
13
GUN BS-B3263GS
...
14
KIT, Handle Connector BS-B2203GS
...
15
KIT, Vibration Mount BS-192310GS
...
16
KIT, Wheel BS-192317GS
...
17
KEY BS-23139DGS
...
18
Assy, Pump, Complete (see "Pump" Illustration and Part List) BS-206376GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Items Not Illustrated BS-193942GS
...
KIT, Decals Items Not Illustrated BS-192319GS
...
OIL, Bottle Items Not Illustrated BS-AB3061BGS
...
Garden Hose Quick Connect Optional Accessories Not Illustrated BS-7175187GS
...
KIT,QC,METRIC Optional Accessories Not Illustrated BS-312981GS
...
Rotating Brush Kit Optional Accessories Not Illustrated BS-7175199GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessories Not Illustrated BS-7175115GS
...
O Ring Repair Kit Optional Accessories Not Illustrated BS-7175116GS
...
Turbo Nozzle Optional Accessories Not Illustrated BS-7174400GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessories Not Illustrated BS-7174401GS
...
KIT, Hose Reel Optional Accessories Not Illustrated BS-192648GS
...
ACC, KIT, PUMP SAVER, 10.7-OZ B&S, EN/FR Optional Accessories Not Illustrated BS-6151
...
Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner Optional Accessories Not Illustrated BS-6159
...
CHEM-WASH DECK Optional Accessories Not Illustrated BS-100524GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessories Not Illustrated BS-6160
...
CHEM, WASH, DEGREASER, HD, 32 OZ Optional Accessories Not Illustrated BS-100526GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessories Not Illustrated BS-6160

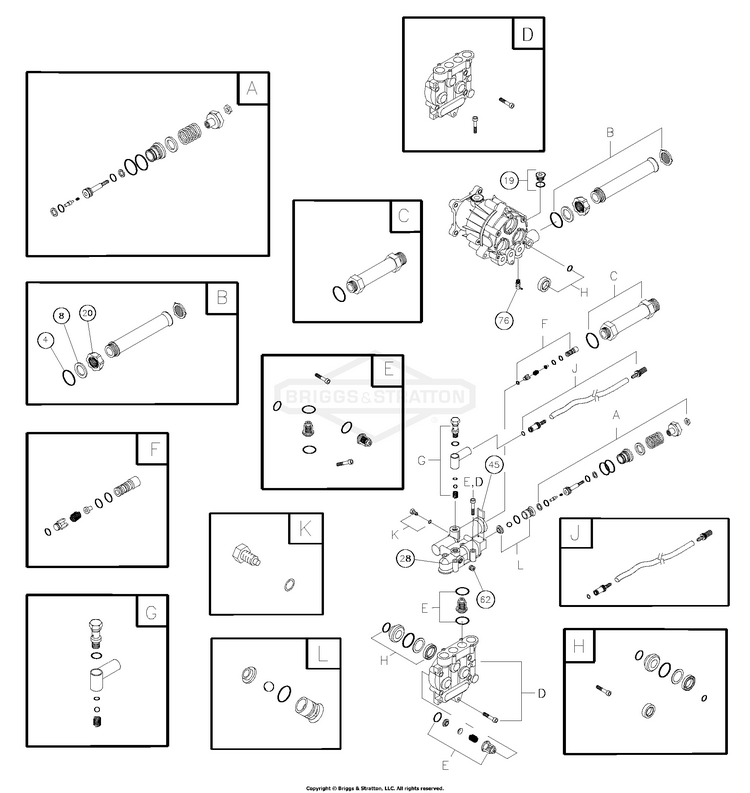

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (not shown) BS-190585GS
...
A
KIT, UNLOADER Items A - L are service kits and include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ANODIZED Items A - L are service kits and include all parts shown within the box. BS-190588GS
...
C
KIT, OUTLET, ANODIZED Items A - L are service kits and include all parts shown within the box. BS-190589GS
...
D
KIT, HEAD BRASS Items A - L are service kits and include all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Items A - L are service kits and include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Items A - L are service kits and include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Items A - L are service kits and include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Items A - L are service kits and include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Items A - L are service kits and include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Items A - L are service kits and include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Items A - L are service kits and include all parts shown within the box. BS-193972GS
...
...
...
