Briggs & Stratton 1673-0 - 580.767700, 2,700 PSI Craftsman

Model: 1673-0 - 580.767700, 2,700 PSI

Save
 Part Not Listed?Part Not Listed?
product name

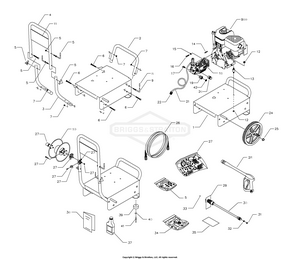

Main Unit

...
...
1
BASE BS-M190349GS
...
2
BUMPER BS-CB1982GS
...
3
SUPPORT, Handle BS-C190258GS
...
4
HANDLE BS-CB1983AGS
...
5
KIT, HNDL, FSTNNG, SRV BS-191433GS
...
6
BOLT, Carriage BS-B2043GS
...
7
NUT, Flange Lock BS-99583GS
...
8
CAP, Vinyl, Black BS-B2516GS
...
9
HOOK, Gun BS-B2150GS
...
10
REEL, Hose BS-186114GS
...
11
ASSEMBLY, Billboard, 1673 BS-190559GS
...
12
NUT, Flange Serrated BS-67989GS
...
13
MOUNT, Rubber Shock BS-21217GS
...
14
KEY BS-23139BGS
...
15
LOCKWASHER, Ribbed BS-92479GS
...
16
CAPSCREW, Socket Head BS-23707GS
...
17
VALVE, Thermal Relief BS-208673GS
...
18
Assy, Pump (See "Pump" illustration and parts list.) BS-202005GS
...
19
CONNECTER, Garden Hose BS-B3868AGS
...
20
ADAPTER, Hose to Hose BS-95457GS
...
21
HOSE, Chemical Clear BS-A1040EGS
...
22
FILTER-CHEM HOSE BS-709496
...
24
KIT,Wheel BS-193548GS
...
25
PUSHNUT BS-190146GS
...
26
HOSE-PRESSURE BS-206192GS
...
27
KIT, Hardware Hose Reel BS-186113GS
...
28
GUN, High Pressure BS-B3263GS
...
29
TAG, Nozzle Instructions BS-97566GS
...
30
ASSY, WAND, BAGGED, 1.05 BS-190937GS
...
31
O-RING, Hi Pressure BS-97837GS
...
32
SCREEN, Gun Inlet BS-B4224GS
...
33
NOZZLE, Yellow Replacement BS-21761GS
...
34
KIT, Maintenance, O-Ring BS-191922GS
...
35
CARD, Owners Registration BS-188039GS
...
37
OIL BS-AB3061BGS
...
38
MANUAL BS-190231GS
...
39
VIBE MOUNT, with Washer BS-191413GS
...
40
WASHER, Flat BS-71693GS
...
41
BLIND RIVET BS-188194GS
...
42
FILTER, Quick Disconnect BS-B2384GS
...
900
ENGINE BS-~NSP
...
KIT, Hose Reel (Includes Items 10 & 27) BS-192648GS
...
Garden Hose Quick Connect Optional Accessory Not Illustrated BS-7175187GS
...
KIT,QC,METRIC Optional Accessory Not Illustrated BS-312981GS
...
Rotating Brush Kit Optional Accessory Not Illustrated BS-7175199GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessory Not Illustrated BS-7175115GS
...
O Ring Repair Kit Optional Accessory Not Illustrated BS-7175116GS
...
Turbo Nozzle Optional Accessory Not Illustrated BS-7174400GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessory Not Illustrated BS-7174401GS
...
KIT, Hose Reel Optional Accessory Not Illustrated BS-192648GS
...
ACC, KIT, PUMP SAVER, 10.7-OZ B&S, EN/FR Optional Accessory Not Illustrated BS-6151
...
Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner Optional Accessory Not Illustrated BS-6159
...
CHEM-WASH DECK Optional Accessory Not Illustrated BS-100524GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessory Not Illustrated BS-6160
...
CHEM, WASH, DEGREASER, HD, 32 OZ Optional Accessory Not Illustrated BS-100526GS

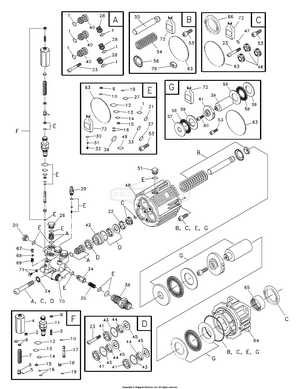

Pump

...
...
20
PLUG BS-190638GS
...
22
SPACER BS-190639GS
...
24
WASHER BS-190640GS
...
26
PLUG BS-190641GS
...
29
HOSE TAIL BS-190642GS
...
34
JET BS-190643GS
...
35
SPRING BS-190644GS
...
38
INJECTOR, Detergent BS-190645GS
...
42
PISTON, Guide BS-190646GS
...
48
HOUSING BS-190647GS
...
51
PLUG-DRAIN BS-203034GS
...
64
FLANGE BS-190649GS
...
65
ROLLER BEARING BS-190650GS
...
67
GRUB SCREW BS-190651GS
...
68
BALL BS-190652GS
...
69
SPRING BS-190653GS
...
70
PUMP HEAD BS-190654GS
...
71
GRUB SCREW & WASHER BS-190655GS
...
72
OIL BOTTLE BS-190656GS
...
A
KIT, CHECK VALVE Service kit includes all parts shown within the box. BS-190657GS
...
B
KIT, PISTON SET Service kit includes all parts shown within the box. BS-190658GS
...
C
KIT, SEAL OIL Service kit includes all parts shown within the box. BS-190659GS
...
D
KIT, SEAL HIGH PRESSURE Service kit includes all parts shown within the box. BS-190660GS
...
E
KIT, O-RINGS Service kit includes all parts shown within the box. BS-190677GS
...
F
KIT, UNLOADER Service kit includes all parts shown within the box. BS-190661GS
...
G
KIT, CAM & BEARING Service kit includes all parts shown within the box. BS-190662GS
...
...
...
