Briggs & Stratton 1671-1 - 580.767302, 2,400 PSI Craftsman

Model: 1671-1 - 580.767302, 2,400 PSI

Save
 Part Not Listed?Part Not Listed?
product name

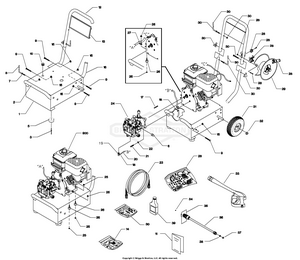

Main Unit

...
...
1
BASE BS-E190506GS
...
2
BUMPER BS-CB1982GS
...
3
BLIND RIVET BS-188194GS
...
5
VIBE MOUNT, with Washer BS-191413GS
...
6
CAP, Vinyl, Black BS-190537GS
...
7
HOOK, Gun BS-B2150GS
...
8
CAP, Vinyl, Black BS-B2516GS
...
9
BOLT, Carriage BS-B2043GS
...
10
GROMMET BS-30809GS
...
11
MANUAL BS-190821GS
...
12
HANDLE BS-CB1983AGS
...
13
DECALS/BILLBOARD BS-188258GS
...
14
KIT, Maintenance, O-Ring BS-191922GS
...
15
NUT, Flange Lock BS-99583GS
...
16
SUPPORT, Handle BS-C190258GS
...
17
KEY BS-23139DGS
...
18
CLAMP, Hose Band BS-48031BGS
...
19
VALVE, Thermal Relief BS-208673GS
...
20
HOSE, Thermal Drain BS-B3107GS
...
21
CAPSCREW, Socket Head BS-23707GS
...
22
WASHER, Conical Ribbed BS-92479GS
...
23
HOSE, High Pressure BS-B5689GS
...
24
ASSY, Complete Pump (See "Pump" illustration and parts list) BS-189943GS
...
25
NUT, Flange Serrated BS-67989GS
...
26
MOUNT, Rubber Shock BS-21217GS
...
27
CLAMP, Hose BS-B1232GS
...
28
KIT, Hardware Hose Reel BS-186113GS
...
29
REEL, Hose BS-186114GS
...
30
KIT, HNDL, FSTNNG, SRV BS-191433GS
...
31
WHEEL BS-209636GS
...
WHEEL BS-209636GS
...
32
PUSHNUT BS-194062GS
...
33
GUN, High Pressure BS-B3263GS
...
34
NOZZLE, White Replacement BS-94804GS
...
35
TAG, Nozzle Instructions BS-97566GS
...
36
WAND, Adjustable Nozzle BS-188792AGS
...
37
O-RING, Hi Pressure BS-97837GS
...
38
SCREEN, Gun Inlet BS-B4224GS
...
39
OIL BS-AB3061BGS
...
900
ENGINE BS-~NSP
...
KIT, Hose Reel (Includes Items 28 & 29) BS-192648GS
...
Garden Hose Quick Connect Optional Accessories Not Illustrated BS-7175187GS
...
KIT,QC,METRIC Optional Accessories Not Illustrated BS-312981GS
...
Rotating Brush Kit Optional Accessories Not Illustrated BS-7175199GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessories Not Illustrated BS-7175115GS
...
O Ring Repair Kit Optional Accessories Not Illustrated BS-7175116GS
...
Turbo Nozzle Optional Accessories Not Illustrated BS-7174400GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessories Not Illustrated BS-7174401GS
...
KIT, Hose Reel Optional Accessories Not Illustrated BS-192648GS
...
ACC, KIT, PUMP SAVER, 10.7-OZ B&S, EN/FR Optional Accessories Not Illustrated BS-6151
...
Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner Optional Accessories Not Illustrated BS-6159
...
CHEM-WASH DECK Optional Accessories Not Illustrated BS-100524GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessories Not Illustrated BS-6160
...
CHEM, WASH, DEGREASER, HD, 32 OZ Optional Accessories Not Illustrated BS-100526GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessories Not Illustrated BS-6160

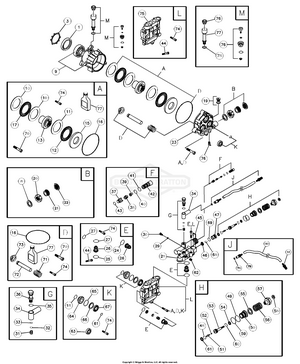

Pump

...
...
1
SEAL BS-190568GS
...
3
RETAINER RING BS-190569GS
...
9
ENGINE ADAPTER & BEARING BS-190671GS
...
19
CAP, Oil BS-190571GS
...
23
PISTON HOUSING BS-190573GS
...
28
MANIFOLD BS-190673GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
KIT, UNLOADER SEAT BS-193972GS
...
47
KIT, UNLOADER SEAT BS-193972GS
...
62
CAP BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE BS-190585GS
...
A
KIT, WOBBLE PLATE BEARING Item is a service kit and include all parts shown within the box. BS-190672GS
...
B
KIT, WATER INLET Item is a service kit and include all parts shown within the box. BS-190670GS
...
D
KIT, PISTON Item is a service kit and include all parts shown within the box. BS-190590GS
...
E
KIT, CHECK VALVES Item is a service kit and include all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Item is a service kit and include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Item is a service kit and include all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER Item is a service kit and include all parts shown within the box. BS-190594GS
...
J
KIT, CHEMICAL HOSE Item is a service kit and include all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Item is a service kit and include all parts shown within the box. BS-190595GS
...
L
KIT, HEAD BRASS Item is a service kit and include all parts shown within the box. BS-190596GS
...
M
KIT, BREATHER TUBE Item is a service kit and include all parts shown within the box. BS-190669GS
...
...
...
