Briggs & Stratton 1666-0 - 1,000 Watt Snapper

Model: 1666-0 - 1,000 Watt Snapper

Save
 Part Not Listed?Part Not Listed?
product name

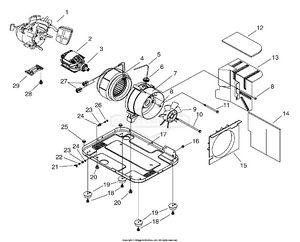

Main Unit (Part 1)

...
...
2
ROTOR BS-187378GS
...
3
BRG BS-187411GS
...
4
STATOR BS-187379GS
...
5
LEAD, GREEN BS-187430GS
...
6
BUSHING, LEAD WIRE, G790B BS-187409GS
...
7
RBC, 1K BS-187381GS
...
8
SCREW, SELF TAP, M6-12 BS-187399GS
...
9
FAN, COOLING BS-187382GS
...
10
BOLT, RTR BS-187388GS
...
11
BOLT, STATOR BS-187389GS
...
12
INSLTN, HEAT SEALED, #1 BS-187405GS
...
13
MFFLR, SEALED BS-187384GS
...
14
INSLTN, HEAT SEALED, #2 BS-187407GS
...
15
DUCT,AIR BS-187403GS
...
16
PHMS, M6-1.0,W/L/FW BS-187392GS
...
17
BASE, GEN BS-187383GS
...
18
BOLT, FLNG, M6-1.0 X 10 BS-187390GS
...
19
MNT, VIBR BS-187385GS
...
20
HHCS, FLNG, M8-1.25 X 12 BS-187427GS
...
21
NUT, WING, M5 X 0.8 BS-187424GS
...
22
NUT, M5 X 0.8 BS-187423GS
...
23
WSHR, LOCK BS-187419GS
...
24
WSHR, FLAT BS-187420GS
...
25
NUT, M8-1.25, FLANGE BS-187401GS
...
26
PHMS, M5-0.8 X 20 BS-187415GS
...
27
CNNCTR BS-187413GS
...
28
SCREW (ENGINE MOUNT) BS-711487
...
29
STND, ENG BS-187431GS

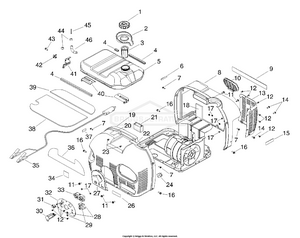

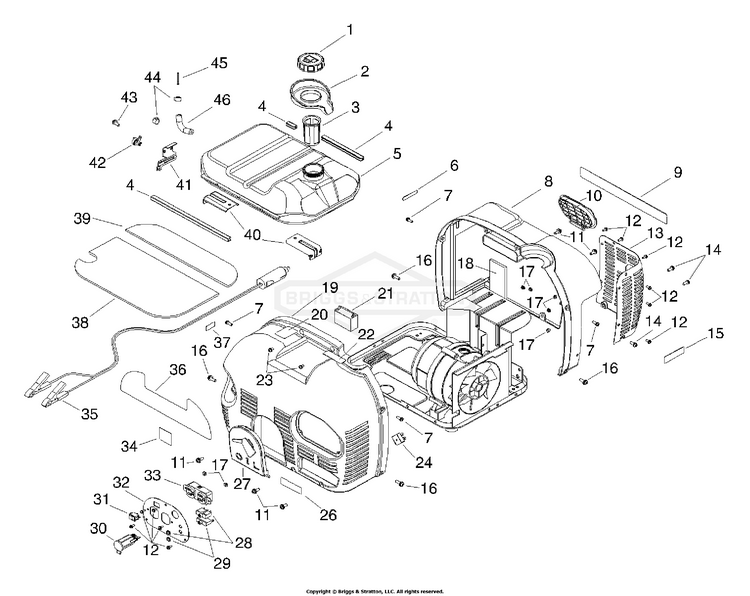

Main Unit (Part 2)

...
...
1
CAP, FUEL BS-187436GS
...
2
PACKING,TANK BS-187439GS
...
3
STRAINER-FUEL BS-710065
...
4
U-PACKING BS-187769GS
...
5
TANK-FUEL BS-199733GS
...
6
DECAL, CHOKE BS-187766GS
...
7
BOLT, COVER (M5-16) BS-187756GS
...
8
HSG, GEN, MFFLR BS-187832GS
...
9
DECAL, WARNING BS-190200GS
...
10
COVER, SPARK PLUG BS-187772GS
...
11
BOLT, COVER (M6-16) BS-187757GS
...
12
PHMS, M4-12 W/FW BS-187760GS
...
13
CVR, MFFLR,GEN BS-187435GS
...
14
BOLT, MFFLR CVR (M6-16) BS-187775GS
...
15
DECAL CAUTION HOT BS-187768GS
...
16
BOLT, COVER (M6-20) BS-187774GS
...
17
NUT, M4X0.6 W/FW BS-187761GS
...
18
INSLTN, MFFLR BS-187463GS
...
19
HSG, GEN BS-187833GS
...
20
DECAL, EMISSIONS BS-~NSP
...
21
CONDENSER, 300V BS-187457GS
...
22
DECAL, CAUTION FUEL BS-187765GS
...
23
BOLT, COVER (M5-10) BS-187759GS
...
24
DIODE, BRIDGE BS-187462GS
...
26
DECAL, GEN, SNAPPER BS-190089GS
...
27
COVER, OIL FILL BS-187773GS
...
28
CB, DC BS-187460GS
...
29
CB, 8A, 125V BS-187454GS
...
30
OUTLET,ACCESSORY DC BS-187873GS
...
31
SWITCH, ENG, ON/OFF BS-187450GS
...
32
CPNL BS-187812GS
...
33
RECPTCL, 15A, 125V BS-187456GS
...
34
DECAL, CAUTION OIL BS-187763GS
...
35
CABLE, BATTERY CHARGE BS-187876GS
...
36
DECAL, MODEL BS-190201GS
...
37
DECAL, FUEL SHUTOFF BS-187764GS
...
38
TANK-FUEL BS-199733GS
...
39
TANK-FUEL BS-199733GS
...
40
BRKT,TANK, FUEL BS-187442GS
...
41
BRACKET - MOUNTING BS-711546
...
42
VALVE- FUEL SHUT OFF BS-711547
...
43
SCREW BS-711548
...
44
CLAMP, HOSE BS-711549
...
45
FILTER - FUEL BS-711550
...
46
HOSE, FUEL BS-187578GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
MANUAL, Owners Not Illustrated BS-196735GS
...
MANUAL, Operator's Not Illustrated BS-279775WST

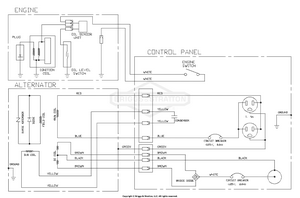

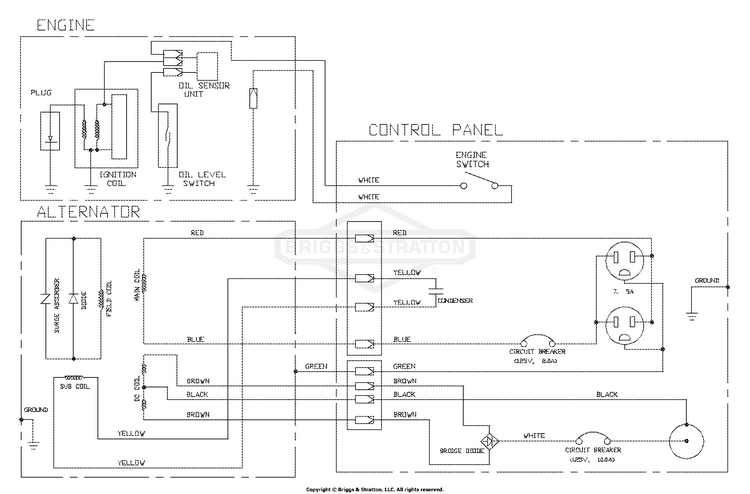

Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
