product name

Briggs & Stratton 1545-0 - 580.767300, 2,400 PSI Craftsman

Model: 1545-0 - 580.767300, 2,400 PSI

Save
 Part Not Listed?Part Not Listed?
product name

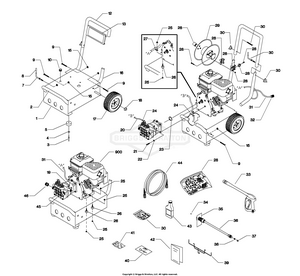

Main Unit

...
...
1
BASE BS-EB5721
...
2
BUMPER BS-B1982GS
...
3
BLIND RIVET BS-188194
...
4
WASHER, Flat BS-71693
...
5
VIBE MOUNT, with Washer BS-191413GS
...
7
HOOK, Gun BS-B2150GS
...
8
CAP, Vinyl, Black BS-B2516GS
...
9
BOLT, Carriage BS-B2043GS
...
10
GROMMET BS-30809GS
...
12
HANDLE BS-B1983GS
...
13
DECALS/BILLBOARD, 1545-0 BS-188258
...
15
NUT, Lock BS-99583GS
...
16
SUPPORT, Handle BS-CB1981GS
...
17
WHEEL BS-209636GS
...
18
PUSHNUT, 5/8" BS-75402CGS
...
19
CLAMP, Hose 13/32" BS-48031GGS
...
20
HOSE, Thermal Drain BS-B3107GS
...
21
CAPSCREW, Socket Head BS-23707GS
...
22
WASHER, Lock BS-92479GS
...
23
O-RING, Engine Adapter BS-B2218GS
...
24
CLAMP, Hose Band BS-48031BGS
...
25
NUT, Hex Locking Flange M8 BS-67989GS
...
26
MOUNT, Rubber Shock BS-21217GS
...
27
CLAMP, Hose BS-B1232GS
...
28
KIT, Hardware Hose Reel BS-186113GS
...
29
REEL, Hose BS-186114GS
...
30
KIT, Handle Hardware BS-187978GS
...
31
HOSE-CHEMICAL BS-705076
...
32
FILTER-CHEM HOSE BS-709496
...
33
GUN BS-704312
...
34
DECAL, Ignition BS-5021761
...
35
TAG, Nozzle Instructions BS-97566GS
...
36
WAND-ADJUSTABLE BS-205015CGS
...
37
O-RING, Hi Pressure BS-97837GS
...
38
SCREEN, Gun Inlet BS-B4224GS
...
39
HANGER, Hose, Gun, Jug BS-B2168AGS
...
40
KIT, Maintenance, O-Ring BS-191922GS
...
41
KIT, Maintenance, O-Ring BS-191922GS
...
42
MANUAL BS-187958
...
43
BOTTLE, Oil BS-100005
...
44
HOSE ASSEMBLY BS-84006753
...
45
PUMP BS-317054GS
...
46
TRANSAXLE BS-84010384
...
900
ENGINE BS-~NSP
...
--
KIT, Hose Reel Includes Items 28 & 29 BS-192648GS
...
--
Garden Hose Quick Connect Optional Accessory Not Illustrated BS-7175187GS
...
--
KIT,QC,METRIC Optional Accessory Not Illustrated BS-312981GS
...
--
Rotating Brush Kit Optional Accessory Not Illustrated BS-7175199GS
...
--
25' Replacement Hose Optional Accessory Not Illustrated BS-7175115
...
--
O Ring Repair Kit Optional Accessory Not Illustrated BS-7175116
...
--
Turbo Nozzle Optional Accessory Not Illustrated BS-7174400GS
...
--
HOSE, 4000PSI, 3/8" x 25' Optional Accessory Not Illustrated BS-7174401GS
...
--
KIT, Hose Reel Optional Accessory Not Illustrated BS-192648GS
...
--
Pump Saver Optional Accessory Not Illustrated BS-7174403
...
--
Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner Optional Accessory Not Illustrated BS-6159
...
--
CHEM-WASH DECK Optional Accessory Not Illustrated BS-100524GS
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessory Not Illustrated BS-6160
...
--
CHEM, WASH, DEGREASER, HD, 32 OZ Optional Accessory Not Illustrated BS-100526GS

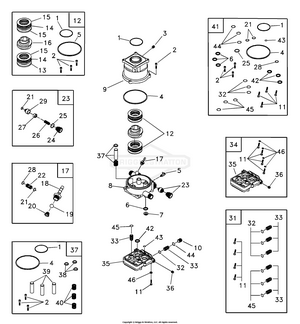

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
VALVE, 1-5 PSI BS-B5710GS
...
4
O-RING, Housing Seal BS-97835GS
...
5
VALVE, Thermal Relief BS-208673GS
...
6
SEAL, Oil Piston BS-93680GS
...
7
SPACER, Pilot BS-97831GS
...
8
HOUSING, Piston BS-B2702GS
...
9
ADAPTER, Engine BS-B4813GS
...
10
CAP, Outlet Port BS-97841GS
...
11
Nylon Roller BS-5040946
...
12
KIT, CAM, AXIAL, SRV Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185715GS
...
17
KIT, CHEM INJECT Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185287GS
...
23
KIT, UNLOADER Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-187879GS
...
31
KIT, CHECK VALVES Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185712GS
...
34
KIT, HEAD BRASS EG Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185531GS
...
37
KIT, PISTON & SPRING Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185713GS
...
41
KIT, O-RING/SEAL 2300 Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185714GS
...
...
...
