Briggs & Stratton 1431-5 - 2,400 PSI Craftsman

Model: 1431-5 - 2,400 PSI

Save
 Part Not Listed?Part Not Listed?
product name

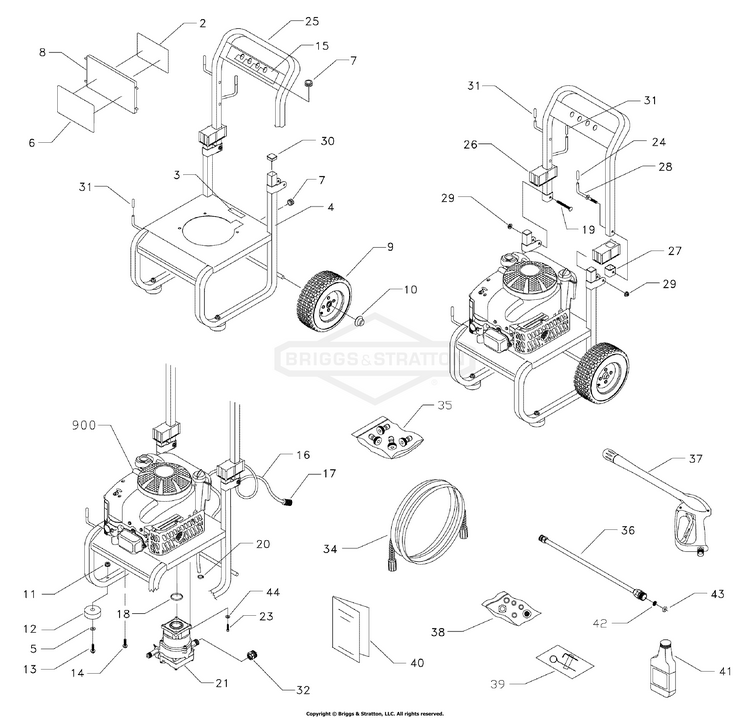

Main Unit

...
...
2
DECAL, Instructions BS-B1932GS
...
3
DECAL, 1-800 Number BS-96307GS
...
4
BASE, Polo Green Powder Coated BS-EB5654GS
...
5
Washer, .34 x 1 x 10 BS-50190GS
...
6
DECAL, UNIT, PW, 01433, SRS BS-B5670GS
...
7
GROMMET BS-30809GS
...
8
BILLBOARD, Plastic BS-B1631BGS
...
9
WHEEL BS-209636GS
...
10
PUSHNUT, 5/8" BS-75402CGS
...
11
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
12
VIBE MOUNT, with Washer BS-191413GS
...
13
HHCS, M8-1.25 X 55 BS-39288GS
...
14
TAPTITE BS-75246GS
...
15
DECAL, 4 QD Nozzles BS-B4163GS
...
16
HOSE-CHEMICAL BS-705076
...
17
FILTER-CHEM HOSE BS-709496
...
18
O-RING, Engine Adapter BS-B2218GS
...
19
BOLT, Carriage BS-31669GS
...
20
CLAMP, Hose 13/32" BS-48031GGS
...
21
PUMP (See pages 18 & 19) BS-~NSP
...
23
CAPSCREW, Socket Head BS-23707GS
...
24
CAP, Vinyl Black BS-B1460GS
...
25
HNDL, PWDR CT, POLO GRN BS-EB5676GS
...
26
COVER, Hinge BS-B1779GS
...
27
END CAP, Tube BS-B2347GS
...
28
HOOK, Square Neck Gun BS-B2759GS
...
29
NUT BS-194005GS
...
30
CAP PLUG, Tubing BS-46476GS
...
31
CAP, Vinyl, Black BS-B2516GS
...
32
TRANSAXLE BS-84010384
...
34
HOSE ASSEMBLY BS-84006753
...
35
KIT, Nozzles QD BS-B5646GS
...
36
WAND, Extension BS-B3858
...
37
GUN BS-704312
...
38
KIT, Maintenance, O-Ring BS-191922GS
...
39
KIT, Nozzle, Cleaning BS-B2509
...
40
MANUAL-OPERATOR BS-B5658GS
...
41
BOTTLE, Oil BS-100005
...
42
SCREEN, Gun Inlet BS-B4224GS
...
43
O-RING, Hi Pressure BS-97837GS
...
44
WASHER, Lock BS-92479GS

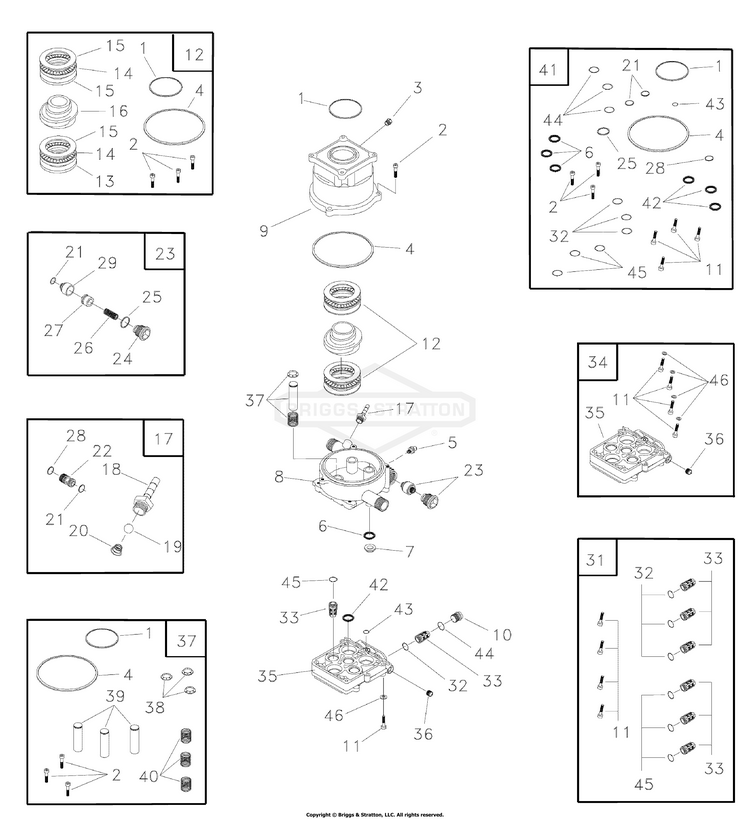

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
VALVE, 1-5 PSI BS-B5710GS
...
4
O-RING, Housing Seal BS-97835GS
...
5
VALVE, Thermal Relief BS-208673GS
...
6
SEAL, Oil Piston BS-93680GS
...
7
SPACER, Pilot BS-97831GS
...
8
HOUSING, Piston BS-B2702GS
...
9
ADAPTER, Engine BS-B4813GS
...
10
CAP, Outlet Port BS-97841GS
...
11
Nylon Roller BS-5040946
...
12
KIT, AXIAL CAM BS-185710GS
...
17
KIT, CHEM INJECT BS-185287GS
...
23
KIT, UNLOADER 2300 BS-185711
...
31
KIT, CHECK VALVES BS-185712GS
...
34
KIT, HEAD BRASS EG BS-185531GS
...
37
KIT, PISTON & SPRING BS-185713GS
...
41
KIT, O-RING/SEAL 2300 BS-185714GS
...
...
...
