product name

Briggs & Stratton 1429-0 - 580.768210, 2,000 PSI Craftsman

Model: 1429-0 - 580.768210, 2,000 PSI

Save
 Part Not Listed?Part Not Listed?
product name

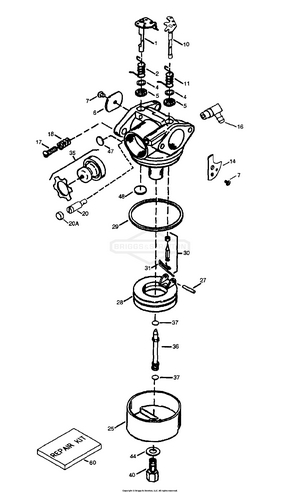

Engine, 5.5 HP (Carburetor)

...
...
0
Carburetor BS-640276
...
1
Throttle Shaft & Lever Assembly BS-631615
...
2
Throttle Return Spring BS-631767
...
4
Dust Seal Washer BS-631184
...
5
Dust Seal BS-631183
...
6
Throttle Shutter BS-640070
...
7
Shutter Screw BS-650506
...
10
Choke Shaft & Lever Assembly BS-630973
...
11
Choke Return Spring BS-632045
...
14
Choke Shutter BS-632790
...
16
Fuel Fitting BS-631807
...
17
Throttle Crack Screw/Idle Speed Screw BS-651025
...
18
Tension Spring BS-630766
...
20
Idle Restrictor Screw BS-640027
...
20A
Idle Restrictor Screw Cap BS-640053
...
25
Float Bowl BS-631867
...
27
Float Shaft BS-631024
...
28
Float BS-632019
...
29
Float Bowl "O" Ring BS-631028
...
30
Inlet Needle, seat & Clip BS-631021
...
31
Spring Clip BS-631022
...
35
Primer Bulb/Retainer Ring BS-36045A
...
36
Main Nozzle Tube BS-632745
...
37
"O" Ring, Main Nozzle Tube BS-632547
...
40
High Speed Bowl Nut BS-640032
...
44
Bowl Nut Washer BS-27110A
...
47
Welch Plug, Idle Mixture Well BS-630748
...
48
Welch Plug, Atmospheric Vent BS-631027
...
60
Repair kit BS-632760

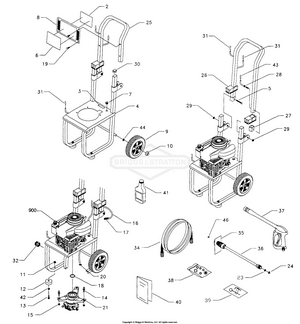

Main Unit

...
...
2
DECAL, Start Instructions BS-B5673
...
3
DECAL, 1-800 Number BS-96307GS
...
4
BASE, VSPW, PWDR CT, PL GRN BS-EB3307GS
...
5
CARRIAGE BOLT BS-B3085GS
...
6
DECAL, Unit BS-B5667
...
7
GROMMET BS-30809GS
...
8
BILLBOARD, VSPW, SRS BS-B1786AGS
...
9
TIRE, Black Mag BS-21206GS
...
10
PUSHNUT BS-194062GS
...
11
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
12
VIBE MOUNT, with Washer BS-191413GS
...
13
HHCS, M8 - 1.25 x 40 BS-57821
...
14
STUD, Double Ended BS-B1735GS
...
15
NUT, with Washer BS-B1880GS
...
16
HOSE-CHEMICAL BS-705076
...
17
FILTER-CHEM HOSE BS-709496
...
18
SEAL, Engine Donut BS-98300GS
...
19
CLIP BS-B1797GS
...
20
CLAMP, Hose 13/32" BS-48031GGS
...
21
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
23
SCREEN, Gun Inlet BS-B4224GS
...
24
O-RING, Hi Pressure BS-97837GS
...
25
HNDL, PWDR CT, POLO GRN BS-EB3330GS
...
26
COVER, Hinge BS-B2791GS
...
27
CAP, End BS-B2790GS
...
28
HOOK, Chemical Bottle BS-B2759AGS
...
29
NUT BS-194005GS
...
30
CAP, Plug BS-81895GS
...
31
CAP, Vinyl, Black BS-B2516GS
...
32
TRANSAXLE BS-84010384
...
34
HOSE ASSEMBLY BS-84006753
...
35
TAG, Nozzle Instructions BS-97566GS
...
36
WAND, Adjustable Nozzle BS-188792AGS
...
37
GUN BS-704312
...
38
KIT, Maintenance, O-Ring BS-191922GS
...
39
KIT, Nozzle, Cleaning BS-B3708
...
40
MANUAL-OPERATOR BS-B5655GS
...
41
OIL, Engine BS-~NSP
...
42
Washer, .34 x 1 x 10 BS-50190GS
...
43
CAP, Vinyl Black BS-B1460GS
...
44
WASHER, Flat BS-49808GS
...
46
NOZZLE, Replacement BS-94804GS
...
900
ENGINE, Tec, Lev120, 5.5 HP BS-~NSP

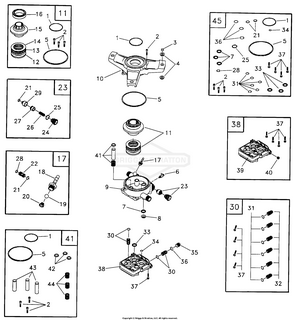

Pump

...
...
1
SEAL, Engine Donut BS-98300GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
SLEEVE, Grommet Spacer BS-96795GS
...
4
BUSHING, Rubber Mount BS-21429GS
...
5
O-RING, Housing Seal BS-97835GS
...
6
VALVE, Thermal Relief BS-208673GS
...
7
SEAL, Oil Piston BS-93680GS
...
8
SPACER, Pilot BS-97831GS
...
9
HOUSING, Piston BS-B2702GS
...
10
ADAPTER, Engine BS-98227GS
...
11
KIT, AXIAL CAM SERV Service Kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B2310GS
...
17
KIT, CHEM INJECT Service Kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185287GS
...
23
KIT, UNLOADER Service Kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185711
...
30
KIT, CHECK VALVES Service Kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B3513GS
...
33
SEAL, Oil Piston BS-B3286GS
...
34
O-RING, Hi Pressure BS-97837GS
...
35
CAP, Outlet Port BS-97841GS
...
36
O-RING, Cap BS-97840GS
...
37
Nylon Roller BS-5040946
...
38
KIT, HEAD CASTING SFG Service Kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B4186GS
...
41
KIT, PISTON & SPRING Service Kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B2312GS
...
45
KIT, O-RING/SEAL SERV Service Kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B1933
...
...
...
