Briggs & Stratton 1311-0 - 3,000 Watt Lowes

Model: 1311-0 - 3,000 Watt Lowes

Save
 Part Not Listed?Part Not Listed?
product name

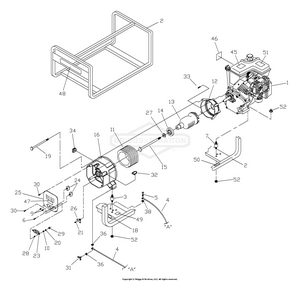

3000 Watt Generator

...
...
1
ENGINE BS-~NSP
...
2
CRDL, 3000, BLK BS-B91018BGS
...
3
MOUNT-VIBRATION BS-194153GS
...
4
WIRE, Ground BS-195373GS
...
5
SCREW BS-313085GS
...
6
SCREW, PHM M4 - 0.7 x 10 BS-75475
...
7
MOUNT,Vibration BS-85651GS
...
9
NUT, Pal BS-99617
...
10
WASHER BS-38150GS
...
11
ASSY, STATOR, 3000DPE70 BS-B2817JGS
...
12
HSNG, ENG, FML BS-66365FGS
...
13
ASSY, Rotor BS-B2816JGS
...
14
BEARING BS-65791GS
...
15
FLOOR PLATE BS-5047480B
...
16
CARRIER, Rear Bearing BS-66825B
...
18
DECAL, Ground BS-B4986GS
...
19
HHCS, M6-1.0 x 100, Sems BS-86308GGS
...
20
WASHER, No. 8 Lock BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
PNL, CNTRL, 3000 BS-B2819GS
...
26
RECTIFIER, Brush & Bridge BS-91825
...
27
WASHER, M8 Flat BS-96796GS
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
32
GROMMET, Plastic RBC BS-84242GS
...
33
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
34
GROMMET, RUBBER BS-67022GS
...
38
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
45
DECAL, Danger (English) BS-93639
...
46
DECAL, Danger (Spanish) BS-93640
...
47
DECAL, PNL, CNTRL BS-98319GS
...
48
DECAL, UNIT, GEN, 3000 BS-B4346GS
...
49
DECAL, 1-800 Number BS-20566GS
...
50
DECAL, Hot Muffler BS-77816GS
...
51
DECAL, Start Instructions BS-99541
...
52
NUT, Hex Locking Flange M8 BS-67989GS

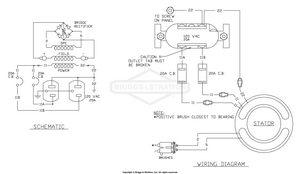

Electrical Schematic/Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
