product name

Briggs & Stratton 1279-1 - 580.760001, 1,300 PSI Craftsman

Model: 1279-1 - 580.760001, 1,300 PSI

Save
 Part Not Listed?Part Not Listed?
product name

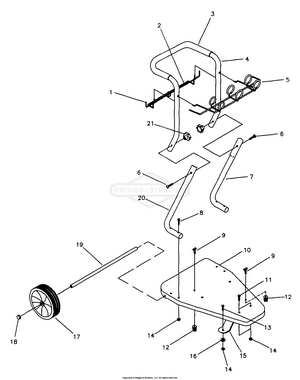

Handle & Base Assembly

...
...
1
CAP, VINYL, 3/16 X 1/2 BS-A1721GS
...
2
HLDR, HOSE/BOTTLE BS-21467GS
...
3
HANDLE, Grip BS-21520
...
4
HNDL, PW CART BS-99851GS
...
5
Belt Ground Drive BS-5021176
...
6
BOLT, CRRG, M6-1.0 X 40 BS-21892GS
...
7
LEG, LOWER, LEFT BS-99934GS
...
8
DECAL, Operation BS-5021496
...
9
DECAL, Hydro Adjustment BS-5021498
...
10
BASE, CART, PW BS-99682GS
...
11
SCREW, M6 x 12 BS-43116GS
...
12
DECAL, Hydro-Drive Clutch BS-5021497
...
13
HANDLE BS-84010594
...
14
NUT, NYLOK M6 - 1.0 BS-A1703GS
...
15
FOOT, WIDE MNT CART BS-21564GS
...
16
MOUNT, Rubber Donut BS-87841GS
...
17
BEARING, FLANGE BS-5021499SM
...
18
PUSHNUT, 10MM DIA BS-75402AGS
...
19
CLAMP BS-5021500FS
...
20
LEG, LOWER, RIGHT BS-99857GS
...
21
KNOB, M6 X 1.0 BS-21865GS

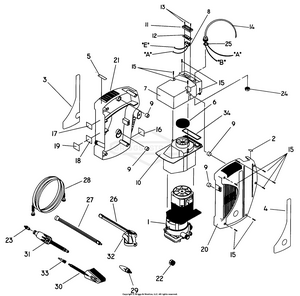

Housing & Decals

...
...
2
DECAL, BRANCH CRCT BS-B1415GS
...
3
DECAL, Unit BS-B3723
...
4
DECAL, Instructions BS-21318
...
5
DECAL, 800 # BS-B3765
...
6
FOAM, AIR IN FAN END BS-98806GS
...
7
HOUSING-SWITCH BS-B1650GS
...
8
SWITCH, Rocker BS-20984
...
9
MNT, VIBR, 15DI BS-98801GS
...
10
COVER, Motor BS-B1566
...
11
COUPLER, 1/2" NPT BS-5020985
...
12
PLUG BS-5020986FS
...
13
SCREW BS-84543BGS
...
14
ASSY., Power Cord BS-98805
...
15
PLASTITE, #6-19 X .75 BS-84358GS
...
16
DECAL, USER GUIDE BS-B3532GS
...
17
DECAL, ETL ELECT P.W. BS-B1053GS
...
18
DECAL, Data BS-B3664
...
19
LAMINATE, Over BS-79552
...
20
HSNG, GPW-E, INLET BS-97694GS
...
21
HOUSING, Outlet BS-97695
...
22
TRANSAXLE BS-84010384
...
23
NZZL, FOAMER, INLINE BS-B2433GS
...
24
NUT, STRN RELIEF, LOCK BS-A1484GS
...
25
SEAL RING, Strain Relief BS-A1485
...
26
GUN, Spray BS-21336
...
27
EXTNSN, BAY, BAY BS-21337GS
...
28
HOSE, High Pressure BS-B3337
...
29
NZZL, TURBO, 1.15, M22, ARL BS-B1300DGS
...
30
BRUSH, Utility BS-88185GS
...
31
ACC, FOAMER, IN-LINE, GF BS-B2390GS
...
32
DECAL, WARNING, EPW, GUN BS-B1866GS
...
33
ADPTR, BAYONET AL-8 BS-B1051GS
...
34
O-RING, Housing Seal BS-97835GS
...
Garden Hose Quick Connect Optional Accessory Not Illustrated BS-7175187GS
...
Rotating Brush Kit Optional Accessory Not Illustrated BS-7175199GS
...
Broom Brush Optional Accessory Not Illustrated BS-7176430
...
O-Ring Repair Kit Optional Accessory Not Illustrated BS-7175116
...
Degreaser Optional Accessory Not Illustrated BS-7176403
...
Vehicle/Boat Wash Optional Accessory Not Illustrated BS-7176402
...
House Multi Purpose Wash Optional Accessory Not Illustrated BS-7176400
...
Deck Wash Optional Accessory Not Illustrated BS-7176401

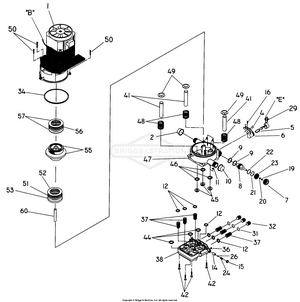

Pump Assembly

...
...
1
ASSY, MOTOR, FELCHAR BS-B1514GS
...
2
CAP, ADPTR, HP BS-97100GS
...
4
GROMMET, Rubber BS-21055
...
5
SWITCH, MICRO, 21 AMP BS-20138GS
...
6
SHIM BS-5020928
...
7
CAP, RETAINR AUTO SW BS-20218GS
...
8
KIT-SHUTTLE PISTON BS-B3384GS
...
9
WIPER, PSTN BS-21525GS
...
10
CAP, ADPTR, INLET BS-B1124GS
...
11
O-RING, BYPASS EE BS-97855GS
...
12
O-RING, VLV, CHCK BS-97934GS
...
14
SEAT, VLV, POP-OFF BS-B1960GS
...
15
SCREW, SET STEEL BS-B2240GS
...
16
TAPTITE, M4-0.7 X 10 BS-A1495GS
...
19
BALL JOINT, 3/8-24 MA BS-5021124SM
...
20
Close Nipple BS-5021123
...
21
DECAL, Hydro Drive BS-5021126
...
22
O-RING, 25.07 ID 2.62 BS-21125GS
...
23
STOP, PSTN RETURN BS-20217GS
...
24
SPRING, VLV, POP-OFF BS-A1130GS
...
26
BALL, 3/16, POPOFF VLV BS-97852GS
...
29
TIE WRAP, 4" Black BS-28739AGS
...
31
O-RING, Cap BS-97840GS
...
32
CAP, Outlet Port BS-97841GS
...
34
O-RING, Housing Seal BS-97835GS
...
36
PLUG, Taper dia. 5.4 BS-76353A
...
37
ASSY, VLV, CHK, INLET BS-B2664GS
...
38
HEAD, CYL, EPW BS-A1111AGS
...
41
PSTN, 15 DIA X 65 LG BS-97832GS
...
42
Nylon Roller BS-5040946
...
44
SEAL, PSTN, U-CUP BS-93667GS
...
45
SPACER, Pilot BS-97831GS
...
46
SEAL, Oil Piston BS-93680GS
...
47
HOUSING, Piston BS-B1119
...
48
SPRING, RETURN, PSTN, EG BS-99503GS
...
49
RETAINER, PSTN SPRING BS-97830GS
...
50
SCREW BS-40945GS
...
51
BRNG, NDL, THRST, 40X60 INA BS-97824AGS
...
52
WSHR, BRNG, 40X60X1 BS-97826GS
...
53
WSHR, BRNG, 30X60X6 BS-97825GS
...
55
ASSY, ELE, CAM/THIN GEAR BS-B2663GS
...
56
CAGE, THRST, BRNG, NDL BS-97822GS
...
57
WSHR, 35 X 55 X 3 BS-20610GS
...
60
SHAFT, IDLER, AXIALCAM BS-97833GS
...
...
...
