Briggs & Stratton 1051-2 - 580.762202, 2,200 PSI Craftsman

Model: 1051-2 - 580.762202, 2,200 PSI

Save
 Part Not Listed?Part Not Listed?
product name

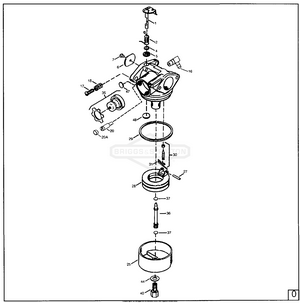

Carburetor

...
...
0
Carburetor (Incl. 184 of Engine Parts List) BS-640147
...
1
Throttle Shaft & Lever Assembly BS-631615
...
2
Throttle Return Spring BS-631767
...
4
Dust Seal Washer BS-631184
...
5
Dust Seal (Throttle) BS-631183
...
6
Throttle Shutter BS-640070
...
7
Shutter Screw BS-650506
...
16
Fuel Fitting BS-631807
...
17
Throttle Crack Screw/Idle Speed Screw BS-651025
...
18
Tension Spring BS-630766
...
20
Idle Restrictor Screw BS-640016
...
20A
Idle Restrictor Screw Cap BS-640053
...
25
Float Bowl BS-631867
...
27
Float Shaft BS-631024
...
28
Float BS-632019
...
29
Float Bowl "O" Ring BS-631028
...
30
Inlet Needle, Seat, & Clip (Incl. 31) BS-631021
...
31
Spring Clip BS-631022
...
35
Primer Bulb/Retainer Ring BS-36045A
...
36
Main Nozzle Tube BS-632745
...
37
Main Nozzle Tube "O" Ring BS-632547
...
40
High Speed Bowl Nut BS-640083
...
44
(C) FITTING 90 DEG W BS-7027110YP
...
47
Welch Plug, Idle Mixture Well BS-630748
...
48
Welch Plug, Atmospheric Vent BS-631027

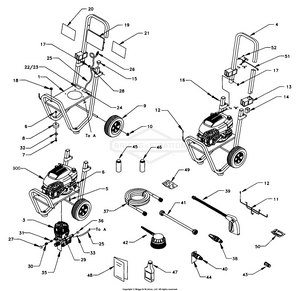

Main Unit

...
...
1
BASE, VSPW, PWDR CT, PL GRN BS-EB2528GS
...
3
PUMP, Medium Frame BS-~NSP
...
4
HNDL, PWDR CT, POLO GRN BS-EB2534GS
...
5
HHCS, M8 - 1.25 x 35 BS-39414GS
...
6
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
7
SCREW BS-39287GS
...
8
VIBE MOUNT, with Washer BS-191413GS
...
9
TIRE BS-B2142GS
...
10
PUSHNUT BS-194062GS
...
11
HANGER, Hose BS-B2168
...
12
CAP, Vinyl Black BS-B1460GS
...
13
COVER, Hinge BS-B1779GS
...
14
END CAP, Tube BS-B2347GS
...
15
CAP PLUG, Tubing BS-46476GS
...
16
SCREW BS-51767GS
...
17
NUT-M6 FLANGE BS-52857GS
...
18
GROMMET, Base BS-199553GS
...
19
BILLBOARD, Plastic BS-B1631AGS
...
20
DECAL, [email protected], SRS BS-B2623GS
...
21
DECAL, INSTRCTN BS-B2626GS
...
22
DECAL, Data BS-91373
...
23
OVERLAMINATE BS-79552
...
24
DECAL, 1-800 Number BS-96307GS
...
25
HOSE-CHEMICAL BS-705076
...
26
FILTER-CHEM HOSE BS-709496
...
27
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
28
CLAMP, Hose BS-B1232GS
...
29
TAG, Breather BS-B1288GS
...
30
QUICK DISCONNECT, Female BS-21782
...
31
QUICK DISCONNECT, Male BS-21781
...
32
Washer, .34 x 1 x 10 BS-50190GS
...
33
Shift indicator mounting plate BS-5048031
...
35
TAG, Pressure Adjust BS-97054
...
36
CAP, ADPTR, HP BS-97100GS
...
37
HOSE, 1/4" x 25' BS-B1969
...
38
NZZL, TURBO 1.3 ORANGE BS-B1974GGS
...
39
GUN, 2250PSI, M22, M22, MV BS-B2370GS
...
40
NZZL, HI-LO, 1.05, M22, MV BS-95587EGS
...
41
EXTNSN, M22, M22 BS-97123GS
...
42
ACC, KIT, BRUSH, DUAL BS-6057
...
43
ADPTR, BAYONET AL-8 BS-B1051GS
...
44
TAG, Nozzle Instructions BS-97566GS
...
45
WASH, Vehicle/Boat BS-B1736
...
46
WASH, House/Multi Purpose BS-B1736A
...
47
OIL, Engine SAE 30 BS-96382
...
48
MANUAL-OPERATOR BS-B3412GS
...
49
KIT, O-Ring Maintenance BS-B2730
...
50
KIT, CLNNG, P/W NOZ BS-97009GS
...
51
GUIDE, Recoil Rope BS-B3073
...
52
COLLAR, 5/8" SPLIT BS-5020441SM
...
900
ENGINE, Tecumseh OHV 6.75HP, 143.986714 BS-B2619
...
Garden Hose Quick Connect Optional Accessories Not Illustrated BS-7175187GS
...
KIT,QC,METRIC Optional Accessories Not Illustrated BS-312981GS
...
Rotating Brush Kit Optional Accessories Not Illustrated BS-7175199GS
...
Floor / Siding Brush Optional Accessories Not Illustrated BS-7176430
...
Utility Brush Optional Accessories Not Illustrated BS-7176431
...
Replacement Hose Optional Accessories Not Illustrated BS-7175115
...
25' Extension Hose Optional Accessories Not Illustrated BS-7176450
...
50' Extension Hose Optional Accessories Not Illustrated BS-7176451
...
O Ring Kit Optional Accessories Not Illustrated BS-7175116
...
House Wash Optional Accessories Not Illustrated BS-7176400
...
Deckwash Optional Accessories Not Illustrated BS-7176401
...
Vehicle / Boat Wash Optional Accessories Not Illustrated BS-7176402
...
Deck Wash Optional Accessories Not Illustrated BS-7176403

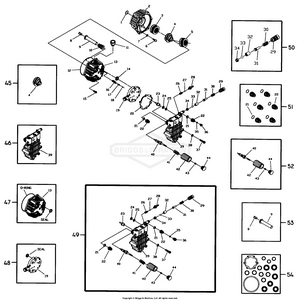

Pump And Crankcase Assemblies

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
4
CAM, Axial 6.0 Lift BS-B3328
...
5
ASSY, THRST, BRNG, NDL BS-97606GS
...
6
SCREW BS-B2261BGS
...
7
O-RING, Engine Adapter Bolt BS-B2217GS
...
8
SHOE, Piston Pivot BS-94944GS
...
9
ASSY, Ceramic Piston & Cap BS-99427GS
...
10
SPRING, Piston Return BS-96400GS
...
11
BREATHER BS-99735GS
...
12
O-RING, Crankcase BS-93790GS
...
13
ASSY, CRNKCS BS-B2016GS
...
14
SPACER, PILOT BS-93668GS
...
15
SCREW BS-40945GS
...
16
SPRING, Thermal By-Pass BS-93652GS
...
17
PISTON, Thermal By-Pass BS-95416GS
...
18
SCREW BS-690312
...
19
ASSY, PLATE, SPACER, SRV BS-B3509GS
...
20
GASKET, Head BS-A2069GS
...
21
O-RING, VLV, CHCK BS-97934GS
...
22
ASSY, VLV, CHK, HIGH P BS-B1449GS
...
23
ACTUATOR, Thermal By-Pass BS-93644GS
...
24
SEAL, High Pressure BS-96053GS
...
25
RING, Bearing BS-96015GS
...
26
SPRING, INJ, CHEM BS-95380GS
...
27
BALL, 5.5 dia. Chemical Injector BS-95379
...
28
FTG, EE/EG CHEM INJ BS-A1575GS
...
29
MANUAL-OPERATOR BS-B2451GS
...
30
VENTURI BS-B2151GS
...
31
VALVE-CHECK BS-B1879GS
...
32
SEAT, SHUTTLE BS-A2503GS
...
33
BALL, 9/32, 440C SS BS-A2015GS
...
34
SEAT BS-B2152GS
...
35
O-RING, Cap BS-97840GS
...
36
CAP, Outlet Port BS-97841GS
...
37
BOLT BS-A2013GS
...
38
WASHER, Steel Special BS-B2665GS
...
39
HEAD ASSEMBLY BS-B3148
...
40
"O" RING SPINDLE ASSEMBLY BS-B3185
...
41
SPRING, UNLDR, FLT HD BS-A1716GS
...
42
KNOB, PRSSR ADJ BS-B3117GS
...
43
SCREW, SET, M6 X 8 LG BS-A2014GS
...
44
PLUG, RND, PLSTC BS-B2241GS
...
45
CAM ASSEMBLY, 6.0 LIFT BS-B3481
...
46
HEAD ASSEMBLY BS-B3507
...
47
ASSY, CRNKCS, SRV BS-B3508GS
...
48
ASSY, PLATE, SPACER, SRV BS-B3509GS
...
49
COMPLETE HEAD ASSEMBLY BS-B3480
...
50
KIT, High Pressure Outlet BS-B3510GS
...
51
KIT, CHECK VALVES BS-B3513GS
...
52
KIT, Unloader Spindle BS-B3479GS
...
53
ASSY, PSTN, SNGL SRV BS-B3478GS
...
54
KIT, O-RING, SEALS, SRV BS-B3514GS

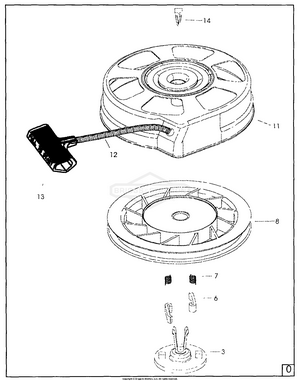

Rewind Starter

...
...
0
Rewind Starter BS-590739
...
3
Retainer BS-590740
...
6
Starter Dog BS-590616
...
7
Dog Spring BS-590617
...
8
Pulley & Rewind Spring Ass'y BS-590618A
...
11
Starter Housing Ass'y (40 degree grommet) BS-59063B
...
12
Starter Rope (Length 98" x 9/64" dia.) BS-590535
...
13
SCREW BS-590850
...
14
Locking Tab BS-590741
...
...
...
