Briggs & Stratton 0793-1 - 580.677131, 1,300 PSI Craftsman

Model: 0793-1 - 580.677131, 1,300 PSI

Save
 Part Not Listed?Part Not Listed?
product name

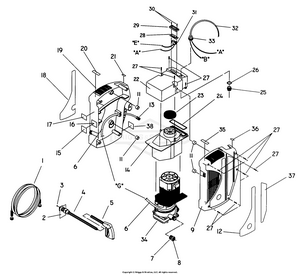

Main Unit

...
...
1
MANUAL-OPERATOR BS-B1263GS
...
2
TAG, INSTRCTN, NZZL, FRENCH BS-98904GS
...
3
ORIFICE BS-B1236DGS
...
4
WAND, HI-LO, 1.20, GF, ARL BS-95602BGS
...
5
GUN, 1740PSI, M22, BAY, ARL BS-97809GS
...
6
HOSE, Chemical Inject BS-A1040AGS
...
7
QUICK DISCONNECT, Female BS-21782
...
8
QUICK DISCONNECT, Male BS-21781
...
9
HSNG, GPW-E, INLET BS-97694GS
...
11
MNT, VIBR, 15DI BS-98801GS
...
12
DECAL, WARNING, EPW, CSA BS-B1277GS
...
13
VENTURI, CHEM INJ BS-B1060GS
...
14
COVER, Motor BS-B1566
...
15
OVERLAMINATE BS-79552
...
16
DECAL, Data BS-B1714
...
17
DECAL, ETL ELECT P.W. BS-B1053GS
...
18
DECAL, UNIT, 00761, SRS BS-A1128GS
...
19
HOUSING, Outlet BS-97695
...
20
DECAL, 1-800 Number BS-96307GS
...
21
DECAL, BRANCH CRCT BS-B1415GS
...
22
HOUSING-SWITCH BS-B1650GS
...
23
FOAM, AIR IN FAN END BS-98806GS
...
24
O-RING, Housing Seal BS-97835GS
...
25
NUT, STRN RELIEF, LOCK BS-A1484GS
...
26
SEAL RING, Strain Relief BS-A1485
...
27
PLASTITE, #6-19 X .75 BS-84358GS
...
28
PLUG BS-5020986FS
...
29
COUPLER, 1/2" NPT BS-5020985
...
30
SCREW BS-84543BGS
...
31
SWITCH, Rocker BS-20984
...
32
CORD, Power BS-98805
...
33
RELIEF, STRAIN, CORD BS-99349GS
...
35
DECAL, 1-800, FRENCH (French) BS-98893GS
...
36
DECAL, BRANCH CRCT, FRENCH BS-B1257GS
...
37
DECAL, INSTRCTN, EPW, RH CSA BS-B1285GS
...
38
DECAL, POTABLE WATER BS-B2214GS
...
MANUAL-OPERATOR (Not shown) BS-B1701GS

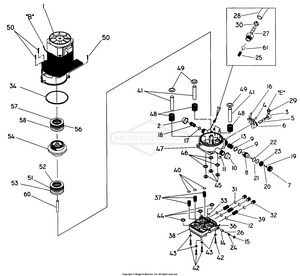

Pump & Motor

...
...
1
ASSY, MOTOR, FELCHAR BS-B1514GS
...
2
CAP, ADPTR, HP BS-97100GS
...
3
BOOT, RBBR BS-21054GS
...
4
GROMMET, Rubber BS-21055
...
5
SWITCH, MICRO, 21 AMP BS-20138GS
...
6
SHIM BS-5020928
...
7
CAP, RETAINR AUTO SW BS-20218GS
...
8
KIT-SHUTTLE PISTON BS-B3384GS
...
9
WIPER, PSTN BS-21525GS
...
10
CAP, ADPTR, INLET BS-B1124GS
...
11
O-RING, BYPASS EE BS-97855GS
...
12
O-RING, VLV, CHCK BS-97934GS
...
13
SPRING, LO PRSSR AUTO SW BS-20212GS
...
14
SEAT, VLV, POP-OFF BS-B1960GS
...
15
SCREW, SET STEEL BS-B2240GS
...
16
TAPTITE, M4-0.7 X 10 BS-A1495GS
...
17
O-RING, VENTURI BS-B1077GS
...
18
VENTURI, CHEM INJ BS-B1060GS
...
19
BALL JOINT, 3/8-24 MA BS-5021124SM
...
20
Close Nipple BS-5021123
...
21
DECAL, Hydro Drive BS-5021126
...
22
O-RING, 25.07 ID 2.62 BS-21125GS
...
23
STOP, PSTN RETURN BS-20217GS
...
24
SPRING, VLV, POP-OFF BS-A1130GS
...
25
SPRING, INJ, CHEM BS-95380GS
...
26
BALL, 3/16, POPOFF VLV BS-97852GS
...
27
FTG, EE/EG CHEM INJ BS-A1575GS
...
28
HOSE, Chemical Inject BS-A1040AGS
...
29
TIE WRAP, 4" Black BS-28739AGS
...
30
CLAMP, Hose 13/32" BS-48031GGS
...
31
O-RING, Cap BS-97840GS
...
32
CAP, Outlet Port BS-97841GS
...
33
O-RING, Hi Pressure BS-97837GS
...
34
O-RING, Housing Seal BS-97835GS
...
36
PLUG, Taper dia. 5.4 BS-76353A
...
37
ASSY., Check Valve, Inlet BS-97838
...
38
HEAD, CYL, EPW BS-A1111AGS
...
39
ASSY, VLV, CHK, OUTLET BS-97839GS
...
40
O-RING, PISTN HOUSNG BS-97851GS
...
41
PSTN, 15 DIA X 65 LG BS-97832GS
...
42
Nylon Roller BS-5040946
...
43
LOCKWASHER, M6 Ribbed BS-93873
...
44
SEAL, PSTN, U-CUP BS-93667GS
...
45
SPACER, Pilot BS-97831GS
...
46
SEAL, Oil Piston BS-93680GS
...
47
HSNG, PSTN, MCHND BS-20140GS
...
48
SPRING, RETURN, PSTN, EG BS-99503GS
...
49
SCREW BS-40945GS
...
50
CAPSCREW, Socket Head BS-97962GS
...
51
BRNG, NDL, THRST, 40X60 INA BS-97824AGS
...
52
WSHR, BRNG, 40X60X1 BS-97826GS
...
53
WSHR, BRNG, 30X60X6 BS-97825GS
...
54
ASSY., Cam/Gear/Bearings BS-82653
...
56
CAGE, THRST, BRNG, NDL BS-97822GS
...
57
WSHR, 35 X 55 X 3 BS-20610GS
...
58
WSHR, BRNG, 35 X 52 X 1 AS BS-97823GS
...
60
SHAFT, IDLER, AXIALCAM BS-97833GS
...
61
BALL, Chemical Injector BS-95379
...
...
...
