product name

Briggs & Stratton 0790-2 - 580.761652, 1,650 PSI Craftsman

Model: 0790-2 - 580.761652, 1,650 PSI

Save
 Part Not Listed?Part Not Listed?
product name

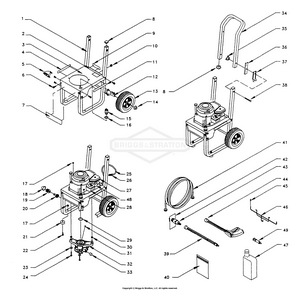

High Pressure Washer

...
...
1
VS PW LEG BS-21416
...
2
DECAL, INSTRCTN, START BS-20089AGS
...
3
BASE, VS, BCKWRD W/TRB BS-21207AGS
...
4
5/8" Bearing BS-5021449
...
5
CUP, GUN HLDR BS-97769GS
...
6
COLLAR, 5/8" SPLIT BS-5020441SM
...
7
DECAL, LOGO, 1650, SRS BS-A1405GS
...
8
CAP, Plug BS-81895GS
...
9
DECAL, CAUTION BS-20042GS
...
10
GROMMET BS-30809GS
...
11
Bearing Flange BS-5021450
...
12
WLDMNT, AXLE, VSPW BS-97741GS
...
13
TIRE, Black Mag BS-21206GS
...
14
PUSHNUT BS-194062GS
...
15
ORIFICE BS-193611BGS
...
16
GROMMET, Rubber BS-B1127GS
...
17
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
18
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
19
QUICK DISCONNECT - FEMALE BS-21782
...
20
QUICK DISCONNECT - MALE BS-21781
...
21
MOUNT, Rubber Donut BS-87841GS
...
22
HHCS, M8 - 1.25 x 35 BS-39414GS
...
23
WASHER, M8 Flat BS-96796GS
...
24
HHCS, M8-1.25 X 55 BS-39288GS
...
25
HOSE-CHEMICAL BS-705076
...
26
FILTER-CHEM HOSE BS-709496
...
27
B & S 3.8 HP ENGINE BS-A1404
...
28
DECAL, 1-800 Number BS-96307GS
...
29
SEAL, Engine Donut BS-98300GS
...
30
PLUG, 1/8" - 27 BS-96137GS
...
31
BUSHING BS-5020874FS
...
32
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
33
CAP, ADPTR, HP BS-97100GS
...
34
MOWER BLADE, 18" (High Lift) BS-5021268
...
35
KNOB, Handle BS-97178GS
...
36
PLATE, WEAR, SS BS-99368GS
...
37
CLIP, VSPW, MNTNG, HNDL BS-97082GS
...
38
BOLT, CRRG, 1/4-20 X 2.25 BS-97912GS
...
39
EXTNSN, BAY, BAY BS-21337GS
...
40
KIT, CLNNG, P/W NOZ BS-97009GS
...
41
1/4" X 25' HIGH PRESSURE HOSE BS-97810
...
42
TAG, Nozzle Instructions BS-97566GS
...
43
NZZL, HI-LO, 1.25, GF, ARL BS-B1384FGS
...
44
HIGH PRESSURE GUN BS-21336
...
45
BUSHING BS-5021702
...
46
WIREFORM BS-B1298
...
47
20 OZ. OIL BOTTLE BS-96382
...
48
TAG BS-B1210AGS
...
49
ADPTR, BAYONET AL-8 BS-B1051GS

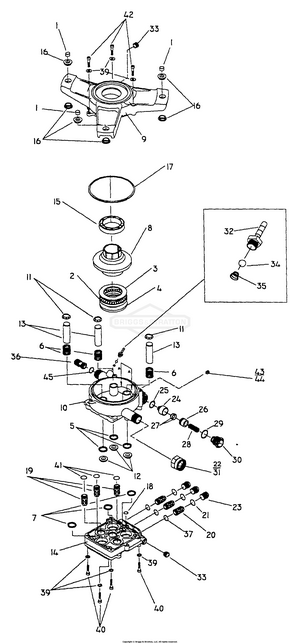

Pump Assembly

...
...
1
SLEEVE, Grommet Spacer BS-96795GS
...
2
ASSY, CAGE, BRNG, 45 X 65 BS-21640GS
...
3
WSHR, BRNG, 45X65X1 BS-21641GS
...
4
WASHER, BRG. DIA. 36 x 65 x 6T SPECIAL BS-21642
...
5
SEAL, Oil Piston BS-93680GS
...
6
SPRING, RTRN, PSTN, 2300 BS-97828GS
...
7
SEAL, PSTN, U-CUP BS-93667GS
...
8
CAM, SML, 7/8, 5.6, CAST, 2000 BS-98304GS
...
9
ADAPTER, Engine BS-98227GS
...
10
HOUSING, PISTON AND UNLOADER BS-20110V
...
11
RETAINER, PSTN SPRING BS-97830GS
...
12
SPACER, Pilot BS-97831GS
...
13
PSTN, 15 DIA X 65 LG BS-97832GS
...
14
HEAD, CYL, GAS PUMP BS-A1111BGS
...
15
BRNG, BALL, 35X72X17 BS-57018GS
...
16
BUSHING, Rubber Mount BS-21429GS
...
17
O-RING, Housing Seal BS-97835GS
...
18
O-RING, Hi Pressure BS-97837GS
...
19
ASS'Y, CHECK VALVE - INLET BS-97838
...
20
ASSY, VLV, CHK, OUTLET BS-97839GS
...
21
O-RING, Cap BS-97840GS
...
22
QUICK CONNECT, BRASS, MALE, PUMP BS-21781
...
23
CAP, Outlet Port BS-97841GS
...
24
SEAT, UNLOADER BS-97842
...
25
O-RING, 0.364 ID X 0.070, 70 D BS-97843GS
...
26
PISTON, UNLOADER BS-B1253
...
27
SEAL, PARBAK UNLDR BS-97845GS
...
28
SPRING, UNLOADER BS-A2731
...
29
O-RING, UNLDR CAP BS-97847GS
...
30
CAP, UNLDR, PLASTIC BS-A2730GS
...
31
QUICK CONNECT, BRASS, FEMALE/HOSE BS-21782
...
32
FTG, EE/EG CHEM INJ BS-A1575GS
...
33
PLUG, 1/8" - 27 WITH SEALANT BS-96137GS
...
34
BALL, DIA. 5.5 CHEMICAL INJECTOR BS-95379
...
35
SPRING, INJ, CHEM BS-95380GS
...
36
VENTURI, CHEMICAL INJECTOR BS-20631
...
37
O-RING, VLV, CHCK BS-97934GS
...
39
LOCKWASHER, M6 RIBBED BS-93873
...
40
Nylon Roller BS-5040946
...
41
O-RING, PISTN HOUSNG BS-97851GS
...
42
CAPSCREW, Socket Head BS-97962GS
...
43
1/4" NPT PIPE PLUG BS-50873
...
44
BUSHING, .75 X 1.00 X BS-5023344SM
...
45
O-RING, VENTURI BS-B1077GS
...
...
...
