Briggs & Stratton 0761-0 - 580.760200, 1,250 PSI Craftsman

Model: 0761-0 - 580.760200, 1,250 PSI

Save
 Part Not Listed?Part Not Listed?
product name

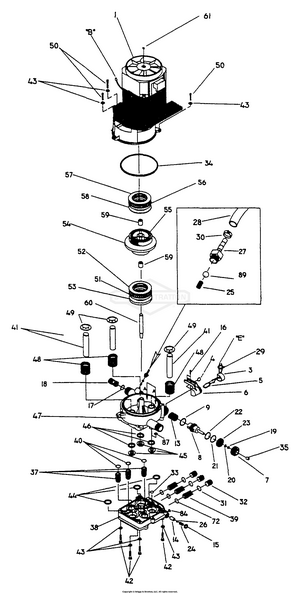

Motor Assembly

...
...
1
Assy, Motor Complete BS-21144
...
3
BOOT, RBBR BS-21054GS
...
4
Grommet, Rubber BS-21055
...
5
SWITCH, MICRO, 21 AMP BS-20138GS
...
6
SHIM BS-5020928
...
7
CAP, RETAINR AUTO SW BS-20218GS
...
8
Ass'y, Piston BS-21342
...
9
WIPER, PSTN BS-21525GS
...
13
SPRING, LO PRSSR AUTO SW BS-20212GS
...
14
Seat, Ball BS-41132
...
15
CAP, FREEZE, 5/8 DIA BS-A1131GS
...
16
TAPTITE, M4-0.7 X 10 BS-A1495GS
...
17
O-RING, VENTURI BS-B1077GS
...
18
VENTURI, CHEM INJ BS-B1060GS
...
19
BALL JOINT, 3/8-24 MA BS-5021124SM
...
20
Close Nipple BS-5021123
...
21
DECAL, Hydro Drive BS-5021126
...
22
O-RING, 25.07 ID 2.62 BS-21125GS
...
23
STOP, PSTN RETURN BS-20217GS
...
24
SPRING, VLV, POP-OFF BS-A1130GS
...
25
SPRING, INJ, CHEM BS-95380GS
...
26
BALL, 3/16, POPOFF VLV BS-97852GS
...
27
FTG, EE/EG CHEM INJ BS-A1575GS
...
28
HOSE, Chemical Inject BS-A1040AGS
...
29
TIE WRAP, 4" Black BS-28739AGS
...
30
CLAMP, Hose 13/32" BS-48031GGS
...
31
O-RING, Cap BS-97840GS
...
32
CAP, Outlet Port BS-97841GS
...
33
O-RING, Hi Pressure BS-97837GS
...
34
O-RING, Housing Seal BS-97835GS
...
35
Vinyl Cap BS-B1026
...
37
Assy., Check Valve, Inlet BS-97838
...
38
HEAD, CYL, EPW BS-A1111AGS
...
39
ASSY, VLV, CHK, OUTLET BS-97839GS
...
40
O-RING, PISTN HOUSNG BS-97851GS
...
41
PSTN, 15 DIA X 65 LG BS-97832GS
...
42
Nylon Roller BS-5040946
...
43
Lockwasher, M6 Ribbed BS-93873
...
44
SEAL, PSTN, U-CUP BS-93667GS
...
45
SPACER, Pilot BS-97831GS
...
46
SEAL, Oil Piston BS-93680GS
...
47
HSNG, PSTN, MCHND BS-20140GS
...
48
SPRING, RETURN, PSTN, EG BS-99503GS
...
49
RETAINER, PSTN SPRING BS-97830GS
...
50
CAPSCREW, Socket Head BS-97962GS
...
51
BRNG, NDL, THRST, 40X60 INA BS-97824AGS
...
52
WSHR, BRNG, 40X60X1 BS-97826GS
...
53
WSHR, BRNG, 30X60X6 BS-97825GS
...
54
CAM, ELE, 4.3, MACH, THK GEAR BS-97716GS
...
55
GEAR, AXIAL CAM, 47 T BS-97829GS
...
56
CAGE, THRST, BRNG, NDL BS-97822GS
...
57
WSHR, 35 X 55 X 3 BS-20610GS
...
58
WSHR, BRNG, 35 X 52 X 1 AS BS-97823GS
...
59
BRNG, NDL, CUP, 8X12X10L BS-97834GS
...
60
SHAFT, IDLER, AXIALCAM BS-97833GS
...
61
Nut, M5-0.8 LH Thread BS-B1125
...
72
O-RING, VLV, CHCK BS-97934GS
...
84
Plug, Taper dia. 5.4 BS-76353A
...
87
O-RING, BYPASS EE BS-97855GS
...
89
Ball, Chemical Injector BS-95379
...
94
ORIFICE BS-B1236DGS
...
MANUAL-OPERATOR PARTS NOT ILLUSTRATED BS-21315GS
...
Rotating Brush Kit OPTIONAL ACCESSORIES (not shown) BS-7175199GS
...
BRUSH, UTILITY OPTIONAL ACCESSORIES (not shown) BS-7175189GS
...
KIT, BRUSH, FLOOR/SIDING OPTIONAL ACCESSORIES (not shown) BS-7175190GS
...
NZZL, TURBO OPTIONAL ACCESSORIES (not shown) BS-7175184GS
...
Garden Hose Quick Connect OPTIONAL ACCESSORIES (not shown) BS-7175187GS
...
Multipurpose Cleaner OPTIONAL ACCESSORIES (not shown) BS-7175100
...
CHEM-WASH DECK OPTIONAL ACCESSORIES (not shown) BS-100524GS
...
Vehicle Wash OPTIONAL ACCESSORIES (not shown) BS-7175102
...
Degreaser OPTIONAL ACCESSORIES (not shown) BS-7175103
...
Spray Wax OPTIONAL ACCESSORIES (not shown) BS-7175104
...
KIT, ACC, BRCKT, SRV OPTIONAL ACCESSORIES (not shown) BS-7175183GS
...
ASSY, CART, 76477, SRS OPTIONAL ACCESSORIES (not shown) BS-7176477GS

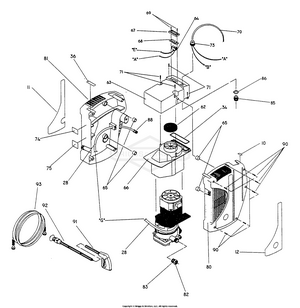

Pressure Washer Complete Assembly

...
...
10
Decal, Circuit BS-96462
...
11
DECAL, UNIT, 00761, SRS BS-A1128GS
...
12
Decal, Instructions BS-21318
...
28
HOSE, Chemical Inject BS-A1040AGS
...
34
O-RING, Housing Seal BS-97835GS
...
36
DECAL, 1-800 Number BS-96307GS
...
62
FOAM, AIR IN FAN END BS-98806GS
...
63
HOUSING-SWITCH BS-B1650GS
...
64
Switch, Rocker 16A BS-20984
...
65
MNT, VIBR, 15DI BS-98801GS
...
66
Cover, Motor BS-97892
...
67
COUPLER, 1/2" NPT BS-5020985
...
68
PLUG BS-5020986FS
...
69
SCREW BS-84543BGS
...
70
Cord, Power BS-98805
...
71
PLASTITE, #6-19 X .75 BS-84358GS
...
73
RELIEF, STRAIN, CORD BS-99349GS
...
74
DECAL, ETL ELECT P.W. BS-B1053GS
...
75
Data Decal BS-B1052
...
80
HSNG, GPW-E, INLET BS-97694GS
...
81
Housing, Outlet BS-97695
...
82
Quick Disconnect, Male BS-21781
...
83
Quick Disconnect, Female BS-21782
...
85
NUT, STRN RELIEF, LOCK BS-A1484GS
...
86
Seal Ring, Strain Relief BS-A1485
...
88
FILTER-CHEM HOSE BS-709496
...
90
PLASTITE, #6-19 X 1.0 BS-99350GS
...
91
GUN, 1740PSI, M22, BAY, ARL BS-97809GS
...
92
WAND, HI-LO, 1.20, GF, ARL BS-95602BGS
...
93
High Pressure Hose BS-21779
...
94
ORIFICE BS-B1236DGS
...
MANUAL-OPERATOR PARTS NOT ILLUSTRATED BS-21315GS
...
Rotating Brush Kit OPTIONAL ACCESSORIES (not shown) BS-7175199GS
...
BRUSH, UTILITY OPTIONAL ACCESSORIES (not shown) BS-7175189GS
...
KIT, BRUSH, FLOOR/SIDING OPTIONAL ACCESSORIES (not shown) BS-7175190GS
...
NZZL, TURBO OPTIONAL ACCESSORIES (not shown) BS-7175184GS
...
Garden Hose Quick Connect OPTIONAL ACCESSORIES (not shown) BS-7175187GS
...
Multipurpose Cleaner OPTIONAL ACCESSORIES (not shown) BS-7175100
...
CHEM-WASH DECK OPTIONAL ACCESSORIES (not shown) BS-100524GS
...
Vehicle Wash OPTIONAL ACCESSORIES (not shown) BS-7175102
...
Degreaser OPTIONAL ACCESSORIES (not shown) BS-7175103
...
Spray Wax OPTIONAL ACCESSORIES (not shown) BS-7175104
...
KIT, ACC, BRCKT, SRV OPTIONAL ACCESSORIES (not shown) BS-7175183GS
...
ASSY, CART, 76477, SRS OPTIONAL ACCESSORIES (not shown) BS-7176477GS
...
...
...
