Briggs & Stratton 073022-1 - 198 GPM Vox

Model: 073022-1 - 198 GPM Vox

Save
 Part Not Listed?Part Not Listed?
product name

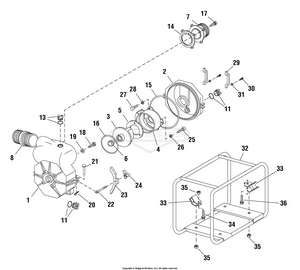

Trash Pump (315389)

...
...
1
CASING, Front BS-205231GS
...
2
COVER BS-205232GS
...
3
IMPELLER BS-205233GS
...
4
CASING BS-205234GS
...
5
LINER BS-205235GS
...
6
SEAL BS-205236GS
...
7
ADAPTER, Hose, 2" NPT BS-205237GS
...
--
ADAPTER, Hose BS-205603GS
...
8
FITTING, 2" NPT BS-205238GS
...
--
FITTING, BSP BS-205604GS
...
11
PLUG, Drain BS-205239GS
...
13
PLUG BS-205240GS
...
14
VALVE, Check BS-205241GS
...
15
O-RING BS-205324GS
...
16
O-RING BS-205325GS
...
19
WASHER BS-205299GS
...
20
PIN BS-205242GS
...
21
RIVET BS-205243GS
...
22
COVER BS-205244GS
...
23
CLAMP BS-205245GS
...
24
KNOB BS-205246GS
...
29
HANDLE BS-205247GS
...
32
CRADLE BS-205248GS
...
33
MOUNT, Vibration BS-205249GS
...
--
MANUAL, Operator (Not Illustrated) BS-315390GS
...
--
DECAL, Fuel Tank (Not Illustrated) BS-203522GS
...
--
DECAL, Warning (Not Illustrated) BS-204540GS

6237-00 - Hose, 2" NPT threaded Inlet/Outlet

...
