Briggs & Stratton 030660-01 - 5,250 Watt PowerBoss

Model: 030660-01 - 5,250 Watt PowerBoss

Save
 Part Not Listed?Part Not Listed?
product name

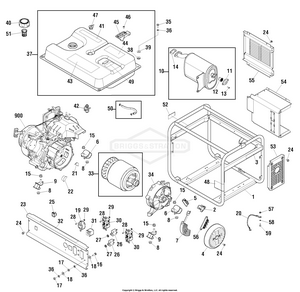

Main Unit (80017837)

...
...
1
CRADLE (Includes Ref. Nos. 3, 48 & 52) BS-707482
...
2
BRUSH ASSY BS-704915
...
3
DECAL BS-704187
...
4
END COVER BS-704838
...
5
TERMINAL BS-705783
...
6
MOUNT-VIBRATION BS-704890
...
7
VOLTAGE REGULATOR BS-704913
...
9
MOUNT-VIBRATION BS-704891
...
10
ASSY-MUFFLER BS-704842
...
11
PLATE BS-704845
...
12
SPARK ARRESTOR BS-704846
...
14
GASKET-MUFFLER BS-704853
...
19
OUTLET BS-704905
...
20
WIRE BS-705633
...
21
GUARD-RUBBER BS-705772
...
22
GUARD-RUBBER BS-705771
...
23
PANEL-CONTROL (Includes Ref. No. 32) BS-707481
...
25
SWITCH BS-704893
...
26
BREAKER-CIRCUIT BS-704907
...
27
NUT-BREAKER BS-704909
...
30
OUTLET BS-709526
...
31
BREAKER-CIRCUIT BS-704910
...
32
DECAL BS-704880
...
33
ALTERNATOR BS-704834
...
34
CARRIER-BEARING BS-704836
...
37
TANK-FUEL BS-707486
...
38
MOUNT-VIBRATION BS-704861
...
39
WASHER BS-704862
...
40
CAP-FUEL BS-704865
...
41
DECAL BS-704193
...
42
VALVE-FUEL BS-310574GS
...
43
DECAL BS-707485
...
44
DECAL BS-707437
...
45
GAUGE-FUEL BS-84007425
...
47
VALVE BS-704916
...
48
DECAL BS-707484
...
49
DECAL BS-703264
...
50
LINE, Fuel (Cut to Fit) BS-791745
...
51
FILTER-FUEL BS-704863
...
52
DECAL BS-707483
...
53
COVER-FRONT BS-705776
...
54
COVER-BACK BS-705777
...
55
COVER-SIDE BS-705775
...
56
TERMINAL BLOCK BS-705783
...
57
NUT-M6 FLANGE BS-52857GS
...
58
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
59
SCREW BS-706152

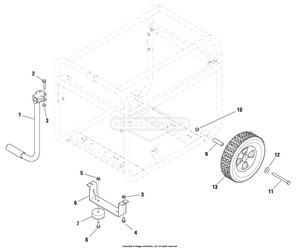

Wheel Kit (80009467)

...
...
1
HANDLE ASSY BS-705401
...
6
SUPPORT-LEG BS-705395
...
7
MOUNT-RUBBER BS-705400
...
9
SHAFT BS-705375
...
11
AXLE-BOLT BS-705782
...
13
WHEEL BS-704145
...
--
KIT-HARDWARE BS-705425

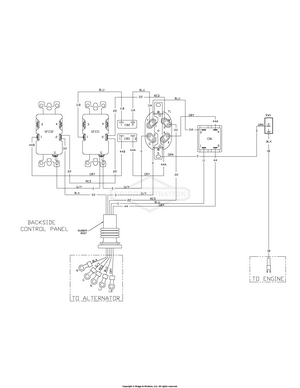

Wiring Diagram (80012555wd)

...

No Parts Available for this Schematic

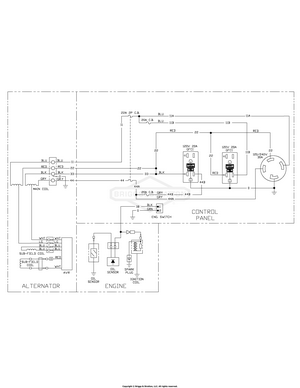

Wiring Schematic (80012555ws)

...

No Parts Available for this Schematic

...
...
...
