Briggs & Stratton 030542-01 - 1,700 Watt PowerBoss

Model: 030542-01 - 1,700 Watt PowerBoss

Save
 Part Not Listed?Part Not Listed?
product name

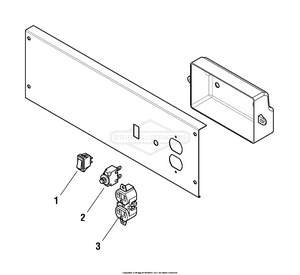

Control Panel (318349)

...
...
1
SWITCH, On/Off BS-797340
...
2
BREAKER, Circuit, 15A BS-318504GS
...
3
OUTLET BS-68759GS

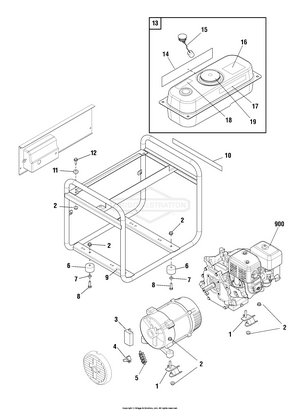

Main Unit (318350)

...
...
1
MOUNT, Vibration BS-318066GS
...
3
REGULATOR, Voltage BS-104201GS
...
4
BRUSH BS-318506GS
...
5
BLOCK, Junction BS-318505GS
...
6
MOUNT, Vibration BS-318508GS
...
9
DECAL BS-B4986GS
...
10
DECAL BS-317912GS
...
11
SPACER BS-318509GS
...
13
TANK, Fuel BS-317942GS
...
14
DECAL BS-318016GS
...
15
GAUGE, Fuel BS-312701GS
...
16
DECAL BS-202997GS
...
17
DECAL BS-318014GS
...
18
DECAL BS-312728GS
...
19
CAP-RESERVE TANK BS-846766

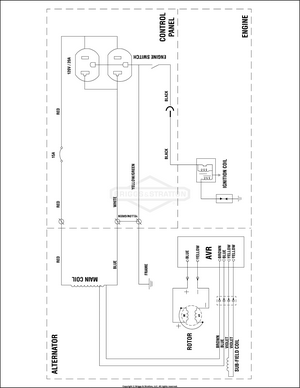

Wiring Diagram (318883WD)

...

No Parts Available for this Schematic

...
...
...
