Briggs & Stratton 030536-0 - 8,000 Watt PowerBoss

Model: 030536-0 - 8,000 Watt PowerBoss

Save
Part Not Listed?Part Not Listed?
product name

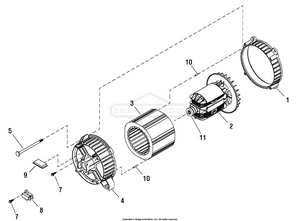

Alternator (314716)

...
...
1
ADAPTER, Alternator BS-209599GS

...
2
ROTOR (Includes Ref. No. 11) BS-195616GS

...
3

...
4
RBC, with O-Ring (p/n 189197) BS-193336GS

...
5

...
7
TAPTITE BS-66849GS

...
8
BRUSH ASSEMBLY BS-66386GS

...
9
REGULATOR, Voltage BS-205858GS

...

...
11
BEARING BS-65791GS

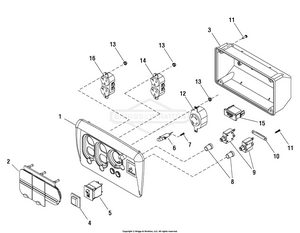

Control Panel (205138)

...
...
1
PANEL, Control BS-198468GS

...
2
COVER, Outlet BS-197472GS

...
3
BOX, Control Panel BS-201573GS

...
4
BOOT, Breaker Circuit BS-191481GS

...
5
BREAKER, Circuit, 30A BS-202033GS

...
6
LAMP, LED BS-202951GS

...
7

...
8
BOOT, Circuit Breaker BS-84198GS

...
9
BREAKER, Circuit, 20A BS-202394GS

...
10
BAR, Retaining BS-202932GS

...
11

...
12
OUTLET, 30A, 120V/240V Locking Type BS-43437GS

...
13
PALNUT, 3/16 BS-189164GS

...
14
Outlet, 120V, 15/20A Dplx BS-197731GS

...
15
CONNECTOR, 6 Pin BS-201678GS

...
16
Outlet, 120V, 15/20A Dplx BS-197731GS

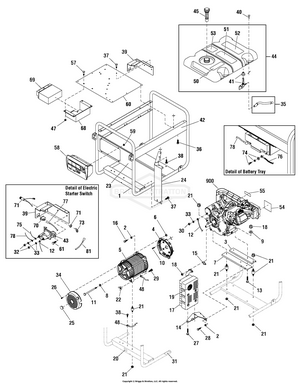

Main Unit (314158)

...
...
1
CRADLE (Includes Ref. Nos. 20 & 31) BS-206597ZGS

...
3
SUPPORT, Engine BS-92531ZGS

...
4
ADAPTER, Engine BS-190220GS

...
7
SUPPORT, Engine BS-190723ZGS

...
8

...
9

...
10

...
11

...

...
14
BRACKET BS-92532GS

...
15
GASKET BS-710250

...
17
MUFFLER BS-B4206AGS

...

...
19
ARRESTOR, Spark BS-83083GS

...
20

...
21
MOUNT, Vibration BS-198222GS

...

...
23

...
24
HEATSHIELD BS-194390GS

...

...
26
TAPTITE BS-74908GS

...
31

...
34
COVER, Rear Bearing BS-195422GS

...
35
LINE, Fuel (Cut to Fit) BS-791745

...
36

...
37
CRIMPTITE BS-56893GS

...
38

...
39

...
40

...
41
KIT, Fuel Valve BS-192980GS

...
42

...
43
SOLENOID, Starter BS-691656

...
44
TANK, Fuel BS-194217GS

...
45
CAP, Fuel BS-B4363GS

...

...
48
WIRE, Ground BS-195373GS

...
50

...
51

...
52

...
53

...
54

...
55

...
58
PANEL, Control BS-204726GS

...
59
PALNUT, 3/16 BS-189164GS

...
60
HEATSHEILD BS-208183GS

...
61
SCREW, HEX, 1/4-20X.5 BS-704130

...
68
TRAY, Battery BS-195680GS

...
69
BATTERY BS-193463GS

...
70
SWITCH, ON/OFF BS-87799GS

...
71
JACK-COAXIAL BS-312004GS

...

...
74
KIT, Hardware, Battery Terminal BS-193347GS

...
75

...

...
77

...

...
81

...
--
MANUAL, Operator's (Not Illustrated) BS-314157GS

...
--
CHARGER, Battery (Not Illustrated) BS-84002790

...
--
BOTTLE, Oil (Qty 2 Required) (Not Illustrated) BS-100005

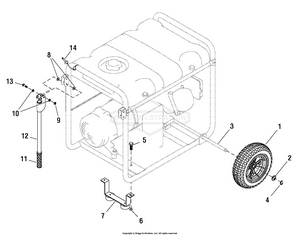

Wheel Kit (206416)

...
...
1


...
4
E-RING BS-703977


...
7
SUPPORT, Leg BS-198629GS

...
8

...
11

...
12

...

...
--
KIT, Hardware BS-199919GS
...
...
...
