Briggs & Stratton 030436-1 - 5,000 Watt Husky

Model: 030436-1 - 5,000 Watt Husky

Save
Part Not Listed?Part Not Listed?
product name

Alternator (310319)

...
...
1
ADAPTER, Engine BS-208537GS

...
2

...
3

...
4
BANT, Stator BS-207837GS

...
5
SUPPORT, Bearing BS-208485GS


...

...

...

...
10

...
11

...
12

...

...
14
BLOCK, Junction BS-207839GS

...
15

...
16
CAP, Rotor Bolt BS-315802GS

Control Panel (311004)

...
...
1
PANEL, Control BS-201571GS

...
2
COVER, Outlet BS-197472GS

...
3
BOX, Control Panel BS-201572GS

...
4
Outlet, 120V, 15/20A Dplx BS-197731GS

...
5
PALNUT, 3/16 BS-189164GS

...
6
LAMP, LED BS-202951GS

...
8
BREAKER-CIRCUIT 20A BS-202030GS

...
--
BOOT, Breaker Circuit (Not Illustrated) BS-191481GS

...
9
OUTLET, 30A, 120V/240V Locking Type BS-43437GS

...
10
CONNECTOR, 6 Pin BS-201678GS

...
12
Outlet, 120V, 15/20A Dplx BS-197731GS

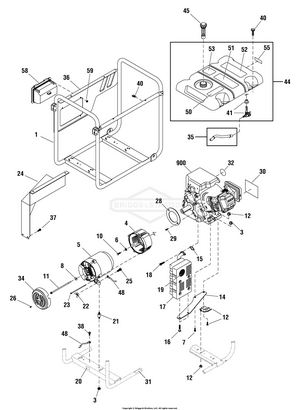

Main Unit (310321)

...
...
1
CRADLE (Includes Ref. Nos. 20 & 31) BS-209244GS


...
4
ADAPTER, Engine BS-208537GS

...
7
SCREW, Pan Head Torx, M8 1.25 x 35 BS-195398GS

...
8

...
11

...
12
MOUNT, Vibration BS-194150GS

...
14
BRACKET BS-189009GS

...
15
GASKET, Exhaust BS-695398

...
17
MUFFLER BS-189008GS

...
19

...
20

...
21
MOUNT-VIBRATION BS-194153GS

...

...
23
BOLT, M6 - 6 x 180 BS-207829GS

...
24
HEAT SHIELD BS-208236GS

...
26

...
28

...
30

...
31

...
32

...
34
COVER, Rear Bearing BS-208429GS

...
35
LINE, Fuel BS-791745

...
36

...
37
CRIMPTITE BS-56893GS

...
38

...
40
KIT, Hardware, Fuel Tank BS-199433GS

...
--
U-CLIPS (Optional Accessory) BS-199284GS

...
41
VALVE, Fuel BS-192980GS

...
44
TANK, Fuel BS-193668GS

...
45
CAP, Fuel BS-B4363GS

...
48

...
50

...
51

...
52

...
53

...
55

...
58
CONTROL PANEL BS-201575GS

...
59
PALNUT, 3/16 BS-189164GS

...
--
MANUAL, Operator's (Not Illustrated) BS-208373GS

Wheel Kit (208371)

...
...
1


...
4
E-RING BS-703977


...
7
SUPPORT, Leg BS-B1764GS

...
8
* WASHER, Nylon, 1.2 x .346 x .03 BS-187104GS

...
11

...
12

...

...
--
KIT, Hardware (Not Illustrated) BS-197923GS

Wiring Diagram (208926WD)

...

No Parts Available for this Schematic

Wiring Schematic (208926WS)

...

No Parts Available for this Schematic

...
...
...
