Briggs & Stratton 030431-3 - 5,500 Watt Troy-Bilt

Model: 030431-3 - 5,500 Watt Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

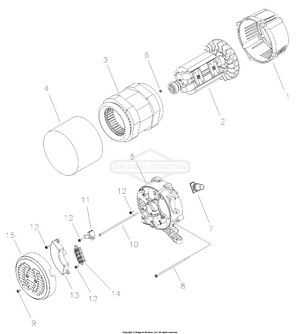

Alternator (310323)

...
...
1
ADAPTER, Engine BS-207822GS
...
2
ROTOR BS-207832GS
...
3
STATOR BS-207834GS
...
4
BAND, Stator BS-207836GS
...
5
SUPPORT, Bearing BS-208485GS
...
6
NUT, M5 BS-207878GS
...
7
BOOT, Rubber BS-207879GS
...
8
BOLT, M6 - 6 x 190 BS-207828GS
...
9
BOLT, M5 - 6 x 12 BS-207824GS
...
10
BOLT, M5 x 224 BS-207877GS
...
11
BRUSH, Carbon BS-207827GS
...
12
BOLT, M5 x 16 BS-207825GS
...
13
AVR BS-207840GS
...
14
BLOCK, Junction BS-207839GS
...
15
COVER BS-207823GS

Control Panel (207963)

...
...
2
BOX, Control Panel BS-201573GS
...
3
Outlet, 120V, 15/20A Dplx BS-197731GS
...
4
WASHER BS-43180GS
...
5
WASHER BS-22264GS
...
6
NUT BS-51715GS
...
7
Outlet, 120V, 15/20A Dplx BS-197731GS
...
8
CIRCUIT BREAKER BS-202394GS
...
9
OUTLET, 30A, 120V/240V Locking Type BS-43437GS
...
10
HOUSING, 6 Pin, Plug BS-201678GS
...
11
BREAKER, Circuit 25A BS-202031GS

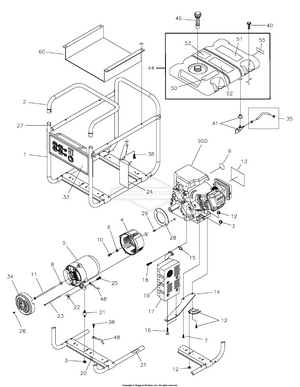

Main Unit (310322)

...
...
1
CRADLE (Includes Ref. Nos. 20 & 31) BS-209715GS
...
2
HANDLE BS-P206971GS
...
3
NUT BS-67989GS
...
4
ADAPTER, Engine BS-207822GS
...
7
SCREW, Pan Head Torx, M8 1.25 x 35 BS-195398GS
...
8
WASHER BS-207826GS
...
9
DECAL BS-200658GS
...
11
BOLT BS-207831GS
...
12
MOUNT, Vibration BS-194150GS
...
13
DECAL BS-206871GS
...
14
BRACKET BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
ARRESTOR, Spark BS-83083GS
...
20
DECAL BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
NUT BS-87680GS
...
23
BOLT, M6 - 6 x 190 BS-207828GS
...
24
HEAT SHIELD BS-207954GS
...
26
SCREW BS-207824GS
...
27
PIN, Spring, Handle BS-207525GS
...
28
DISK BS-B4260GS
...
31
DECAL BS-196830GS
...
33
DECAL BS-207923GS
...
34
COVER, Rear Bearing BS-207823GS
...
35
LINE, Fuel BS-791745
...
36
SCREW BS-192376GS
...
37
CRIMPTITE BS-56893GS
...
38
SCREW BS-B2153GS
...
40
BOLT BS-199256GS
...
41
KIT, Fuel Valve BS-192980GS
...
44
TANK, Fuel BS-193668GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
48
WIRE BS-195373GS
...
50
DECAL BS-188333GS
...
51
DECAL BS-194799GS
...
52
DECAL BS-189235GS
...
53
DECAL BS-202997GS
...
55
DECAL BS-197798GS
...
60
HEAT SHIELD BS-206805GS
...
--
MANUAL, Operator's (Not Illustrated) BS-201349GS
...
--
HARNESS, Power BS-208029GS

Wheel Kit (207273)

...
...
1
WHEEL BS-207443GS
...
3
AXLE BS-192006AGS
...
4
RETAINER, RING, 1/2 BS-703976
...
6
NUT BS-67989GS
...
7
SUPPORT, Leg BS-198629GS
...
--
KIT, Hardware BS-207953GS
...
...
...
