Briggs & Stratton 030373-0 - 4,500 Watt METCo

Model: 030373-0 - 4,500 Watt METCo

Save
 Part Not Listed?Part Not Listed?
product name

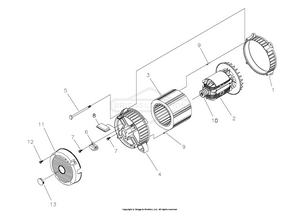

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
Assy, Rotor BS-206526GS
...
3
Stator BS-206175GS
...
4
RBC, (with O-Ring p/n 189197GS) (with O-Ring, p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 130 SEMS BS-86308CGS
...
6
Assy, Holder, Brush BS-66386GS
...
7
Taptite, M5 - 0.8 x 16 BS-66849GS
...
8
BOARD, Circuit, System Control BS-205858GS
...
9
Pin, Roll, 4mm x 10 BS-81917GS
...
10
Bearing BS-65791GS
...
11
Cover, RBC, Plastic w/Cap BS-195422GS
...
12
Cap BS-191190GS
...
13
Taptite, M5 - 0.8 x 10 BS-74908GS

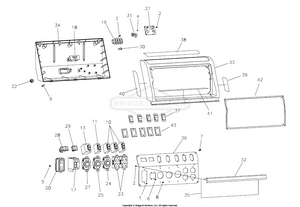

Control Panel

...
...
10
Breaker, 20A BS-206473GS
...
11
Breaker, 30A BS-206469GS
...
13
Breaker, 20A - 2 Pole BS-206507GS
...
17
Circuit Breaker, 22.5A BS-206510GS
...
18
Connector BS-201678GS
...
19
Terminal Block BS-193427GS
...
20
Module, GFCI Sensing BS-206506GS
...
21
Board, Idle Control BS-193362GS
...
22
Grommet BS-38057GS
...
23
Outlet, 120V, 20A, Duplex BS-68759GS
...
24
Outlet, 120V, 20A BS-74190GS
...
25
OUTLET-120V TL30A BS-705932
...
27
Outlet, 120/240V, 20A BS-68867GS
...
28
Switch, On/Off BS-206463GS
...
29
Switch, Rocker, Auto Idle BS-206462GS
...
30
Jumper BS-193095GS
...
31
Transformer BS-84028GS
...
32
Curtain Rod BS-206461GS
...
33
Panel, Control, Front (Includes #’s 39, 40 & 41) BS-206505GS
...
34
Panel, Control, Back BS-206460GS
...
35
Curtain BS-206465GS
...
36
Panel, Control BS-206471GS
...
37
Seal, Rubber, Breaker BS-206464GS
...
38
Decal, Logo BS-206204GS
...
39
Decal, Warning, Exhaust BS-205974GS
...
40
Decal, Warning BS-205975GS
...
41
Decal, Warning, English BS-205969GS
...
42
Gasket BS-206843GS
...
43
Seal, Breaker BS-206844GS

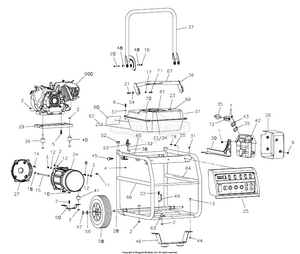

Main Unit

...
...
1
Nut, M8 - 1.25, Flange BS-710090
...
2
Nut, M8 - 1.25, Flange BS-67989GS
...
4
Nut, M8 - 1.25, Lock BS-52858GS
...
8
Stud, M8, Double BS-187117GS
...
9
HHS, Trilobular, 1/4 - 20 x 1/2 BS-206459GS
...
10
Screw, M6 - 1.0 x 16 Wing BS-86494GS
...
13
Carriage Bolt, 5/16 - 18 x .75 BS-206121GS
...
14
SBHCS, 3/8 - 16 x 1 BS-190274BGS
...
15
HHCS, 5/16 - 24 x 7 BS-47480GS
...
16
Nut, 1/4 - 20, Flange, Nylok BS-194005GS
...
17
Nut, 5/16 - 18, Lock BS-206140GS
...
18
Washer, 8.4 x 22.2 x 3 BS-96796GS
...
19
BHCS, 1/4 - 20 x 1/2 BS-206141GS
...
22
Screw, 12 - 14 x 7/8", Self Driller BS-B2153GS
...
23
Gauge, Fuel BS-205441GS
...
24
Assy, Alternator (See Alternator View) BS-~NSP
...
25
Assy, Control Panel (See Control Panel View) BS-206158GS
...
26
Enclosure, Muffler BS-206304GS
...
27
Adapter, Engine BS-190220GS
...
28
Axle BS-191267WGS
...
29
Bracket, Support BS-B92531GS
...
30
Bolt BS-711978
...
31
Clip, Tree BS-B1797GS
...
32
Clamp, Hose BS-189568GS
...
33
Cap, Fuel BS-205409GS
...
34
Strainer, Tank BS-206892GS
...
35
Gasket BS-710250
...
36
Assy, Lift Bar (Includes #67) BS-K205549GS
...
37
Handle BS-K205545GS
...
38
LINE, Fuel (Cut to Fit) BS-791745
...
39
Mount, Vibration, Engine BS-194783GS
...
40
Mount, Vibration, Bracket BS-194789GS
...
41
MOUNT-VIBRATION BS-194153GS
...
42
Muffler BS-206285GS
...
43
Elbow, Exhaust (Includes #1 & 35) BS-715601
...
44
Nut, 5/16 - 18, Lock BS-206140GS
...
45
Pivot Pin BS-206132GS
...
46
Assy, Support, Leg BS-206317GS
...
47
E-RING BS-703977
...
48
Spacer, Shoulder BS-206134GS
...
49
Wire, Ground BS-195373GS
...
50
Support, Alt BS-K205544GS
...
51
Fuel Tank (Fuel Valve Sold Separately) (Includes #’S 23, 33, 34, 60, 61, 62, 69 & 70) BS-205406GS
...
52
Cap, Tube End BS-189332GS
...
53
VALVE, Fuel BS-310574GS
...
55
Washer, Fender BS-71693GS
...
58
Wheel BS-206040GS
...
60
Decal, Instruction, Start BS-94480GS
...
61
Decal, Instruction, Fuel Level BS-205971GS
...
62
Decal, Fuel Shut Off BS-205972GS
...
63
Decal, Ground BS-B4986GS
...
64
Decal, Hot Engine BS-205970GS
...
65
Decal, Pinchpoint BS-206558GS
...
66
Cradle (Includes #’s 63, 64 & 65) BS-K205532GS
...
67
Decal, Lift, English/Spanish/French BS-206557GS
...
69
Decal, Co Warning BS-202997GS
...
70
Decal, Tank, Metco BS-206203GS
...
72
Washer, .34 x 1 x 10 BS-50190GS
...
xx
Manual, Operator’s Parts Not Illustrated BS-206060GS
...
xx
BOTTLE, Oil (Qty 2 Required) Parts Not Illustrated BS-100005
...
xx
Decal, Recoil Parts Not Illustrated BS-206065GS
...
xx
Decal, Air Cleaner Parts Not Illustrated BS-206066GS
...
xx
Arrestor Parts Not Illustrated BS-206052GS
...
xx
Hardware, Wheel Kit Parts Not Illustrated BS-206183GS

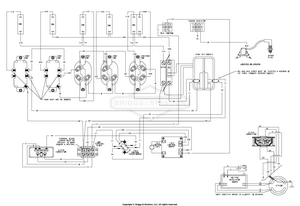

Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
