Briggs & Stratton 030248-2 - 3,550 Watt Troy-Bilt

Model: 030248-2 - 3,550 Watt Troy-Bilt

Save
Part Not Listed?Part Not Listed?
product name

Alternator (191750)

...
...
1
ADAPTER, Alternator BS-209599GS

...
2

...
3

...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS

...
5
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS

...
6
ASSY, Holder, Rectifier/Brush BS-91825GS

...
7
TAPTITE, M5 - 0.8 x 16 BS-66849GS

...
8
RECEPTACLE, 6 pin BS-22694GS

...
9
PIN, Roll, 4mm x 10 BS-81917GS

...
10
ASSY,Wire, Ground BS-193428AGS

...
13
HARNESS,Wire, Power BS-194274GS

...
14
BEARING BS-65791GS

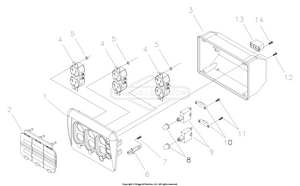

Control Panel (200432)

...
...
1
PANEL, Control BS-196898GS

...
2
COVER, Outlet Flip BS-197004GS

...
3
COVER, Back Panel BS-188890GS

...
4
OUTLET, 120V, 15/20A Dplx BS-197731GS

...
5
NUT, 5/32 Pal BS-189165GS

...
6
LIGHT, Led Panel BS-202951GS

...
7
SCREW, 3 x 6,Tapping BS-197958GS

...
8
CAP, Breaker BS-84198GS

...
9
BREAKER-CIRCUIT 20A BS-209872GS

...
10
BAR, Retaining BS-197805GS

...
12
SCREW, 3.5 x 14,Tapping BS-192241GS

...
13
HOUSING, Rcptcl, 6 Pin BS-22694GS

...
14
SCREW, 3 x 18,Tapping BS-82308GS

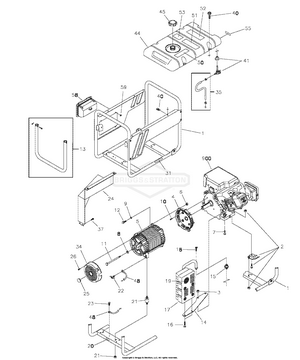

Main Unit (199779)

...
...
1
KIT, Cradle (Includes #'s 20 & 31) BS-197670GS

...
2
KIT, Vibration, Mount, 45° BS-194150GS

...
3
NUT, M8 Flange Serrated BS-67989GS

...
4
HOUSING, Engine Adapter BS-186058AGS

...
5
ASSY, Alternator (see page 5) BS-~NSP

...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS

...
11
HHCS, 5/16-24 x 7 BS-47480GS

...
13
KIT, Handle BS-194330GS

...
14
BRACKET, Muffler BS-191785GS

...
15
GASKET-EXHAUST BS-692237

...
17
MUFFLER BS-188301GS

...
19
SCREEN, Spark Arrest BS-83083GS

...
20
DECAL, Ground, Green BS-B4986GS

...
21
MOUNT-VIBRATION BS-194153GS

...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS

...
23

...
24
SHIELD, Heat BS-198037GS

...

...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS

...
31
DECAL, Exhaust Warning BS-196830GS

...
34
COVER, RBC, Plastic w/Cap BS-195422GS

...
35
KIT, Hose Formed BS-195207GS

...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS

...
40
KIT, Fuel Tank Hardware w/U-Clips BS-199433GS

...
--
U-CLIPS, (Optional Accessory) BS-199284GS

...
41
KIT, Valve, Fuel Tank BS-192980GS

...
44
ASSY., Tank, Fuel (Includes #'s 41, 50, 51, 52, 53 & 55) BS-198226GS

...
45
CAP, Fuel Tank BS-846987

...
48
WIRE, Ground BS-195373GS

...
50
DECAL, Gas Fill BS-188333GS

...
51
DECAL, Danger BS-194799GS

...
52
DECAL, Start Instructions BS-189235GS

...
53
DECAL, Warning, CO BS-202997GS

...
55
DECAL, Shut-Off, Fuel BS-197798GS

...
58
ASSY, Control Panel BS-200430GS

...
--
MANUAL, Operator's Not Illustrated BS-201617GS

...
--
BOTTLE, Oil Not Illustrated BS-100005

...
--
CORD, Power Not Illustrated BS-206775GS

...
--
KIT, Decals Not Illustrated BS-198225GS

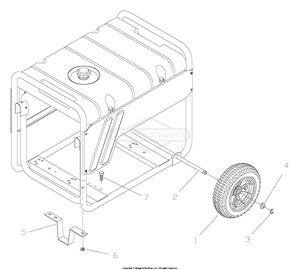

Wheel Kit (197596)

...
...
1


...
3
E-RING BS-703977

...
5
SUPPORT, Wheel Kit BS-B1764GS

...
6
NUT, M8 Flange Serrated BS-67989GS

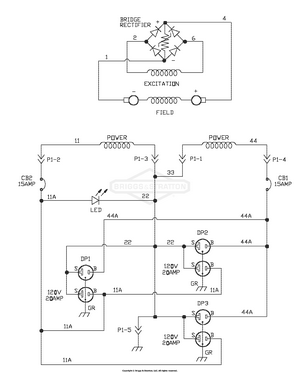

Wiring Diagram (197774)

...

No Parts Available for this Schematic

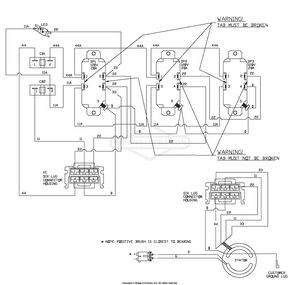

Wiring Schematic (197774)

...

No Parts Available for this Schematic

...
...
...
