product name

Briggs & Stratton 020712-00 - 2,700 PSI Troy-Bilt

Model: 020712-00 - 2,700 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

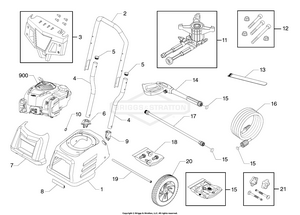

Main Unit (80027316)

...
...
1
BASE (Includes Item 10) BS-705908
...
2
HANDLE BS-705396
...
3
BILLBOARD BS-771744
...
--
CLIP BS-B1797GS
...
4
BRACKET (Includes Item 10) BS-771745
...
5
PLUG, Hole BS-189332GS
...
6
GROMMET (Includes Item 10) BS-707446
...
7
SHROUD-FRONT BS-707445
...
8
MOUNT-VIBRATION BS-707443
...
9
GROMMET (Includes Item 10) BS-707449
...
10
PUSHNUT BS-315543GS
...
11
PUMP BS-707970
...
12
KIT, Hardware, Pump Mounting BS-700223
...
13
STRAP BS-705748
...
14
GUN BS-84003228
...
15
KIT-O-RING BS-705001
...
16
HOSE ASSEMBLY BS-84006753
...
17
WAND-QC BS-706595
...
18
KIT-QC NOZZLES BS-706559
...
--
NOZZLE-QC RED BS-707450
...
--
NOZZLE, QC, Yellow BS-195983AFGS
...
--
NOZZLE, QC, White BS-195983AMGS
...
--
NOZZLE, QC, Black BS-198841GS
...
19
AXLE (Includes Item 10) BS-705397
...
20
WHEEL (Includes Item 10) BS-705405
...
21
KIT, Hardware, Handle BS-705848
...
900
* ENGINE BS-104M02-0126-F1
...
--
KEY (Not Illustrated) BS-23139GS
...
--
OIL-4 CYCLE 30W 18OZ. (Not Illustrated) BS-100005
...
--
DECAL-Warning Spark (Not Illustrated) BS-705851
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
TAG, Warning, English (Not Illustrated) BS-705854
...
--
TAG-HANG, QUICKSTART (Not Illustrated) BS-705853
...
--
PUMP Saver (Optional Accessory) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory) BS-6160

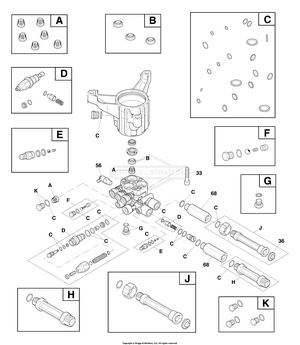

Pump (80021777SV)

...
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
56
VALVE, Thermal Relief BS-208673GS
...
68
FITTING BS-707377
...
A
* KIT, Check Valve BS-317897GS
...
B
KIT. Water Seal BS-204084GS
...
C
* KIT-O-RING BS-707572
...
D
* KIT, Unloader BS-706610
...
E
*KIT, Chemical Injector BS-317787GS
...
F
KIT, EZ START BS-200349GS
...
G
* KIT, Grub Screw & Washer BS-200350GS
...
H
* FITTING BS-201497GS
...
J
* KIT, Water Inlet BS-201496GS
...
K
* KIT, Plug BS-317057GS
...
--
PUMP Saver (Optional Accessory - Not Included) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH BS-6059
...
xx
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner BS-6160
...
...
...
