product name

Briggs & Stratton 020685-01 - 3,100 PSI Briggs & Stratton

Model: 020685-01 - 3,100 PSI

Save
 Part Not Listed?Part Not Listed?
product name

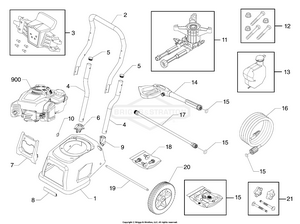

Main Unit (80022379)

...
...
1
BASE BS-707988
...
2
HANDLE BS-707971
...
3
BILLBOARD BS-706920
...
--
CLIP BS-B1797GS
...
4
HANDLE-LOWER BS-707448
...
5
PLUG, Hole BS-189332GS
...
6
GROMMET BS-707446
...
7
SHROUD BS-707208
...
8
MOUNT-VIBRATION BS-707443
...
9
GROMMET BS-707449
...
10
E-RING BS-704293
...
11
PUMP BS-707230
...
12
KIT, Hardware, Pump Mounting BS-700223
...
13
TANK-CHEMICAL BS-708963
...
--
CAP-CHEMICAL TANK BS-312369GS
...
--
DECAL-WARNING BS-709975
...
14
GUN BS-84003228
...
15
KIT-O-RING BS-705001
...
16
HOSE ASSEMBLY BS-84006753
...
17
WAND-QC BS-706595
...
18
Kit, Quick Connect Nozzles BS-707182
...
--
NOZZLE-QC, RED BS-709745
...
--
NOZZLE, QC, Yellow BS-195983AKGS
...
--
NOZZLE-QC WHITE BS-195983VGS
...
--
NOZZLE, QC, Black BS-198841GS
...
19
AXLE BS-707991
...
20
KIT, Wheel BS-707442
...
21
KIT, Hardware, Handle BS-705848
...
900
ENGINE BS-121P02-0001-F1
...
--
KEY (Not Illustrated) BS-23139GS
...
--
OIL-4 CYCLE 30W 18OZ. (Not Illustrated) BS-100005
...
--
DECAL-Warning Spark (Not Illustrated) BS-705851
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
TAG, Warning, English (Not Illustrated) BS-705854
...
--
PUMP Saver (Optional Accessory - Not Illustrated) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory - Not Illustrated) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory - Not Illustrated) BS-6160

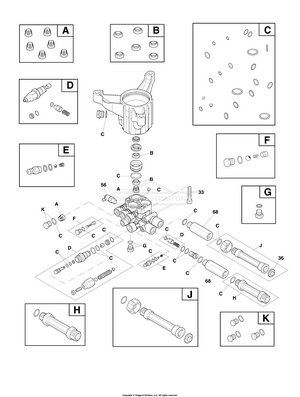

Pump (80022459)

...
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
56
VALVE, Thermal Relief BS-208673GS
...
68
FITTING BS-707377
...
A
* KIT, Check Valve (Refer to Footnote *) BS-317897GS
...
B
* KIT, Water Seals (Refer to Footnote *) BS-204084GS
...
C
* KIT-O-RING (Refer to Footnote *) BS-707342
...
D
* KIT, Unloader (Refer to Footnote *) BS-706610
...
E
*KIT, Chemical Injector (Refer to Footnote *) BS-317787GS
...
F
KIT, EZ START (Refer to Footnote *) BS-200349GS
...
G
* KIT, Grub Screw & Washer (Refer to Footnote *) BS-200350GS
...
H
* FITTING (Refer to Footnote *) BS-201497GS
...
J
* KIT, Water Inlet (Refer to Footnote *) BS-201496GS
...
K
* KIT-PLUG (Refer to Footnote *) BS-706780
...
--
PUMP Saver (Optional Accessory - Not Included) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner BS-6160
...
...
...
