product name

Briggs & Stratton 020607-00 - 2,800 PSI Craftsman

Model: 020607-00 - 2,800 PSI

Save
 Part Not Listed?Part Not Listed?
product name

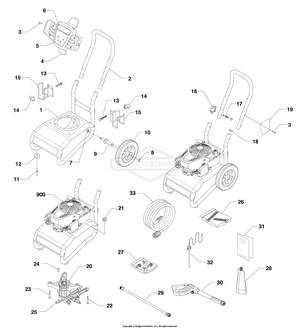

Main Unit

...
...
1
BASE BS-80005799
...
2
HANDLE BS-314787BN
...
3
CLIP BS-B1797GS
...
4
BILLBOARD BS-315375
...
5
DECAL, NOZZLE BS-319237
...
6
DECAL, LOGO BS-316087
...
7
NUT BS-80004408
...
8
E-RING BS-80005401
...
9
AXLE BS-315134GS
...
10
WHEEL BS-314165GS
...
11
BLIND RIVET BS-188194GS
...
12
MOUNT, Rubber Donut BS-87841GS
...
13
CARRIAGE BOLT, 1/4" - 20 x 1-3/4" BS-31669GS
...
14
KNOB, Handle BS-194289GS
...
15
WIREFORM BS-206566GS
...
16
KNOB BS-80004457
...
17
CARRIAGE BOLT BS-204662
...
18
PLUG, Hole BS-189332GS
...
19
TAG, jHANG, WARNING BS-80009058
...
20
PUMP BS-318645
...
21
NUT, Hex Locking Flange M8 BS-67989GS
...
22
SHCS, M8-1.25 x 60 BS-314171
...
23
SHCS, M8 -1.25 x 80 BS-314172
...
24
KEY BS-23139GS
...
25
VALVE, Thermal Relief BS-208673GS
...
26
STRAP, BILLBOARD BS-313183
...
27
KIT, NOZZLES BS-80008048
...
28
100005 OIL 18OZ. (EA) BS-100005WEB
...
29
WAND BS-80011042
...
30
GUN BS-84003228
...
31
MANUAL, OPERATOR BS-80012020
...
32
Hose, Chemical BS-204658GS
...
900
Engine *See Footnote BS-122R02-0008-F1
...
--
DECAL SHEET, WARNINGS BS-705920
...
--
DECAL, Shroud BS-80009760
...
--
DECAL, Base BS-80007465
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory - Not Included) BS-6059
...
--
PERFECT MIX CONCRETE BRICK & TILE CLEANER (Optional Accessory - Not Included) BS-6060
...
--
ACC, KIT, PUMP SAVER, 10.7-OZ B&S, EN/FR BS-6151
...
--
Project Pro® PerfectMix™ Multi-Purpose And Vehicle Cleaner BS-6159

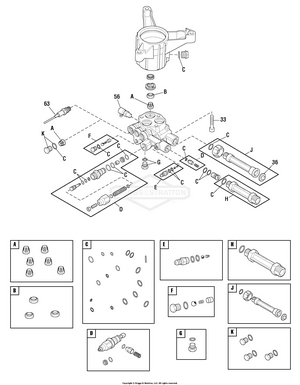

Pump (318645)

...
...
33
SCREW BS-204087GS
...
36
FILTER-GARDEN HOSE BS-B2384GS
...
56
VALVE-THERMO RELIEF BS-208673GS
...
63
THROTTLE CONTROL BS-312503GS
...
A
KIT-CHECK VALVE BS-317897GS
...
B
KIT. Water Seal BS-204084GS
...
C
KIT-O-RING BS-319404GS
...
D
KIT-UNLOADER BS-706610
...
E
KIT-CHEMICAL INJ BS-317787GS
...
F
KIT-EASY START BS-200349GS
...
G
SCREW-GRUB BS-200350GS
...
H
FITTING BS-201497GS
...
J
KIT-WATER INLET BS-201496GS
...
K
KIT-PLUG BS-317057GS
...
--
PUMP SAVER BS-6039
...
...
...
