product name

Briggs & Stratton 020585A-00 - 3,300 PSI Murray

Model: 020585A-00 - 3,300 PSI Murray

Save
 Part Not Listed?Part Not Listed?
product name

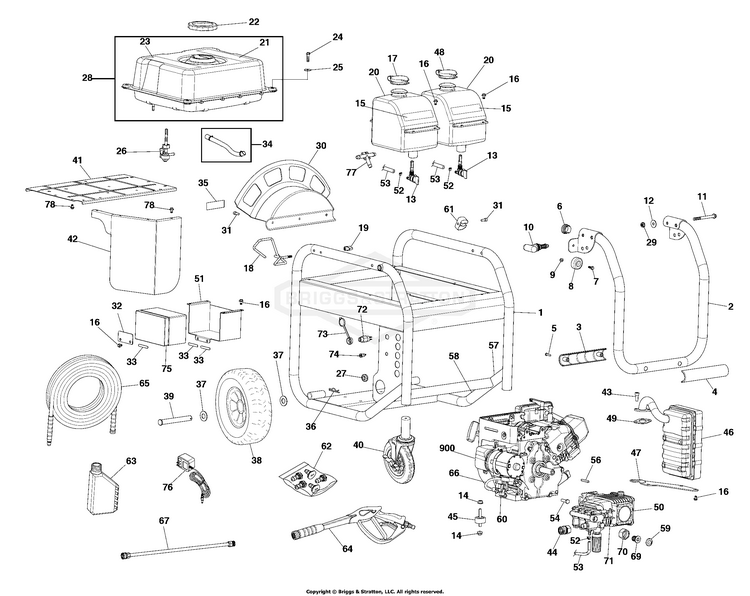

Main Unit (80027931)

...
...
1
BASE BS-771750
...
2
HANDLE BS-313252GS
...
3
GRIP, Handle BS-316502GS
...
4
GRIP, Handle BS-316501GS
...
6
CAP, Plug BS-316712GS
...
7
SCREW, M6 x 18 BS-706865
...
8
MOUNT, Vibration BS-316713GS
...
10
T-KNOB BS-316732GS
...
11
SCREW BS-316508GS
...
12
WSHR, 25.4 X 8.45 X 1.4 BS-B2495GS
...
13
VALVE, Chemical Tank BS-317106GS
...
15
DECAL BS-316726GS
...
16
SCREW, M6 x 12 BS-706152
...
17
CAP, Chemical Tank BS-316762GS
...
18
WIREFORM BS-316500GS
...
19
KNOB, Handle BS-194289GS
...
20
TANK, Chemical BS-315530GS
...
21
DECAL BS-316723GS
...
22
CAP, Fuel BS-316670GS
...
23
DECAL BS-316778GS
...
24
SCREW BS-706866
...
25
WASHER BS-312005GS
...
26
VALVE, Fuel BS-209417GS
...
27
GROMMET BS-706895
...
28
TANK, Fuel BS-319972GS
...
29
NUT BS-316509GS
...
30
WRAP, Hose BS-316374GS
...
31
SHCS, M6-1.0 X 16 BS-64182GS
...
32
COVER, Battery BS-316729GS
...
33
PAD, Rubber BS-318148GS
...
34
LINE, Fuel BS-791745
...
35
DECAL, Fuel Shut Off BS-197798GS
...
36
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
38
WHEEL BS-316406GS
...
39
AXLE BS-317577GS
...
40
WHEEL, Caster BS-316405GS
...
41
HEATSHIELD BS-316504GS
...
42
HEATSHIELD BS-316505GS
...
43
SCREW BS-798517
...
44
FITTING BS-703824
...
45
VIBRATION MOUNT, Double Ended BS-21217GS
...
46
MUFFLER BS-188301GS
...
47
BRACKET, Muffler BS-191785GS
...
48
CAP, Chemical Tank BS-316763GS
...
49
GASKET, Exhaust BS-798516
...
50
PUMP BS-317944GS
...
51
TRAY, Battery BS-316511GS
...
52
Clamp, Hose band BS-48031GGS
...
53
HOSE-CHEMICAL BS-705076
...
54
BOLT BS-703801
...
56
KEY BS-23139DGS
...
57
DECAL SHEET, WARNINGS BS-705920
...
58
DECAL BS-316727GS
...
59
FILTER, Garden Hose BS-B2384GS
...
60
SOLENOID, Starter BS-846820
...
61
CLIP BS-316503GS
...
62
KIT, QC Nozzles BS-208324GS
...
--
NOZZLE, QC, Black BS-198841GS
...
--
Nozzle, QC, Red BS-195983NGS
...
--
NOZZLE, QC, Green (BUSE-RACCORDS RAPIDES VERT) BS-195983QGS
...
--
Nozzle, QC, Yellow BS-195983PGS
...
--
NOZZLE-QC WHITE (BUSE-RACCORDS RAPIDES BLANCHE) BS-195983RGS
...
63
OIL BOTTLE (Qty 2 Required) BS-316768GS
...
64
GUN BS-704622
...
65
HOSE BS-316467GS
...
66
CABLE, Starter BS-690795
...
67
EXTENSION-QC BS-707471
...
69
FITTING BS-195894GS
...
70
CONNECTOR BS-195893GS
...
71
VALVE, Thermal Relief BS-208673GS
...
72
SWITCH, Key BS-692318
...
73
BOOT-RUBBER JACK BS-312687GS
...
74
ASSY., Jack Coaxial BS-208511GS
...
75
BATTERY BS-316543GS
...
76
CHARGER, Battery BS-84002790
...
77
BARB-HOSE BS-192635GS
...
78
SCREW BS-771769
...
900
*Engine BS-15T205-0126-G8
...
--
WRENCH, Allen (Not Illustrated) BS-316782GS
...
--
CABLE, Battery, Red (Not Illustrated) BS-317898GS
...
--
CABLE, Battery, Black (Not Illustrated) BS-317943GS
...
--
CLIP (Not Illustrated) BS-706894
...
--
SET, Key (Not Illustrated) BS-691959
...
--
OIL FUNNEL (Not Illustrated) BS-317365GS
...
--
PUMP Saver (Optional Accessory - Not Included) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory - Not Included) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory - Not Included) BS-6160
...
--
KIT-O-RING (Optional Accessory - Not Included) BS-705001

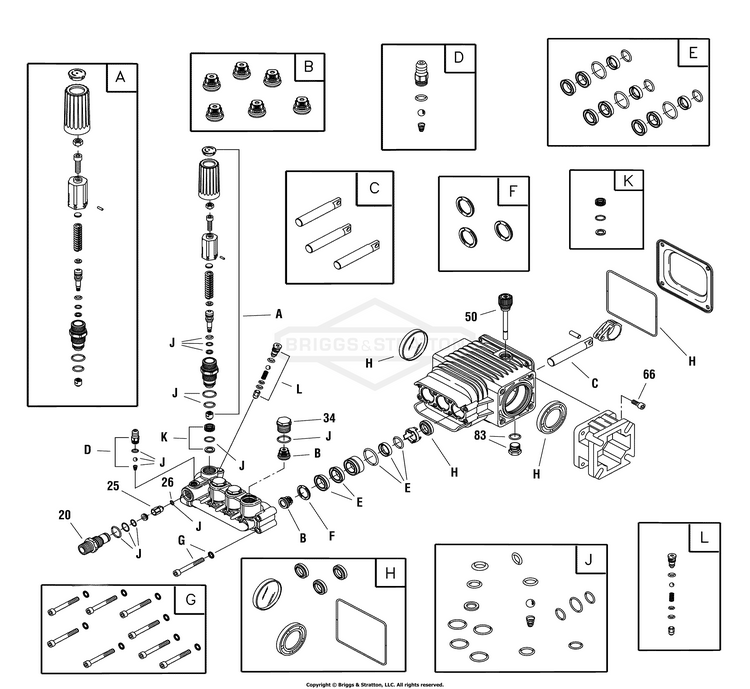

Pump (316158)

...
...
20
INJECTOR, Detergent 3/8NPT BS-198851GS
...
25
JET BS-204860GS
...
26
O-RING BS-204859GS
...
34
CAP, Check Valve BS-198850GS
...
50
CAP, Oil Dispstick BS-198849GS
...
66
Screw, M8 x 20 BS-198297GS
...
83
PLUG-DRAIN BS-203034GS
...
A
* KIT, Unloader BS-198736GS
...
B
* KIT, Check Valve BS-198843GS
...
C
* KIT, Piston BS-198844GS
...
D
* KIT, Chemical Injection BS-192914GS
...
E
* KIT, Water Seals BS-198845GS
...
F
* KIT, Support Ring BS-198848GS
...
G
KIT, Hardware, Pump Head BS-198852GS
...
H
* KIT, Oil Seals BS-198846GS
...
J
* KIT, O-Ring Maintenance BS-198847GS
...
K
* KIT, Unloader Seat BS-202902GS
...
L
* KIT, Unloader BS-202800GS
...
--
FILTER, Garden Hose (Not Illustrated) BS-B2384GS
...
--
PUMP Saver (Optional Accessory) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory) BS-6160
...
...
...
