Briggs & Stratton 020572-01 - 3,000 PSI Craftsman

Model: 020572-01 - 3,000 PSI

Save
 Part Not Listed?Part Not Listed?
product name

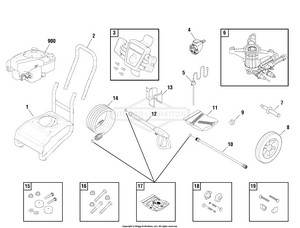

Main Unit (80008034)

...
...
1
BASE BS-704064
...
2
HANDLE BS-314787BNGS
...
3
BILLBOARD BS-704639
...
--
CLIP BS-B1797GS
...
4
NOZZLE BS-314509GS
...
5
HOSE BS-204658GS
...
6
PUMP BS-317593GS
...
--
FILTER BS-B2384GS
...
--
VALVE-THERMAL RELIEF BS-208673GS
...
7
AXLE BS-315134GS
...
8
WHEEL BS-314165GS
...
9
NUT, 3/8-16 BS-703347
...
10
WAND-QC BS-706595
...
11
KIT-STRAP BS-317099GS
...
12
GUN BS-84003228
...
13
WIREFORM BS-206566GS
...
14
HOSE BS-709464
...
15
MOUNT-VIBRATION BS-192310GS
...
16
KIT-HARDWARE PUMP MOUNTING BS-315139GS
...
17
KIT-O-RING BS-705001
...
18
KIT-HANDLE BS-205910GS
...
19
KIT-HANDLE BS-B2203GS
...
--
KEY (Not Illustrated) BS-23139GS
...
--
E-RING (Not Illustrated) BS-704293
...
--
100005 OIL 18OZ. (EA) (Not Illustrated) BS-100005WEB
...
--
PLUG-HOLE (Not Illustrated) BS-189332GS
...
--
TAG-WARNING (Not Illustrated) BS-705752
...
--
PUMP SAVER (Optional Accessory - Not Included) BS-6039
...
--
HOSE-CHEMICAL (Optional Accessory - Not Included) BS-705076

Pump

...
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
63
THROTTLE CONTROL BS-312503GS
...
A
* KIT, Check Valve (Refer to Footnote*) BS-200344GS
...
B
KIT. Water Seal (Refer to Footnote*) BS-204084GS
...
C
* KIT, O-Ring (Refer to Footnote*) BS-200346GS
...
D
KIT, UNLOADER (Refer to Footnote*) BS-772235
...
E
* KIT, Chemical Injection (Refer to Footnote*) BS-192914GS
...
F
* KIT, Easy Start (Refer to Footnote*) BS-200349GS
...
G
* KIT, Grub Screw & Washer (Refer to Footnote*) BS-200350GS
...
H
* FITTING (Refer to Footnote*) BS-201497GS
...
J
* KIT, Water Inlet (Refer to Footnote*) BS-201496GS
...
K
* KIT, Plug (Refer to Footnote*) BS-317056GS
...
--
VALVE, Thermal Relief (Not Illustrated) BS-208673GS
...
--
PUMP Saver BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner BS-6160
...
...
...
