Briggs & Stratton 020531-00 - 2,500 PSI Craftsman

Model: 020531-00 - 2,500 PSI

Save
 Part Not Listed?Part Not Listed?
product name

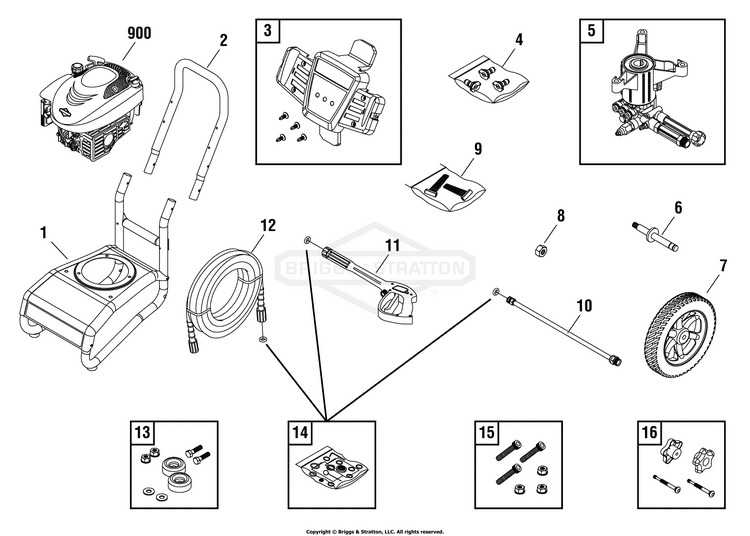

Main Unit (317506)

...
...
1
BASE BS-703861
...
2
HANDLE BS-314787BUGS
...
3
BILLBOARD BS-317552GS
...
--
CLIP BS-B1797GS
...
4
KIT, QC Nozzle BS-201324GS
...
--
NOZZLE, QC Green BS-195983QGS
...
--
NOZZLE, QC Red BS-195983AEGS
...
--
NOZZLE-QC Black BS-198841GS
...
5
PUMP BS-207365GS
...
6
AXLE BS-315134GS
...
7
WHEEL BS-313835GS
...
8
NUT, 3/8-16 BS-703347
...
9
KIT, Strap BS-317099GS
...
10
WAND-QC BS-706595
...
11
GUN BS-84003228
...
12
HOSE ASSEMBLY BS-84006753
...
13
MOUNT, Vibration BS-192310GS
...
14
KIT-O-RING BS-705001
...
15
KIT, Hardware, Pump Mounting BS-315139GS
...
16
KIT, Handle BS-205910GS
...
900
* ENGINE BS-126M02-0342-F1
...
--
MANUAL, Operator's (Not Illustrated) BS-317528GS
...
--
100005 OIL 18OZ. (EA) (Not Illustrated) BS-100005WEB
...
--
KEY (Not Illustrated) BS-23139GS
...
--
RETAINER, RING, 1/2 (Not Illustrated) BS-703976
...
--
PLUG-HOLE (Not Illustrated) BS-189332GS
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
DECAL SHEET, WARNINGS (Not Illustrated) BS-705920
...
--
LABEL, Warning (Not Illustrated) BS-794693
...
--
TAG, Warning (Not Illustrated) BS-195015GS
...
--
House Wash Concentrate (Optional Accessory) BS-67300GS
...
--
Deck Wash Concentrate (Optional Accessory) BS-67301GS
...
--
Vehicle/Boat Wash Concentrate (Optional Accessory) BS-67302GS
...
--
Degreaser Concentrate (Optional Accessory) BS-67303GS

Pump (201112)

...
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
A
* KIT, Check Valve BS-200344GS
...
B
KIT. Water Seal BS-204084GS
...
C
* KIT, O-Ring BS-200346GS
...
D
KIT, UNLOADER BS-772235
...
E
* KIT, Chemical Injection BS-192914GS
...
F
* KIT, Easy Start BS-200349GS
...
G
* KIT, Grub Screw & Washer BS-200350GS
...
H
* FITTING BS-201497GS
...
J
* KIT, Water Inlet BS-201496GS
...
K
* KIT, Plug BS-317056GS
...
--
VALVE, Thermal Relief (Not Illustrated) BS-208673GS
...
--
PUMP Saver (Optional Accessory) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory) BS-6160
...
--
OIL BOTTLE (Optional Accessory) BS-6033
...
...
...
