Briggs & Stratton 020293-1 - 2,550 PSI Troy-Bilt

Model: 020293-1 - 2,550 PSI Troy-Bilt

Save
Part Not Listed?Part Not Listed?
product name

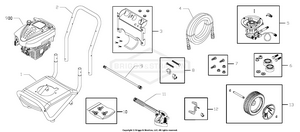

Main Unit

...
...
1
ASSEMBLY, Base BS-201560GS

...

...
3
KIT, Billboard with Clips BS-201371GS

...
--
Clips, Tree BS-195964GS

...
--
GROMMET BS-30809GS

...
4
HOSE ASSEMBLY BS-84006753

...
5
ASSEMBLY, Pump BS-202605GS

...
--
VALVE, Thermal Relief BS-208673GS

...

...
6
KIT, Vibration Mount BS-192310GS

...
7
KIT, Pump Mounting Hardware BS-192529GS

...
8
KIT, Handle Connector BS-B2203GS

...
9
WAND-QC BS-706595

...
10
KIT, Nozzles BS-201324GS

...
--
NOZZLE, Soap BS-198841GS

...
--
NOZZLE, QC, Red BS-195983AEGS

...
--
NOZZLE, QC, Green BS-195983QGS

...

...
12
KIT, Gun Holder BS-201661GS

...
13
KIT, Wheel BS-202483GS

...
--

...
--

...
xx
RETAINER, RING, 1/2 BS-703976

...
--
Manual, Operator’s Not Illustrated BS-206208GS

...
--
TAG-WARNING Not Illustrated BS-705752

...
--
COVER, Shroud/Label Assy Not Illustrated BS-699869

...
--
DECAL, 6.75HP Not Illustrated BS-201331GS

...
--
CAP, Tank Assy Not Illustrated BS-790245

...
--
BOTTLE, Oil Not Illustrated BS-100005

...
--
GOGGLES Not Illustrated BS-87815GS

...
--
KIT-O-RING Optional Accessory BS-705001

...
--
PUMP SAVER Optional Accessory BS-6039

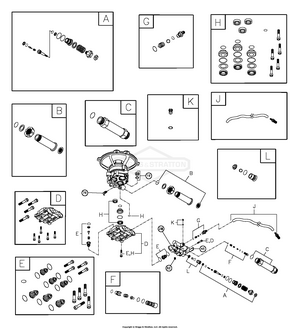

Pump

...
...
19
CAP, Oil BS-190571GS

...
28
MANIFOLD BS-190627GS

...

...
62
CAP, 1/8 BS-190581GS

...
76
VALVE, Thermal Relief BS-208673GS

...
A
KIT, UNLOADER STEM Service kits include all parts shown within the box. BS-190594GS

...
B
KIT, WATER INLET, ALUM Service kits include all parts shown within the box. BS-190632GS

...
C
FITTING Service kits include all parts shown within the box. BS-201497GS

...
D
KIT, HEAD ALUMINIUM Service kits include all parts shown within the box. BS-203631GS

...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-193806GS

...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS

...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS

...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS

...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS

...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS

...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS

...
--
FILTER, Inlet Not Illustrated BS-B2384GS

...
--
FILTER, Inlet, Bag of 10 Optional Accessory BS-186452GS
...
...
...
