Briggs & Stratton 020291-1 - 2,500 PSI Brute

Model: 020291-1 - 2,500 PSI Brute

Save
 Part Not Listed?Part Not Listed?
product name

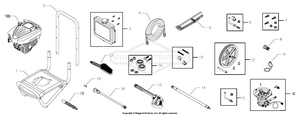

Main Unit

...
...
1
BASE ASSEMBLY BS-201769GS
...
2
HANDLE BS-B201594GS
...
3
CHEMICAL TANK ASSEMBLy, With Clips BS-201828GS
...
--
CLIP BS-195964GS
...
--
KIT, Valve BS-192980GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
BRUSH, FLOOR BS-100510GS
...
6
KIT, Hook, Handle BS-194264GS
...
7
KIT, Pump Mounting Hardware BS-192529GS
...
8
ADPTR, BAYONET AL-8 BS-B1051GS
...
9
CAP, Chem Container BS-B3222EGS
...
10
PUMP BS-202605GS
...
--
KEY BS-23139GS
...
--
VALVE, Thermal Relief BS-208673GS
...
11
KIT, Hook, Base BS-192309GS
...
12
KIT, Wheel BS-196439GS
...
--
RETAINER, RING, 1/2 BS-703976
...
--
AXLE BS-195454GS
...
13
KIT, Handle Connector BS-B2203GS
...
14
EXTENSION BS-88934GS
...
15
GUN BS-84003228
...
16
KIT, Vibration Mount BS-192310GS
...
17
BRUSH, Utility BS-88185GS
...
18
WAND-ADJUSTABLE BS-205015CGS
...
19
ORIFICE BS-B1236CGS
...
20
HANDLE, Brush BS-95598GS
...
--
MANUAL,Operator's (Not Illustrated) BS-203775GS
...
--
BOTTLE, Oil (Not Illustrated) BS-100005
...
--
GOGGLES (Not Illustrated) BS-87815GS
...
--
HOSE, Chemical (Not Illustrated) BS-A1040NGS
...
--
COVER (Not Illustrated) BS-282398
...
--
DECAL, Eng Shroud (Not Illustrated) BS-201628GS
...
--
LABEL, B&S Logo (Not Illustrated) BS-275171
...
--
TAG-WARNING (Not Illustrated) BS-705752
...
--
KIT-O-RING (Optional Accessory) BS-705001
...
--
PUMP SAVER (Optional Accessory) BS-6039

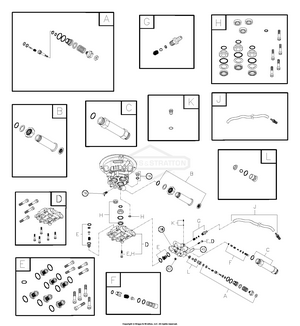

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER Service kit and include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ALUM Service kit and include all parts shown within the box. BS-190632GS
...
C
FITTING Service kit and include all parts shown within the box. BS-201497GS
...
D
KIT, HEAD ALUMINIUM Service kit and include all parts shown within the box. BS-203631GS
...
E
KIT, CHECK VALVES Service kit and include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kit and include all parts shown within the box. BS-190592GS
...
G
Kit, Chemical Injection Service kit and include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kit and include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kit and include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kit and include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kit and include all parts shown within the box. BS-193972GS
...
FILTER, Inlet Not Illustrated BS-B2384GS
...
FILTER, Inlet, Bag of 10 Optional Accessory BS-186452GS
...
...
...
