Briggs & Stratton 020291-0 - 2,500 PSI Brute

Model: 020291-0 - 2,500 PSI Brute

Save
 Part Not Listed?Part Not Listed?
product name

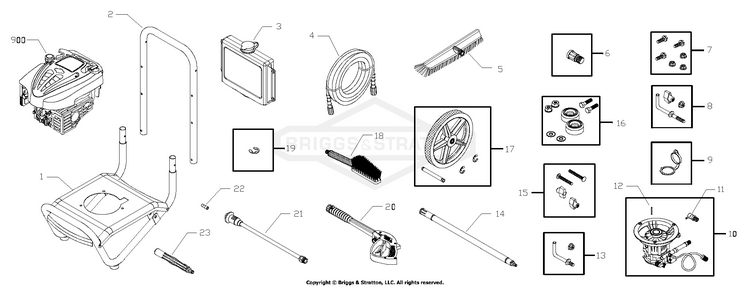

Main Unit

...
...
1
ASSY, Base BS-201769GS
...
2
HANDLE BS-B201594GS
...
3
ASSY, Chem Tank w/Clips BS-201828GS
...
Clip BS-195964GS
...
Kit, Fuel Valve BS-192980GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
BRUSH, FLOOR BS-100510GS
...
6
ADPTR, BAYONET AL-8 BS-B1051GS
...
7
KIT, Pump Mounting Hardware BS-192645GS
...
8
KIT, Hook, Handle BS-194264GS
...
9
CAP, Chem Container BS-B3222EGS
...
10
PUMP BS-207365GS
...
11
VALVE, Thermal Relief BS-208673GS
...
12
KEY BS-23139GS
...
13
KIT, Hook, Base BS-192309GS
...
14
EXTENSION BS-88934GS
...
15
KIT, Handle Connector BS-B2203GS
...
16
KIT, Vibration Mount BS-192310GS
...
17
KIT, Wheel BS-196439GS
...
18
BRUSH, Utility BS-88185GS
...
19
RETAINER, RING, 1/2 BS-703976
...
20
GUN BS-84003228
...
21
WAND-ADJUSTABLE BS-205015CGS
...
22
ORIFICE BS-B1236CGS
...
23
HANDLE, Brush BS-95598GS
...
MANUAL, Operator's Items Not Illustrated BS-201635GS
...
BOTTLE, Oil Items Not Illustrated BS-100005
...
GOGGLES Items Not Illustrated BS-87815GS
...
AXLE Items Not Illustrated BS-195454GS
...
HOSE, Chemical Items Not Illustrated BS-A1040NGS
...
TAG-WARNING Items Not Illustrated BS-705752
...
STABILIZER, Fuel Optional Accessory BS-5041D
...
KIT-O-RING Optional Accessory BS-705001
...
PUMP SAVER Optional Accessory BS-6039

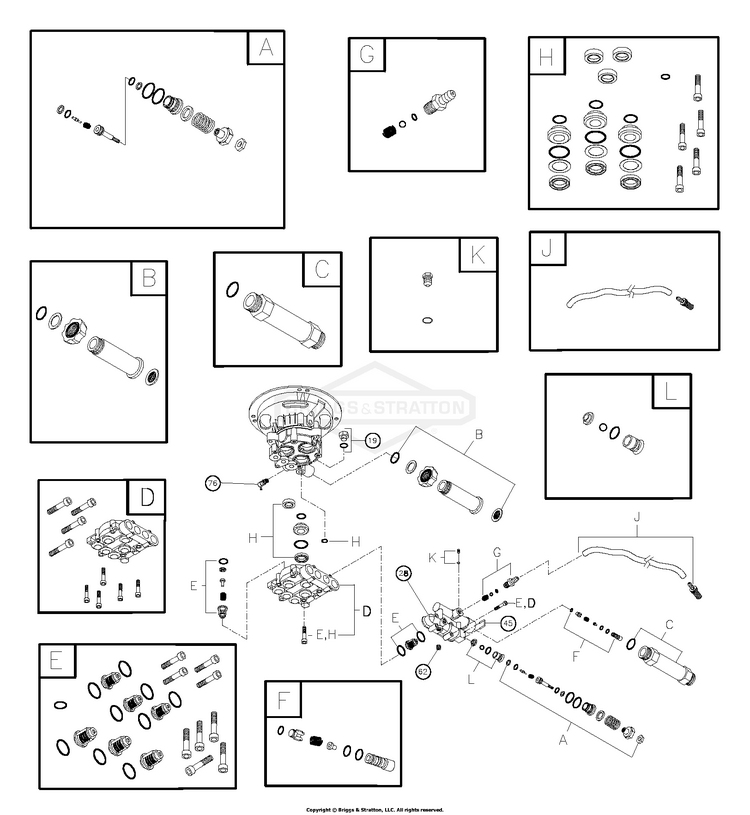

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER STEM Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ALUM Service kits include all parts shown within the box. BS-190632GS
...
C
FITTING Service kits include all parts shown within the box. BS-201497GS
...
D
KIT, HEAD ALUMINIUM Service kits include all parts shown within the box. BS-203631GS
...
E
KIT,CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
--
FILTER, Inlet Not Illustrated BS-B2384GS
...
...
...
