Briggs & Stratton 020290-1 - 2,000 PSI Brute

Model: 020290-1 - 2,000 PSI Brute

Save
 Part Not Listed?Part Not Listed?
product name

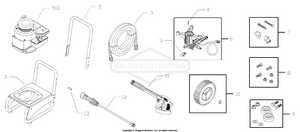

Main Unit (201623)

...
...
1
ASSY, Base BS-201625GS
...
2
HANDLE BS-B195960GS
...
3
HOSE ASSEMBLY BS-84006753
...
4
KEY BS-23139GS
...
5
VALVE, Thermal Relief BS-208673GS
...
6
ASSY, Pump BS-200303GS
...
7
KIT, Fastening Handle BS-B2203GS
...
8
KIT, Pump/Engine Mounting Hardware BS-200199GS
...
9
KIT, Vibration Mount BS-198766GS
...
10
KIT, Wheel BS-201643GS
...
11
GUN BS-84003228
...
12
WAND-ADJUSTABLE BS-205015CGS
...
13
ORIFICE BS-193609DGS
...
MANUAL, Operator's Not Illustrated BS-201624GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
GOGGLES Not Illustrated BS-87815GS
...
LABEL, Warning Not Illustrated BS-794693
...
RETAINER, RING, 1/2 Not Illustrated BS-703976
...
AXLE, Wheel Not Illustrated BS-201550GS
...
KIT, Decal, Srv Not Illustrated BS-201642GS
...
STABLIZIER, Fuel Optional Accessories BS-5041D
...
KIT, O-Ring Optional Accessories BS-100516GS
...
PUMP SAVER Optional Accessories BS-6039

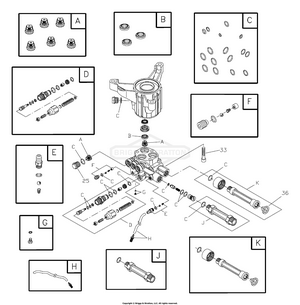

Pump (199415)

...
...
25
PLUG BS-201495GS
...
33
SCREW BS-204087GS
...
36
FILTER, Inlet BS-B2384GS
...
A
KIT, VALVES Service kit includes all parts shown within the box. BS-200344GS
...
B
KIT. Water Seal Service kit includes all parts shown within the box. BS-204084GS
...
C
KIT, O-RINGS Service kit includes all parts shown within the box. BS-200346GS
...
D
KIT, UNLOADER Service kit includes all parts shown within the box. BS-772235
...
E
KIT, HOSE TAIL Service kit includes all parts shown within the box. BS-192914GS
...
F
KIT, EZ START Service kit includes all parts shown within the box. BS-200349GS
...
G
KIT, GRUB SCREW & WASHER Service kit includes all parts shown within the box. BS-200350GS
...
H
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
J
KIT, OUTLET Service kit includes all parts shown within the box. BS-201497GS
...
K
KIT, WATER INLET Service kit includes all parts shown within the box. BS-201496GS
...
VALVE, Thermal Relief Not Illustrated BS-208673GS
...
PUMP SAVER Optional Accessories BS-6039
...
FILTER, Inlet Bag of 10 Optional Accessories BS-186452GS
...
OIL BOTTLE, Pump Optional Accessories BS-6033
...
...
...
