Briggs & Stratton 020242-1 - 3,000 PSI Troy-Bilt

Model: 020242-1 - 3,000 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

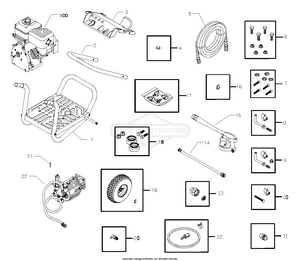

Main Unit

...
...
1
BASE BS-196695GS
...
2
HANDLE BS-P194567GS
...
3
ASSY, Billboard w/Clips BS-196788GS
...
CLIPS,Tree BS-195964GS
...
4
GROMMET BS-30809GS
...
5
HOSE-PRESSURE BS-206192GS
...
6
KIT, Engine Mounting Hardware BS-192318GS
...
7
KIT, Pump Mounting Hardware BS-192131GS
...
8
KIT, Hook, Lower Handle BS-193819GS
...
9
KIT, Hook, Upper Handle BS-194264GS
...
10
KIT, Handle Hardware BS-B2203GS
...
11
ADAPTER, Hose to Hose BS-95457GS
...
12
KIT, Chem Hose & Filter BS-192796GS
...
13
KIT, Inlet, Hose, Grdn, Srv BS-194004GS
...
14
WAND-QC BS-706595
...
15
GUN BS-B3263GS
...
16
E-RING BS-703977
...
17
KIT-QC NOZZLES BS-207471GS
...
Nozzle, QC, Black BS-195846ZZGS
...
NOZZLE-QC RED BS-195983AAGS
...
NOZZLE-QC YELLOW BS-195983XGS
...
NOZZLE, QC White BS-195983RGS
...
18
KIT,Vibration Mount BS-192310GS
...
19
KIT,Wheel BS-194509GS
...
20
VALVE, Thermal Relief BS-208673GS
...
21
KEY BS-23139DGS
...
22
Assy, Pump (see "Pump") BS-202005GS
...
MANUAL, Engine Not Illustrated BS-MS6737
...
MANUAL, Operator's Not Illustrated BS-197410GS
...
AXLE Not Illustrated BS-191267SGS
...
BOTTLE, Oil Not Illustrated BS-100005
...
GOGGLES Not Illustrated BS-87815GS
...
TAG-WARNING Not Illustrated BS-705752
...
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126
...
KIT-O-Ring Optional Accessories BS-100516GS
...
PUMP SAVER Optional Accessories BS-6039

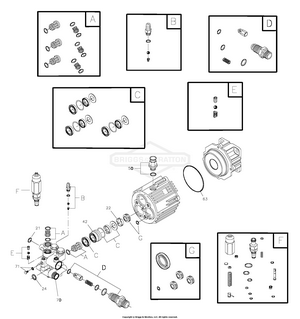

Pump

...
...
21
O-RING BS-194434GS
...
22
SPACER BS-190639GS
...
24
WASHER BS-190640GS
...
42
PISTON, Guide BS-190646GS
...
50
VENT CAP, with O-Ring BS-198160GS
...
63
O-RING BS-194435GS
...
70
PUMP HEAD BS-190654GS
...
71
GRUB SCREW & WASHER BS-190655GS
...
72
OIL BOTTLE (not shown) BS-190656GS
...
A
KIT, CHECK VALVE Service Kit includes all parts shown within the box. BS-190657GS
...
B
KIT, CHEMICAL INJECT Service Kit includes all parts shown within the box. BS-192914GS
...
C
KIT, SEAL WATER Service Kit includes all parts shown within the box. BS-190660GS
...
D
KIT, INJECTOR Service Kit includes all parts shown within the box. BS-194426GS
...
E
KIT, BALL & SPRING Service Kit includes all parts shown within the box. BS-194427GS
...
F
KIT, UNLOADER Service Kit includes all parts shown within the box. BS-193126GS
...
G
KIT, SEAL OIL Service Kit includes all parts shown within the box. BS-194425GS
...
...
...
