Briggs & Stratton 020210-2 - 3,700 PSI Troy-Bilt

Model: 020210-2 - 3,700 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

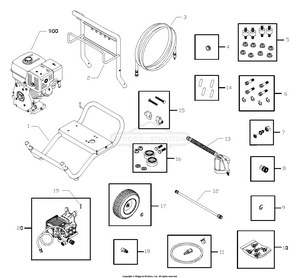

Main Unit

...
...
1
BASE BS-B194424GS
...
2
HANDLE BS-B196133GS
...
3
Hose BS-205734GS
...
4
GROMMET BS-30809GS
...
5
KIT, Engine Mounting Hardware BS-195294GS
...
6
KIT, Pump Mounting Hardware BS-192132GS
...
7
KIT, Garden Hose Inlet BS-199310GS
...
8
FITTING BS-703824
...
9
E-RING BS-703977
...
10
KIT, Spray Tips BS-207491GS
...
NOZZLE-QC RED BS-195983AGS
...
Nozzle, QC,Yellow BS-195983BGS
...
Nozzle, QC, Green BS-195983CGS
...
Nozzle, QC,White BS-195983DGS
...
Nozzle, QC, Black BS-195846ZZGS
...
11
KIT, Chemical Hose/Filter BS-192796GS
...
12
ASSY, Extension, QC BS-196315GS
...
13
GUN BS-704311
...
14
VINYL CAP BS-192126GS
...
15
KIT, Handle Fastening BS-B2203GS
...
16
KIT,Vibration Mount BS-192310GS
...
17
KIT,Wheel BS-194411GS
...
18
VALVE, Thermal Relief BS-208673GS
...
19
KEYSTOCK, 1/4X2 BS-703890
...
20
PUMP (see "Pump") BS-318207GS
...
AXLE Not Illustrated BS-191267RGS
...
MANUAL, Operator's Not Illustrated BS-198666GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
KIT, Decals, Srv Not Illustrated BS-196990GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories Not Illustrated BS-100126
...
KIT, O-Ring Optional Accessories Not Illustrated BS-100516GS
...
PUMP SAVER Optional Accessories Not Illustrated BS-6039

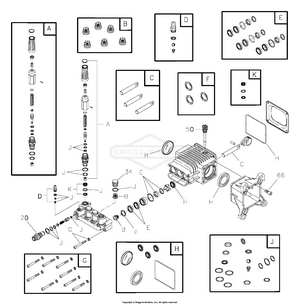

Pump

...
...
20
INJTR, Detergent 3/8NPT BS-198851GS
...
34
PLUG BS-198850GS
...
50
CAP, Oil Dipstick BS-198849GS
...
66
SCREW, M8 x 20 BS-198297GS
...
A
KIT, UNLOADER Service kit includes all parts shown within the box. BS-198736GS
...
B
KIT,VALVES Service kit includes all parts shown within the box. BS-198843GS
...
C
KIT, PISTON Service kit includes all parts shown within the box. BS-198844GS
...
D
KIT, HOSE TAIL Service kit includes all parts shown within the box. BS-192914GS
...
E
KIT,WATER SEALS Service kit includes all parts shown within the box. BS-198845GS
...
F
KIT, SUPPORT RING Service kit includes all parts shown within the box. BS-198848GS
...
G
KIT, PUMP HEAD HARDWARE Service kit includes all parts shown within the box. BS-198852GS
...
H
KIT, OIL SEALS Service kit includes all parts shown within the box. BS-198846GS
...
J
KIT, O-RINGS Service kit includes all parts shown within the box. BS-198847GS
...
K
KIT, SEAT Service kit includes all parts shown within the box. BS-198158GS
...
FILTER, Inlet Not Illustrated BS-B2384GS
...
VALVE, Thermal Relief Not Illustrated BS-208673GS
...
BOTTLE, Oil, Pump Optional Accessories Not Illustrated BS-6033
...
PUMP SAVER Optional Accessories Not Illustrated BS-6039
...
FILTER, Inlet Bag of 10 Optional Accessories Not Illustrated BS-186452GS
...
...
...
