Briggs & Stratton 020210-1 - 3,700 PSI Troy-Bilt

Model: 020210-1 - 3,700 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

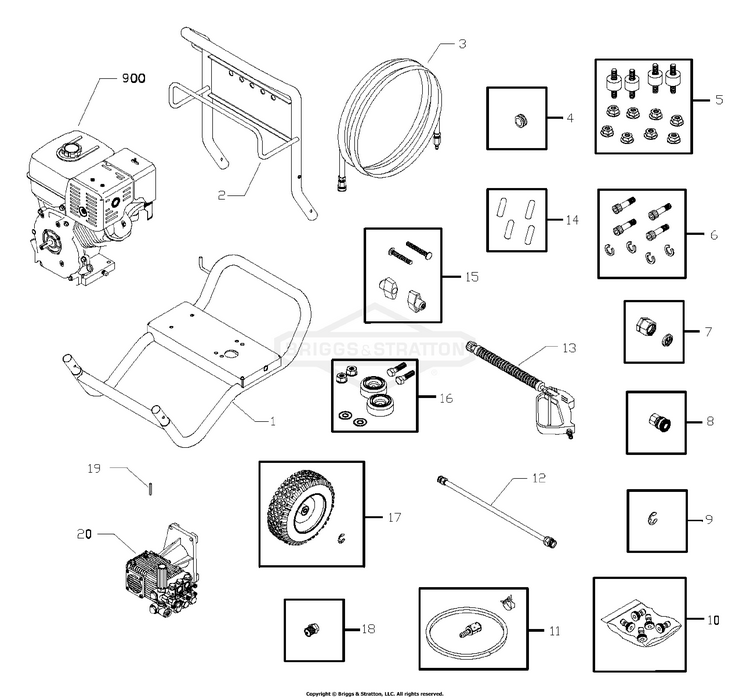

Main Unit

...
...
1
BASE BS-B194424GS
...
2
HANDLE BS-B196133GS
...
3
Hose BS-205734GS
...
4
GROMMET BS-30809GS
...
5
KIT, Engine Mounting Hardware BS-195294GS
...
6
KIT, Pump Mounting Hardware BS-192132GS
...
7
KIT, Garden Hose Inlet BS-194004GS
...
8
FITTING BS-703824
...
9
E-RING BS-703977
...
10
KIT, Spray Tips BS-207491GS
...
11
KIT, Chemical Hose/Filter BS-192796GS
...
12
ASSY, Extension BS-196315GS
...
13
GUN BS-704311
...
14
CAP,Vinyl BS-192126GS
...
15
KIT, Handle Fastening BS-B2203GS
...
16
KIT, Vibration Mount BS-192310GS
...
17
KIT, Wheel BS-194411GS
...
18
VALVE, Thermal BS-195016GS
...
19
KEYSTOCK, 1/4X2 BS-703890
...
20
ASSY, Pump (see "Pump") BS-195110GS
...
MANUAL, Operator's Not Illustrated BS-196314GS
...
KIT, Decals, Srv Not Illustrated BS-196990GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
AXLE Not Illustrated BS-191267RGS
...
NOZZLE-QC RED Not Illustrated BS-195983AGS
...
NOZZLE, QC,Yellow Not Illustrated BS-195983BGS
...
NOZZLE, QC, Green Not Illustrated BS-195983CGS
...
NOZZLE, QC,White Not Illustrated BS-195983DGS
...
Nozzle, QC, Black Not Illustrated BS-195846ZZGS

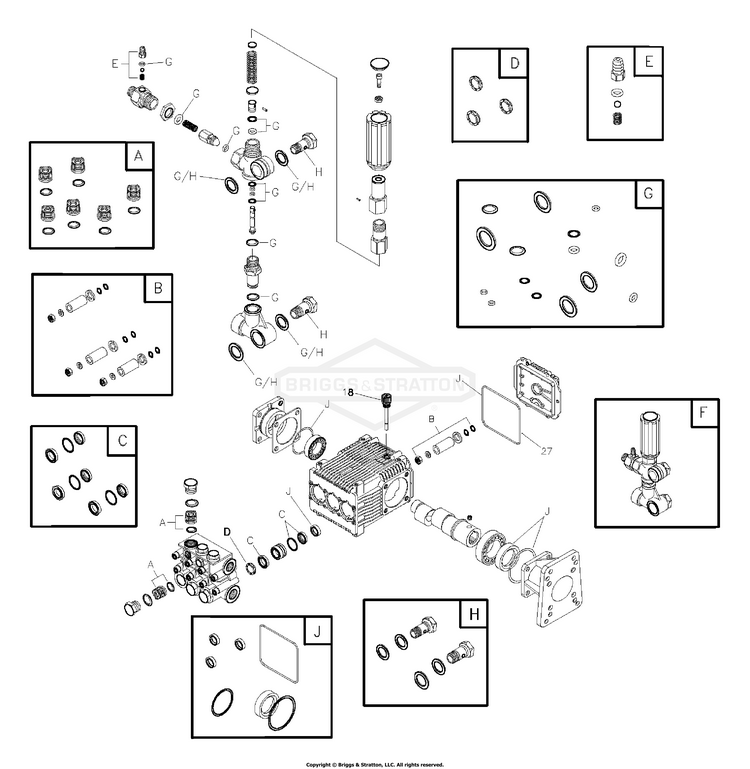

Pump

...
...
18
CAP, Oil Dipstick BS-198849GS
...
27
O-RING, Square BS-116B2126GS
...
A
KIT,Valve Service kits include all parts shown within the box. BS-200B1410GS
...
B
KIT, Piston Service kits include all parts shown within the box. BS-193990GS
...
C
KIT,Water Seals Service kits include all parts shown within the box. BS-203B2327GS
...
D
KIT, Support Rings Service kits include all parts shown within the box. BS-204B1410GS
...
E
KIT, Hose Tail Service kits include all parts shown within the box. BS-192914GS
...
F
UNLOADER, Complete Service kits include all parts shown within the box. BS-153B2126GS
...
G
KIT, O-Rings Service kits include all parts shown within the box. BS-193991GS
...
H
KIT, Bolts Service kits include all parts shown within the box. BS-199894GS
...
J
KIT, Oil Seals Service kits include all parts shown within the box. BS-202B1410GS
...
FILTER, Inlet Not Illustrated BS-B2384GS
...
BOTTLE, Oil, Pump Optional Accessories Not Illustrated BS-6033
...
PUMP SAVER Optional Accessories Not Illustrated BS-6039
...
FILTER, Inlet Bag of 10 Optional Accessories Not Illustrated BS-186452GS
...
...
...
