Briggs & Stratton 020209-0 - 3,000 PSI Troy-Bilt

Model: 020209-0 - 3,000 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

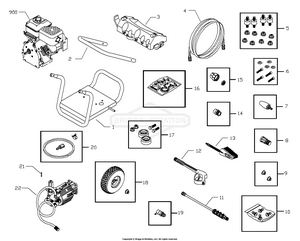

Main Unit

...
...
1
BASE BS-P190156GS
...
2
HANDLE BS-P187602GS
...
3
BILLBOARD BS-187606GS
...
4
HOSE-PRESSURE BS-206192GS
...
5
KIT, Engine Mounting Hardware BS-192134GS
...
6
KIT, Pump Mounting Hardware BS-192131GS
...
7
NOZZLE,Turbo BS-194236CGS
...
8
ADPTR, BAYONET AL-8 BS-B1051GS
...
9
PUSHNUT BS-194062GS
...
10
KIT, Spray Tips BS-B5646GS
...
11
ASSY, Extension BS-192199GS
...
12
GUN BS-B1862BGS
...
13
BRUSH, Utility BS-88185GS
...
14
CONNECTOR, Garden Hose BS-95457GS
...
15
KIT, Inlet, Hose, Grdn, Srv BS-194004GS
...
16
KIT, HNDL, FSTNNG, SRV BS-191429GS
...
17
KIT,Vibration Mount BS-192553GS
...
18
KIT,Wheel BS-192526GS
...
19
VALVE, Thermal Relief BS-208673GS
...
20
KIT, Chem Hose & Filter BS-192796GS
...
21
KEY BS-23139DGS
...
22
Assy, Pump (see "Pump") BS-202005GS
...
900
ENGINE BS-~NSP
...
--
MANUAL, Owner's Not illustrated BS-194172GS
...
--
MANUAL, Engine Not illustrated BS-MS6737
...
--
KIT, Decals Not illustrated BS-194421GS
...
--
BOTTLE, Oil Not illustrated BS-100005

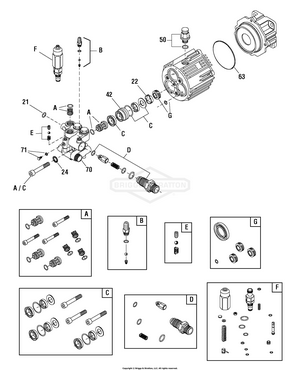

Pump

...
...
21
O-RING BS-194434GS
...
22
SPACER BS-190639GS
...
24
WASHER BS-190640GS
...
42
PISTON, Guide BS-190646GS
...
50
VENT CAP, with O-Ring BS-191441GS
...
63
O-RING BS-194435GS
...
70
PUMP HEAD BS-190654GS
...
71
GRUB SCREW & WASHER BS-190655GS
...
A
KIT, CHECK VALVE Service kit and includes all parts shown within the box. BS-190657GS
...
B
KIT, CHEMICAL INJECT Service kit and includes all parts shown within the box. BS-192914GS
...
C
KIT, Water Seal Service kit and includes all parts shown within the box. BS-190660GS
...
D
KIT, INJECTOR Service kit and includes all parts shown within the box. BS-194426GS
...
E
KIT, BALL & SPRING Service kit and includes all parts shown within the box. BS-194427GS
...
F
KIT, UNLOADER Service kit and includes all parts shown within the box. BS-193126GS
...
G
KIT, Oil Seal BS-194425GS
...
--
OIL BOTTLE (Not Illustrated) BS-190656GS
...
--
FILTER, Inlet (Not Illustrated) BS-B2384GS
...
...
...
