Briggs & Stratton 020208-0 - 2,500 PSI Troy-Bilt

Model: 020208-0 - 2,500 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

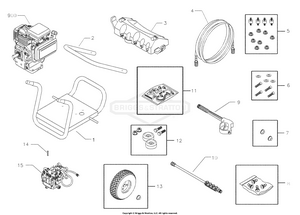

Main Unit

...
...
1
BASE BS-B190156GS
...
2
HANDLE BS-B187602GS
...
3
BILLBOARD BS-187606GS
...
4
HOSE BS-190249GS
...
5
KIT, Engine Mounting Hardware BS-192134GS
...
6
KIT, Pump Mounting Hardware BS-192131GS
...
7
PUSHNUT BS-194062GS
...
8
KIT, Nozzle BS-197291GS
...
9
GUN BS-B1862GS
...
10
ASSY, Extension BS-192199GS
...
11
KIT, HNDL, FSTNNG, SRV BS-191429GS
...
12
KIT,Vibration Mount BS-192553GS
...
13
KIT,Wheel BS-192526GS
...
14
KEY BS-23139DGS
...
15
ASSY, Pump (see "Pump) illustration and part list BS-194106GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Items Not Illustrated BS-194018GS
...
KIT, Decals Items Not Illustrated BS-194260GS
...
BOTTLE, Oil Items Not Illustrated BS-100005

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190673GS
...
45
PIN BS-190578GS
...
62
CAP BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (not shown) BS-190585GS
...
A
KIT, UNLOADER Service kits and include all parts shown within the box. BS-190594GS
...
B
KIT,WATER INLET Service kits and include all parts shown within the box. BS-190670GS
...
C
KIT, BREATHER TUBE Service kits and include all parts shown within the box. BS-190669GS
...
D
KIT, HEAD BRASS Service kits and include all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kits and include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits and include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits and include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits and include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits and include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits and include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits and include all parts shown within the box. BS-193972GS
...
...
...
