product name

Briggs & Stratton 020204-0 - 3,000 PSI Craftsman

Model: 020204-0 - 3,000 PSI

Save
 Part Not Listed?Part Not Listed?
product name

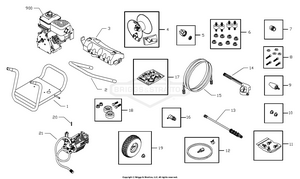

Main Unit

...
...
CRAFTSMAN 3000 PSI Pressure Washer 580.753000 BS-580753000
...
1
BASE BS-M190156GS
...
2
HANDLE BS-M187602GS
...
3
BILLBOARD BS-187606GS
...
4
ASSY, Complete Hose Reel Kit BS-192648GS
...
5
KIT, Inlet, Hose, Grdn, Srv BS-194004GS
...
6
KIT, Engine Mounting Hardware BS-192134GS
...
7
ADAPTER, Hose BS-95457GS
...
8
KIT, Pump Mounting Hardware BS-192131GS
...
9
NOZZLE, Turbo BS-194236CGS
...
10
PUSHNUT BS-194062GS
...
11
KIT, Spray Tips BS-B5646GS
...
12
KIT, Chem Hose & Filter BS-192796GS
...
13
ASSY, Extension BS-192199GS
...
14
GUN BS-B1862BGS
...
15
HOSE BS-B5167GS
...
16
VALVE, Thermal Relief BS-208673GS
...
17
KIT, HNDL, FSTNNG, SRV BS-191429GS
...
18
KIT, Vibration Mount BS-192553GS
...
19
KIT, Wheel BS-192526GS
...
20
KEY BS-23139DGS
...
21
Assy, Pump (See "Pump") BS-202005GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not illustrated BS-194190GS
...
KIT, Decals Not illustrated BS-194420GS
...
OIL, Bottle Not illustrated BS-AB3061BGS
...
Garden Hose Quick Connect Optional accessory; Not illustrated BS-7175187GS
...
KIT,QC,METRIC Optional accessory; Not illustrated BS-312981GS
...
Rotating Brush Kit Optional accessory; Not illustrated BS-7175199GS
...
HOSE, 4000PSI, 3/8" x 25' Optional accessory; Not illustrated BS-7175115GS
...
O Ring Repair Kit Optional accessory; Not illustrated BS-7175116GS
...
Turbo Nozzle Optional accessory; Not illustrated BS-7174400GS
...
HOSE, 4000PSI, 3/8" x 25' Optional accessory; Not illustrated BS-7174401GS
...
KIT, Hose Reel Optional accessory; Not illustrated BS-192648GS
...
ACC, KIT, PUMP SAVER, 10.7-OZ B&S, EN/FR Optional accessory; Not illustrated BS-6151
...
Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner Optional accessory; Not illustrated BS-6159
...
CHEM-WASH DECK Optional accessory; Not illustrated BS-100524GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional accessory; Not illustrated BS-6160
...
CHEM, WASH, DEGREASER, HD, 32 OZ Optional accessory; Not illustrated BS-100526GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional accessory; Not illustrated BS-6160

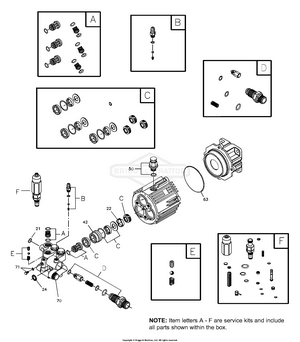

Pump

...
...
CRAFTSMAN 3000 PSI Pressure Washer 580.753000 BS-580753000
...
21
O-RING BS-194434GS
...
22
SPACER BS-190639GS
...
24
WASHER BS-190640GS
...
42
PISTON, Guide BS-190646GS
...
50
VENT CAP, with O-Ring BS-191441GS
...
63
O-RING BS-194435GS
...
70
PUMP HEAD BS-190654GS
...
71
GRUB SCREW & WASHER BS-190655GS
...
72
OIL BOTTLE BS-190656GS
...
A
KIT, CHECK VALVE Service kit includes all parts shown within the box. BS-190657GS
...
B
KIT, CHEMICAL INJECT Service kit includes all parts shown within the box. BS-192914GS
...
C
KIT, SEAL OIL Service kit includes all parts shown within the box. BS-194425GS
...
D
KIT, INJECTOR Service kit includes all parts shown within the box. BS-194426GS
...
E
KIT, BALL & SPRING Service kit includes all parts shown within the box. BS-194427GS
...
F
KIT, UNLOADER Service kit includes all parts shown within the box. BS-193126GS
...
...
...
