Briggs & Stratton 020203-0 - 2,800 PSI Craftsman CS

Model: 020203-0 - 2,800 PSI CS

Save
 Part Not Listed?Part Not Listed?
product name

Main Unit

...
...
1
ASSY, Base BS-194665GS
...
2
HANDLE BS-M194122GS
...
3
ASSY, Billboard BS-194224GS
...
4
KIT, Assy, Chemical Tank w/Clips BS-205366GS
...
5
WIREFORM BS-194206GS
...
6
KIT, Pump Mounting Hardware BS-192131GS
...
7
KIT, Engine Mounting Hardware BS-192133GS
...
8
KIT, Handle Connector BS-B2203GS
...
9
KIT, Hook BS-194264GS
...
10
KIT, Hook BS-192309GS
...
11
E-RING BS-703977
...
12
VALVE, Thermal Relief BS-208673GS
...
13
TAGS, 1 sheet Chemical Tank BS-192961GS
...
14
KIT, Concentrate, 3 Bottle BS-192149GS
...
15
KIT, Knob, 4-Way Valve BS-194063GS
...
16
KIT, Subassy, Valve 4-way BS-194064GS
...
17
KIT, Wireform Hardware BS-194627GS
...
18
KIT, Chem Tank Hrdwr(4 tank system order 2 each) BS-194664GS
...
19
KIT, Hose, Subassy. BS-194074GS
...
20
KIT, Hose, Subassy. BS-194074GS
...
21
KIT, Vibration Mount BS-192310GS
...
22
KIT, Spray Tips BS-B5646GS
...
23
KIT, Caps, Chemical Containers BS-194076GS
...
24
ASSY, Hose Reel BS-192648GS
...
25
ASSY, Wand w/Spray Tip Holder BS-192199GS
...
26
GUN BS-190049GS
...
27
HOSE-PRESSURE BS-206192GS
...
28
KEY BS-23139DGS
...
29
Assy, Pump, Complete (see "Pump" illustration and parts list) BS-206376GS
...
30
KIT, Wheel BS-192317GS
...
900
ENGINE BS-~NSP
...
BOTTLE, Oil Items Not Illustrated BS-AB3061BGS
...
MANUAL, Owners Items Not Illustrated BS-194126GS
...
KIT, Decal Service Items Not Illustrated BS-194652GS
...
Garden Hose Quick Connect Optional Accessories Not Illustrated BS-7175187GS
...
KIT,QC,METRIC Optional Accessories Not Illustrated BS-312981GS
...
Rotating Brush Kit Optional Accessories Not Illustrated BS-7175199GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessories Not Illustrated BS-7175115GS
...
O Ring Repair Kit Optional Accessories Not Illustrated BS-7175116GS
...
Turbo Nozzle Optional Accessories Not Illustrated BS-7174400GS
...
HOSE, 4000PSI, 3/8" x 25' Optional Accessories Not Illustrated BS-7174401GS
...
ACC, KIT, PUMP SAVER, 10.7-OZ B&S, EN/FR Optional Accessories Not Illustrated BS-6151
...
Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner Optional Accessories Not Illustrated BS-6159
...
CHEM-WASH DECK Optional Accessories Not Illustrated BS-100524GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessories Not Illustrated BS-6160
...
CHEM, WASH, DEGREASER, HD, 32 OZ Optional Accessories Not Illustrated BS-100526GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessories Not Illustrated BS-6160
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory - Not Included) BS-6059
...
--
PERFECT MIX CONCRETE BRICK & TILE CLEANER (Optional Accessory - Not Included) BS-6060

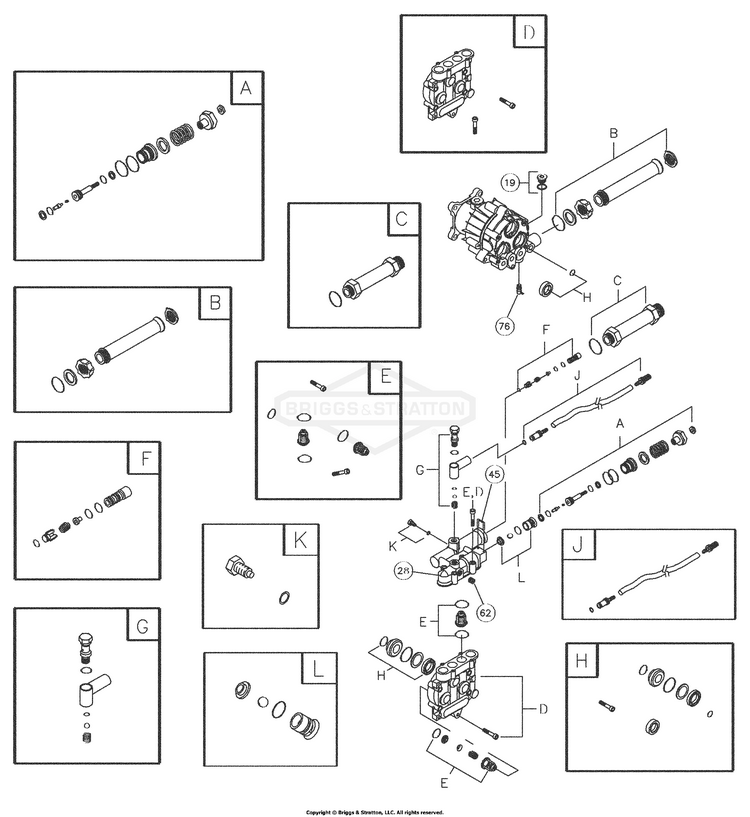

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (not shown) BS-190585GS
...
A
KIT, UNLOADER Service kits and include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ANODIZED Service kits and include all parts shown within the box. BS-190588GS
...
C
KIT, OUTLET, ANODIZED Service kits and include all parts shown within the box. BS-190589GS
...
D
KIT, HEAD BRASS Service kits and include all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kits and include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits and include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits and include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits and include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits and include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits and include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits and include all parts shown within the box. BS-193972GS
...
...
...
