product name

Bissell BGCOMP9 Campacto 9 Canister Vacuums

Model: BGCOMP9

Save
 Part Not Listed?Part Not Listed?
product name

Bissell BGCOMP9

...
...
1
Switch 6P Black BC-2037879
...
2
Top Cover C09 Green BC-2037874
...
3
Felt Top Compacto C9 BC-79-0188-2
...
4
Screw 5 X 16 BC-73-0002-3
...
5
Felt Motorbase Round C9 BC-79-0187-1
...
6
Motor Brushes BC-21-0100-1
...
7
25 Pack Disposable Filter Bags BC-BGPK25COMP9DW
...
8
Screw Pt Wn1412Kb60X22 Comp. BC-73-0005-0
...
9
Paper Bag Holder Abs BC-77-0009-19
...
10
Can C09 Grey BC-2037872
...
11
Stor. Clip/Fixt. Right Bl.C6/9 BC-77-0020-0
...
12
Can Connector Black C06/9 BC-77-0011-0
...
13
Insert Dupro BC-70-0016-19
...
14
Castor Double 50Mm Rubber/B/Ny BC-2037870
...
15
Cable Restrain BC-2037873
...
16
Switch 4P Light Green 0/I BC-04-0009-30
...
17
Carry Handle C09 Grey BC-77-0001-32
...
18
Cable Usa 3P/1-Yellow-15Mtr-A.C. BC-2037866
...
19
Recept Inlet 2P For C6/9/Mjp BC-75-0002-0
...
20
Power Control High /Low 115V Heavy BC-2037875
...
21A
Screw Pt Wn1412Kb60X22 Comp. BC-73-0005-0
...
21B
Washer, Plain, M4 Steel BC-00-0095-0
...
22
Clip Filter Casette C09 BC-73-0006-0
...
23
Cable Hook Black New BC-2037876
...
24
Filter Cassette C06/9 Black BC-2037868
...
25
Cable Clamp Black BC-71-0000-0
...
26
Gasket Filter Casssette Pu C9 BC-79-0184-10
...
27
Foam Side Form Compacto C9 BC-79-0006-1
...
28
Motor Cover C09 Grey BC-77-0003-32
...
28
Motorcover Assembly C09 Grey BC-P-77-0003-32
...
29
Pvc Bumper C09/6 Grey (P/Meter) BC-2037878
...
30
Gasket Flat 12 X 3 (P/Meter) BC-00.0087.2/1
...
31
Motor Suspend Rubber C9 BC-79-0010-0
...
32
Motor D2 1300W 120V Vpd Ametek BC-2037865
...
33
Motor Gasket New BC-20-0073-3
...
34
O-Ring 5,5Mm Motor Housing C09 BC-73-0001-01
...
35
Motor Housing C09 Black BC-77-0005-0
...
36
Cartridge Filter C09 Black BC-74-0168-0
...
37
Nut M5 Nylon BC-04-0048-0
...
38
Clip Nylon BC-2037871
...
39
Screw Countersunk M5X12 BC-25-0033-0
...
40
Crevice Tool 32Mm BC-02-0032-5
...
41
Storage Clip/Fixt Left Bl.C6/9 BC-77-0021-0
...
42
Shimring 0 26 C9/6 BC-78-0008-1
...
43
Rear Castor Bearing Black C9/6 BC-77-0008-0
...
44
Rear Castor Gr.Non Marking C9/6 BC-77-0007-0
...
45
Sockets Double Castor BC-25-0020-0
...
46
Power Cable Usa 3P/1-Yellow-15Mtr-A.C. (Not Shown) BC-03-0026-15

Bissell BGCOMP9

...
...
47
Bend End 32Mm Plas W/Air BC-02-0029-210R
...
48
Wand 32Mm Alu+Ring Tele BC-2037863
...
49
Upholstery Tool 32Mm + Bristle BC-2037860
...
50
Connector Dupro 9 BC-70-0017-1
...
51
Plumeau Round 32Mm BC-02-0040-5
...
52

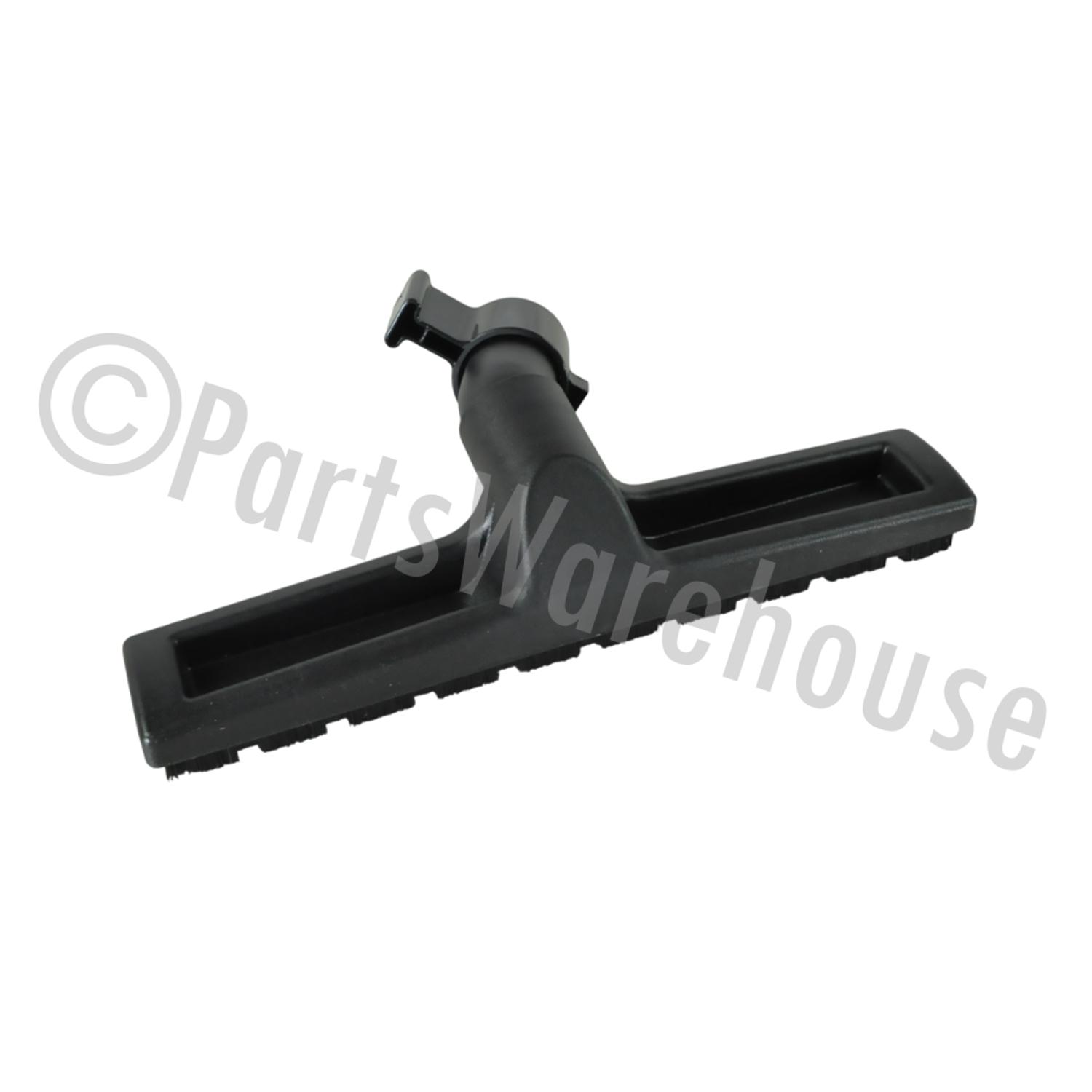

Floor Tool D300 Dg 32Mm BC-22-9045-6D
...
53
Tool Caddy (Not Shown) BC-2037869
...
54
8 Foot Hose With Elbow To Attach Wand BC-2037864
...
55

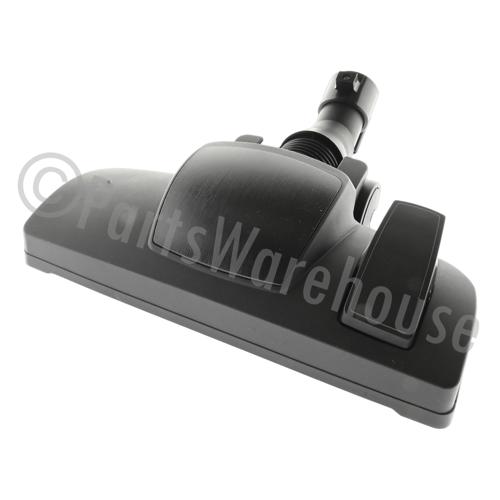

Floor Tool Rd294 BC-22-9045-12
...
...
...
