product name

9898-0 Briggs and Stratton Portable Generator 4,000 Watt

Model: 9898-0

Save
 Part Not Listed?Part Not Listed?
product name

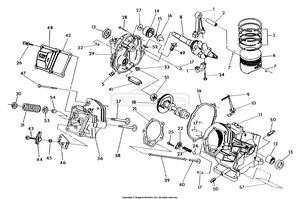

88588 Drawing Repair Parts

...
...
1
Connector Rod and Cap Assembly BS-78621
...
2
Piston Pin BS-76389
...
3
Piston Ring Set [standard size] BS-88411
...
4
1/4" NPT Magnetic Pipe Plug BS-81694
...
5
1/8" NPT Pipe Plug BS-72683
...
6
75mm Dia. Piston BS-88057
...
7
(C) BELT SHIELD WELD BS-7047947YP
...
8
Crankshaft Assembly with Gear BS-83337
...
9
Governor Arm "R" Pin BS-78658
...
10
Governor Arm BS-76354
...
11
Crankcase Sub-assembly BS-89213A
...
12
Sleeve Bearing BS-76349
...
13
Crankshaft Oil Seal BS-81695
...
14
Governor Gear Assembly BS-76359
...
15
Governor Retainer ["c" Ring] BS-78645
...
16
Governor Spool BS-76365
...
17
12mm I.D. Dowel Sleeve BS-78699B
...
18
Camshaft Assembly BS-83335
...
19
Crankcase Flange Gasket BS-89096
...
21
Cylinder Head Gasket BS-88058
...
22
Oil Pressure Spring Retainer BS-78691
...
23
Oil Pressure Spring BS-76367
...
24
Oil Pressure Bolt BS-76362
...
25
M5 Thread-forming Bolt BS-78692
...
26
M6-1.0 x 12mm Screw and Lock Washer BS-78606
...
27
Thrust Washer BS-76361
...
28
Flanged Hex Head Capscrew BS-89230
...
29
Gear Cover Sub-assembly BS-88420A
...
30
Valve Spring Retainer Valve BS-86293
...
31
Valve Spring BS-88401
...
32
Dia. 10 x 20 Dowel Pin BS-88590
...
33
Inner Gerotor BS-83152
...
34
Connecting Rod Bolt BS-76381
...
35
Governor Arm Washer BS-78659
...
36
Cylinder Head Casting Assembly BS-88404B
...
37
Exhaust Valve BS-90082
...
38
Muffler BS-93259
...
39
Push Rod BS-88396A
...
40
Tappet BS-83235
...
41
Oil Pickup Assembly BS-80336
...
42
Rocker Cover Gasket BS-88397
...
43
Ball Pivot Stud BS-77161
...
44
Rocker Arm BS-77160
...
45
JAM Nut [Rocker Arm] BS-76307
...
46
Push Rod Guide Plate BS-88403
...
47
M8 x 52mm Head Bolt BS-77168
...
48
Rocker Cover Breather Assembly BS-88412
...
49
Oil Fill Plug BS-76329
...
50
BELT,TRACTION DRIVE BS-7072657YP
...
51
Outer Gerotor BS-83153
...
52
"O" Ring [17.8" I.D. x 2.4" Thick] BS-86254
...
53
Wear-valve Spring Washer BS-84186
...
54
Intake Valve Seal BS-88156
...
57
Decal - Serial Number BS-83773F

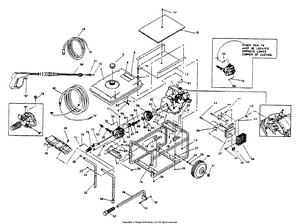

94827 Drawing Repair Parts

...
...
1
7.8 HP ENGINE BS-90508
...
3
SUPPORT, Engine BS-B84021GS
...
4
KIT, TANK, FUEL, RETRO BS-195617GS
...
5
CAP, Fuel Tank BS-846987
...
6
PULLEY CATCHER HZT/ BS-7078298YP
...
7
Kit, Valve BS-192980GS
...
8
Starting Instructions Decal BS-96404
...
9
Danger Decal BS-96405
...
10
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
11
GROMMET, TANK BS-83465GS
...
12
NUT, FLANGE LOCK - M6 BS-77395GS
...
13
HTSHLD, PW BS-87840GS
...
14
CLIP, INSULATION BS-85000GS
...
15
INSULATION BS-84687GS
...
16
CRDL BS-95203GS
...
17
MOUNT, Vibration BS-84508GS
...
18
SCREW BS-70644GS
...
19
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
20
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
21
Pump Support Bracket BS-95635
...
22
SCREW BS-38750GS
...
24
WIREFORM, HLDR, WAND BS-87985GS
...
25
SCREW BS-313085GS
...
26
Wire Basket BS-87836
...
27
AXLE, 12.7 X 106, ZNC PLT BS-93728AGS
...
28
JAM NUT, Lock 5/8" - 18 BS-94222QGS
...
29
WASHER, Flat BS-49808GS
...
30
ASSY., Wheel & Tire 10" BS-88521GS
...
31
PUSHNUT BS-194062GS
...
32
LEG, SPPRT BS-95189GS
...
33
SCREW BS-39287GS
...
34
Washer, .34 x 1 x 10 BS-50190GS
...
35
CAP PLUG, Tubing BS-46476GS
...
36
SCREW BS-692328
...
37
KIT, MFFLR & BRCKT, SRV BS-195002GS
...
38
Wire Muffler Guard BS-89712
...
39
BRCKT, MFFLR, GN160 BS-90300GS
...
40
Muffler Support Bracket BS-92535
...
41
M8-1.25 x 20mm Capscrew BS-40976
...
42
GSKT, EXHAUST BS-80314GS
...
43
M5 x 10mm Screw BS-90299
...
44
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
45
SCREEN, Spark Arrest BS-83083GS
...
46
Guide Handle BS-95194
...
47
GRIP, HNDL BS-77584GS
...
48
3/8" I.D. Hose Assembly BS-89634
...
49
ASSY, HOSE, CHEM INJ BS-96168GS
...
50
GUN, 2500PSI, 3/8, M22, MV BS-95567GS
...
51
NZZL, HI-LO, 1.15, M22, MV BS-95587BGS
...
52
Garden Hose Quick Connect BS-7175187GS
...
53
Garden Hose Quick Connect BS-7175187GS
...
54
Pump Head Assembly BS-95319C
...
55
O-RING, Crankcase BS-93790GS
...
56
SHOE, Piston Pivot BS-94944GS
...
57
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
58
3.0 GPM Axial Cam BS-96439
...
59
ADPTR, ENG, MCHND BS-96430AGS
...
60
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
62
ADPTR, ENG SHFT, TAPER BS-95165GS
...
63
GSKT, ADPTR, ENG BS-93871GS
...
64
CAPSCREW, Socket Head BS-23707GS
...
65
WASHER, Lock BS-92479GS
...
66
SCREW BS-40945GS
...
67
PLATE, SPACER, ENG D.1.62 BS-95441GS
...
68
WSHR, BELV, 16 X 2.7 BS-94738GS
...
69
M16-1.5 JAM Nut BS-93887
...
70
M6 Ribbed Lock Washer BS-93873
...
71
Oil Fill Cap/Breather BS-95454
...
72
NUT-M6 FLANGE BS-52857GS
...
73
SCREW BS-690352
...
74
SCREW BS-40945GS
...
75
M6 Ribbed Lock Washer BS-93873
...
76
Preset Unloader Assembly BS-96581F
...
77
SCREW BS-690904
...
78
GAUGE, 5000PSI PW, 1/8 IN [Optional] BS-94197GS
...
79
SCREW BS-51767GS
...
81
Hose BS-82580A
...
82
CLAMP, Hose 13/32" BS-48031GGS
...
Owner's Manual [Not Shown] BS-94826

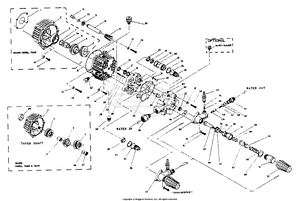

95087 Drawing Repair Parts

...
...
1
GSKT, ADPTR, ENG BS-93871GS
...
2
ADPTR, ENG, MCHND BS-96430AGS
...
3
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
5
ADPTR, ENG SHFT, TAPER BS-95165GS
...
6
AXIAL CAM, 3.0 GPM BS-96439
...
7
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
8
O-RING, Crankcase BS-93790GS
...
9
RETAINER, SPRING, PSTN BS-95386GS
...
10
PISTON, D15 S.S. BS-95217
...
11
SPRING, Piston Return BS-96400GS
...
12
WASHER, Lock BS-92479GS
...
13
LOCKWASHER, M6 - RIBBED BS-93873
...
14
SCREW BS-40945GS
...
15
SCREW BS-691664
...
16
SEAL, Oil Piston BS-93680GS
...
17
SPACER, PILOT BS-93668GS
...
18
SEAL, PSTN, U-CUP BS-93667GS
...
19
RING, Bearing BS-96015GS
...
20
OIL FlLL/BREATHER BS-95454
...
21
TOWER, HI-PRESS PORT BS-95895GS
...
22
SEAL, High Pressure BS-96053GS
...
23
RING, BACKUP, HYTRILE BS-95504GS
...
24
O-RING, 0.67 X 0.88 X 0.10 BS-95503GS
...
25
ASSY, VLV, CHK, PW BS-96005GS
...
26
SUPPORT, CHK VALVE SEAT BS-95896
...
27
CAPSCREW, Socket Head BS-23707GS
...
28
SPRING, Thermal By-Pass BS-93652GS
...
29
PISTON, Thermal By-Pass BS-95416GS
...
30
PLATE, SPACER BS-94402
...
31
O-RING, 4.5 X 8 X 1.8 BS-93673GS
...
32
PPHMS, M5-0.8 X 20 BS-93678GS
...
33
GASKET, HEAD BS-93645
...
34
ACTUATOR, Thermal By-Pass BS-93644GS
...
35
Conn, Gdn Hse BS-95320GS
...
36
HEAD, CYLINDER - BRASS BS-95138
...
37
ASSY, SEAT/O-RING BS-95382GS
...
38
TERMINAL, Ground BS-691084
...
39
SCREW BS-690346
...
40
ASSY, SPINDLE, UNLDR BS-95373GS
...
41
GUIDE, PSTN, UNLDR BS-95367GS
...
42
O-RING, 14 X 1.8 BS-95372GS
...
43
FTG, CHEM INJ BS-95378GS
...
44
ADPTR, OUT, PRSSR, HI BS-95377GS
...
45
O-RING, 13 X 16 X 1.8 BS-93788GS
...
46
O-RING, 16 X 19 X 1.8 BS-93787GS
...
47
SPRING, RETURN, SHUTL BS-95376GS
...
48
PISTON, HIGH PRESS. OUTLET BS-95374
...
49
O-RING, 4.3 X 2.4 BS-95375GS
...
50
SPRING, PRESS. ADJUST BS-95384
...
51
ADPTR, PRSSR ADJ, HI BS-95364BGS
...
52
KNOB, PRSSR ADJ, RED BS-95381BGS
...
53
PLUG, 1/8" - 27 BS-96137GS
...
54
SCREW BS-690904
...
55
BODY, PRESS. RELIEF VALVE BS-95216
...
56
RING, BACKUP, 8.3 X 11 BS-95369GS
...
57
PISTON, UNLOADER BS-95368
...
58
O-RING, 7.6 X 1.8 BS-95370GS
...
59
SPPRT, SPRING BS-95363GS
...
60
O-RING, 26.6 ID X 2.6 BS-96069GS
...
61
RING, BACK-UP (PARKER #8-121) BS-95606
...
62
GAUGE, OIL LEVEL, SIGHT BS-95453GS
...
63
FTG, 3/8, MAGNET, PIPE PLUG BS-57163GS
...
64
SPPRT, O-RING, PSTN BS-95371GS
...
65
SPRING, INJ, CHEM BS-95380GS
...
66
WSHR, BELV, 16 X 2.7 BS-94738GS
...
67
NUT, JAM - M16-1.5 BS-93887
...
68
RING, LOCKING M18 X 1 BS-95366GS
...
69
PLATE, SPACER, ENG D.1.62 BS-95441GS
...
71
SHOE, Piston Pivot BS-94944GS
...
72
RING, "C" RETAINER BS-94284
...
73
SCREW BS-690312
...
74
BALL, #5.56 (7/32") BS-95379
...
75
STUD BS-691120
...
76
RING, BACKUP, 1.2 X 6.7 BS-93657GS
...
77
ASSEMBLY, UNLOADER BS-95212B
...
78
SCREW BS-51767GS
...
...
...
