9879-0 Briggs and Stratton Portable Generator 1,850 Watt

Model: 9879-0

Save
 Part Not Listed?Part Not Listed?
product name

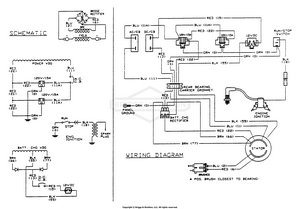

Electrical Data

...

No Parts Available for this Schematic

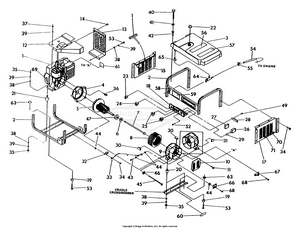

Generator

...
...
1
PIPE, Oil BS-690307
...
2
CRDL, HOME/AWAY BS-95158GS
...
3
TANK, Fuel (No Longer Available) BS-NLA - 93941
...
4
HSNG, ENG, FML BS-66365FGS
...
5
ASSY, RTR, 1400, W/PLSTC FAN BS-93705GGS
...
6
WASHER, Flat M8 x 20 Special BS-67451
...
7
HHCS, 5/16-24 X 5 1/2 BS-75444GS
...
8
ASSY, STATOR, 1400DPE35, 10A-BC, H/A BS-93706GGS
...
9
SCREW BS-691044
...
10
COVER, Rear Bearing Carrier BS-67025
...
11
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
12
Heat shield BS-93628
...
13
GUARD, MFFLR, H/A BS-93638GS
...
14
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
15
SCREW BS-691148
...
17
PNL, ALTERNATOR END BS-95159GS
...
18
SCREW BS-93702
...
19
MOUNT, Rubber Donut BS-87841GS
...
20
MNT, VIBR, GEN 1.25OD BS-66443BGS
...
21
MOUNT,Vibration BS-85651GS
...
22
CAP, FUEL, H/A BS-94133GS
...
23
SWITCH, Run - Stop BS-78653GS
...
24
OUTLET, 10A, 12VDC BS-90418GS
...
25
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
26
BREAKER, Circuit BS-75207DGS
...
27
BREAKER, Circuit BS-83514GS
...
28
BAR, Retaining BS-93857GS
...
29
CAP, Breaker, Circuit BS-84198GS
...
30
GROMMET, RUBBER BS-67022GS
...
31
GROMMET, Plastic RBC BS-84242GS
...
32
LUG 13/64 1-6 TO 14 BS-25433
...
33
WIRE, Ground BS-195373GS
...
34
SCREW BS-313085GS
...
35
SKID PLATE BS-5045771B
...
36
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
37
NUT, 5/16 - 18 BS-22259GS
...
39
WASHER, Lock BS-22129GS
...
40
CAPSCR., HEX HD.-M6 x 35MM BLACK BS-79816
...
41
WSHR, SPCL, BLK BS-78830GS
...
42
GROMMET, TANK BS-83465GS
...
43
SCREW, M6 x 12 BS-43116GS
...
45
HHCS, M6-1.0 X 60 BS-74095GS
...
46
CAP BS-5022097SM
...
47
BEARING BS-65791GS
...
49
SCREW, Phillips, Head 3.5 x 18 BS-84543CGS
...
52
L-BRACKET BS-94360
...
53
HHCS, M8 x 20 BS-39253GS
...
54
HOSE, 1/4" x 21" I.D. SAE-30R7 BS-30340
...
55
CLAMP, Fuel Hose - 1/4" BS-48031C
...
56
DECAL, Danger, French BS-194984GS
...
57
SCREW BS-690341
...
58
DECAL, Fuel Shut - Off BS-73054
...
59
SCREW BS-94134
...
60
DECAL, GRD LUG BS-67210AGS
...
61
DECAL, DATA, GNRC GEN BS-78817GS
...
63
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
64
Kit, Valve BS-192980GS
...
65
Kit, Valve BS-192980GS
...
66
RECTIFIER, BATTERY CHARGE BS-65795GS
...
67
Brush Holder and Bridge Rectifier Assembly BS-91825
...
68
SCREW BS-66849AGS
...
69
NAME PLATE - CSA BS-25717
...
70
DECAL, Neutral Ground BS-74728GS
...
71
DECAL, Ground, French BS-76247GS

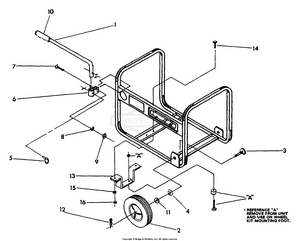

Wheel Kit

...
...
1
Handle Bar BS-94463
...
2
WHEEL BS-197061GS
...
3
STUD,Axle BS-93728GS
...
4
JAM NUT, Lock 5/8" - 18 BS-94222QGS
...
5
PIN, DETENT, 0.25 BS-94461GS
...
6
Handle Bar Mount BS-94462
...
7
HHCS, 1/4-20 X 1-1/4 BS-22203GS
...
8
CAP BS-5022097SM
...
9
1/4" Hex Nut BS-22127
...
10
GRIP, Handle BS-75928GS
...
11
WASHER, Flat BS-49808GS
...
12
PIN, 3/32 X 1.6 BS-703300
...
13
SPPRT, FOOT PAD BS-94440GS
...
14
HHCS, M8 x 20 BS-39253GS
...
15
WASHER, Lock BS-22129GS
...
16
SKID PLATE BS-5045771B
...
...
...
