9858-0 Briggs and Stratton Pressure Washer 6,000 CP Pressure Washer

Model: 9858-0

Save
 Part Not Listed?Part Not Listed?
product name

Electrical Data

...

No Parts Available for this Schematic

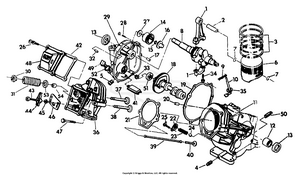

Engine

...
...
1
Connecting Rod with Cap and Bolt BS-78621
...
2
Piston Pin BS-76389
...
3
Piston Ring Set BS-78660
...
4
1/4" Magnetic Pipe Plug BS-81694
...
5
1/8" NPTF Pipe Plug BS-72683
...
6
Piston BS-76386
...
7
(C) BELT SHIELD WELD BS-7047947YP
...
8
Crankshaft Assembly w/Gear BS-81678
...
9
Governor Arm "R" Pin BS-78658
...
10
Governor Arm BS-76354
...
11
Crankcase Sub-assembly BS-88276
...
12
Sleeve Bearing BS-76349
...
13
Crankshaft Seal BS-81695
...
14
Governor Gear Assembly BS-76359
...
15
Governor Retainer ("C" ring) BS-78645
...
16
Governor Spool BS-76365
...
17
Sleeve Dowel (10" dia.) BS-78699A
...
18
Camshaft Assembly BS-83335
...
19
Crankcase Gasket BS-76350
...
20
Sleeve Dowel (12" dia.) BS-78699B
...
21
Cylinder Head Gasket BS-77165B
...
22
Oil Pressure Sprg Retainer BS-78691
...
23
Oil Pressure Spring BS-76367
...
24
Pressure Relief Ball BS-76362
...
25
M5-0.8 x 8mm Screw BS-78692
...
26
M6-1.0 x 12mm Screw BS-78606
...
27
Thrust washer BS-76361
...
28
Flanged Hex Capscrew BS-78661
...
29
Sub-assembly Gear Cover BS-88277B
...
30
Valve Spring Retainer BS-77157
...
31
Valve Spring BS-76398
...
32
10mm dia. x 20mm Dowel Pin BS-78633
...
33
Inner Gerotor BS-83152
...
34
Connecting Rod BS-76381
...
35
Governor Arm Washer BS-78659
...
36
Cylinder Head with Valve Seats and Guides BS-78623
...
37
Exhaust Valve BS-73121
...
38
CAP DUST BS-7073120YP
...
39
Push Rod BS-76392
...
40
Tappot BS-83235
...
41
Oil Pickup Assembly BS-80336
...
42
Rocker Cover Gasket BS-77167
...
43
Pivot Ball Stud BS-77161
...
44
Rocker Arm BS-77160
...
45
Jam Nut (rocker arm) BS-76307
...
46
Push Rod Guide Plate BS-77162
...
47
M8 x 50mm Head Bolt BS-77168
...
48
Rocker Cover Brthr. Assm. BS-81690
...
49
Oil Fill Plug BS-76329
...
50
BELT,TRACTION DRIVE BS-7072657YP
...
51
Outer Gerotor -- 6/5 BS-83153
...
52
O-ring - 17.8mm I.D. x 2.4mm BS-86254
...
53
Valve Spring Washer BS-84186
...
54
Valve Stem Seal BS-88155

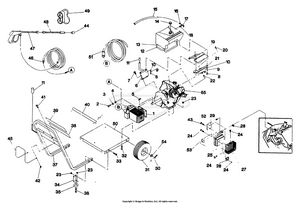

Pressure Washer & Cradle

...
...
1
PUMP, GNRL, [email protected] BS-92293GS
...
2
BOLT, HEX, 5/16-24X1 BS-703301
...
3
WASHER, Lock BS-22129GS
...
4
5/16" Flat Washer BS-92951
...
5
KEY, 3/16X1/4 HARDEND BS-89241GS
...
6
Fuel Tank Bracket BS-92416
...
7
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
8
1/4"-20 x 3/4" Hex Head Capscrew BS-26983
...
9
CAP BS-5022097SM
...
11
1/4" x 1" Vinyl Cap BS-92528
...
12
Fuel Tank Insulation BS-90562
...
13
4 Liter Fuel Tank BS-89620
...
14
CAP, Fuel Tank BS-846987
...
15
3/16" I.D. x 12-1/4" Fuel Line BS-82580E
...
16
CLAMP, Hose 13/32" BS-48031GGS
...
17
Kit, Valve BS-192980GS
...
18
Kit, Valve BS-192980GS
...
19
Fuel Tank Shield BS-89896
...
20
M8 x 35mm Screw BS-91225
...
21
LOCKWASHER-INTERNAL BS-1960547SM
...
22
3/8" I.D. Spacer (20mm long) BS-91224
...
23
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
24
M5 x 10mm Extrudite Screw BS-90299
...
25
KIT, MFFLR & BRCKT, SRV BS-195002GS
...
26
SCREEN, Spark Arrest BS-83083GS
...
27
Muffler Guard BS-89712
...
28
GSKT, EXHAUST BS-80314GS
...
29
M8 x 20mm Socket Head Capscrew BS-40976
...
30
PIN, 3/32 X 1.6 BS-703300
...
31
ASSY., Wheel & Tire 10" BS-88521GS
...
32
HHCS, M8 - 1.25 x 35 BS-39414GS
...
33
M8 x 40mm Hex Head Capscrew BS-57821
...
34
LEG, SPPRT, KIT, WHL, PW BS-92339GS
...
35
MOUNT, Rubber Donut BS-87841GS
...
36
HHCS, M8 x 20 BS-39253GS
...
37
Guide Handle BS-93512
...
38
Decal -- Starting Instructions BS-92629
...
39
Decal -- 6000CP BS-92415
...
40
Wheel Axle BS-93361A
...
41
HANDLE BS-84010594
...
42
NUT-M6 FLANGE BS-52857GS
...
43
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
44
NOZZLE, Replacement Part number indicates replacement part only. The nozzle for your pressure washer should come attached to wand) BS-92661GS
...
45
Hose Support BS-87816
...
46
High Pressure Hose (50 ft.) BS-89634
...
47
Spray Gun BS-91628
...
48
Wand BS-91031
...
49
GOGGLES BS-87815GS
...
50
Mounting Base BS-93511
...
51
TUBE, FILTER, GNRL BS-92550GS
...
52
Muffler Support Bracket BS-92535
...
53
BRCKT, MFFLR, GN160 BS-90300GS
...
54
WASHER, Flat BS-49808GS
...
55
BOLT,5/16-18X1.125 BS-704002
...
...
...
