product name

9852-0 Briggs and Stratton Pressure Washer 3,150 CP, Pressure Washer

Model: 9852-0

Save
 Part Not Listed?Part Not Listed?
product name

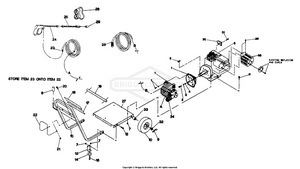

Pressure Washer & Cradle

...
...
1
Pump -- 2 GPM at 1500 PSI BS-93360
...
2
BOLT, HEX, 5/16-24X1 BS-703301
...
3
WASHER, Lock BS-22129GS
...
5
KEY, 3/16 SQ 1-7/8 BS-89314GS
...
6
Vinyl Cap - 1/4" x 1" BS-92528
...
7
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
8
3.5 HP Briggs & Stratton Engine BS-87610
...
9
PIN, 3/32 X 1.6 BS-703300
...
10
WHEEL BS-197061GS
...
11
HHCS, M8 - 1.25 x 35 BS-39414GS
...
12
M8 x 40mm Hex Head Capscrew BS-57821
...
13
LEG, SPPRT, PW, SRS BS-91092GS
...
14
MOUNT, Rubber Donut BS-87841GS
...
15
HHCS, M8 x 20 BS-39253GS
...
16
Guide Handle BS-93512
...
17
Decal -- Starting Instructions BS-92629
...
18
Decal -- 3150CP BS-93363
...
19
Wheel Axle - zinc plated BS-93361
...
20
HANDLE BS-84010594
...
21
NUT-M6 FLANGE BS-52857GS
...
22
Hose Support BS-87816
...
23
PIN, COTTER, 1/16X0.5 BS-703464
...
24
Spray Gun BS-91628
...
25
CPSCW M10-1.5 X .55 BS-7091029YP
...
26
GOGGLES BS-87815GS
...
27
Mounting Base BS-93511
...
28
ASSY, FILTER/TUBE BS-89800GS
...
29
SCREW Part number indicates replacement part only. The nozzle for your pressure washer should come attached to wand BS-690352
...
30
Wand Support Bracket BS-89602
...
31
SCREW BS-313085GS
...
32
WASHER, Flat BS-49808GS
...
33
SPACER, PLSTC, 0.53ID X 0.68 BS-92272GS
...
34
CNNCTR, GRDN HOSE, XB, BR BS-89983GS
...
35
Muffler Guard BS-93791A
...
36
Taptite Screws for Muffler BS-92789
...
...
...
